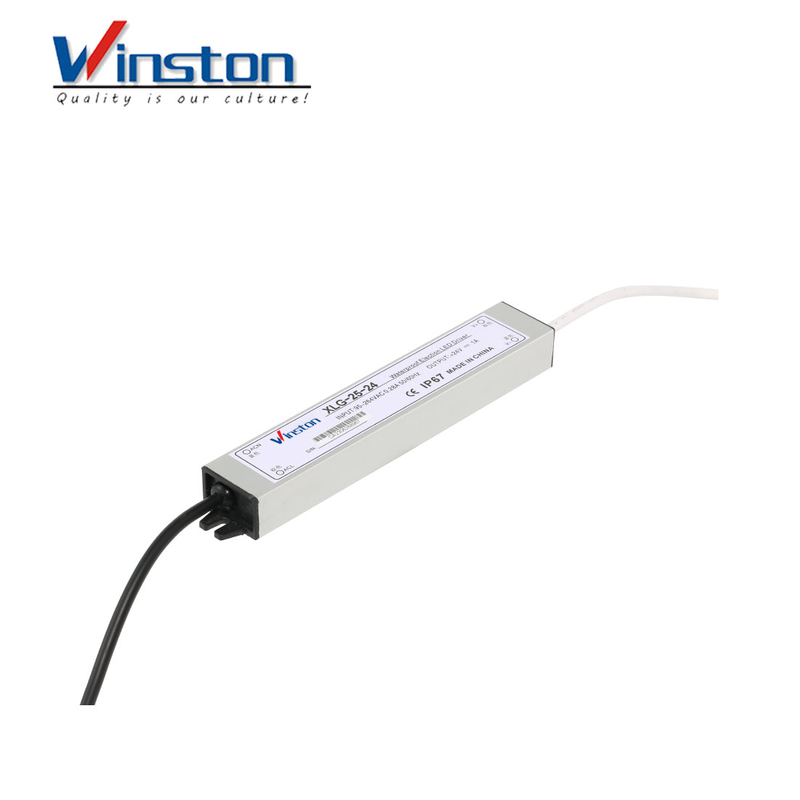

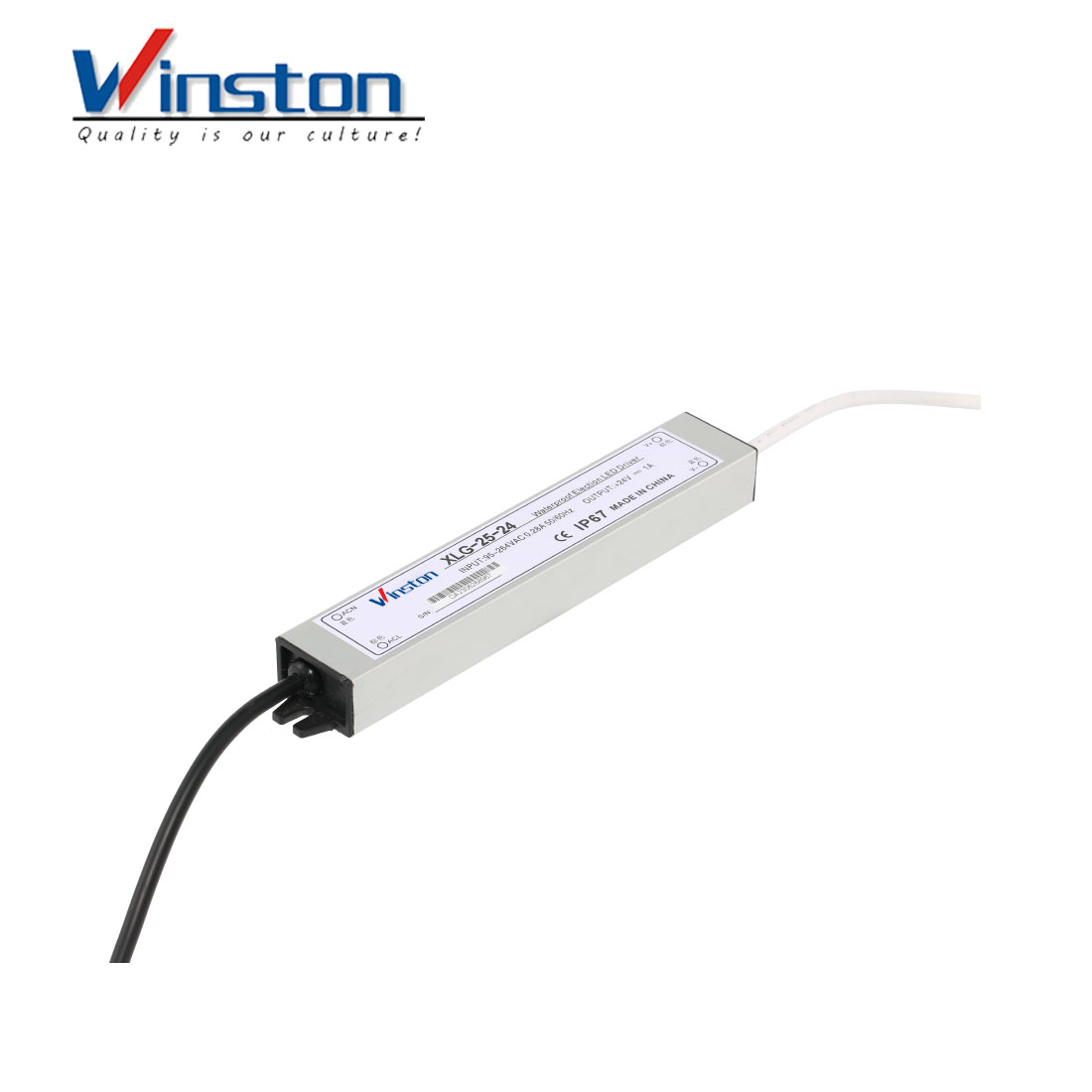

XLG-25
Winston
Single output: power 25W
Input voltage: 95～264VAC/135～373VDC
Single output: power 25W
Input voltage: 95～264VAC/135～373VDC
| Model | XLG-25-12 | XLG-25-24 | XLG-25-36 | XLG-25-48 |
| DC output voltage, current | 12V 0～2A | 24V 0～1A | 36V 0～0.7A | 48V 0～0.5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±2% | ±1% | ±0.5% | ±0.5% |
| Efficiency | 86.5% | 87.5% | 87.5% | 88.5% |
| Adjustable range for DC voltage | ±0% | ±0% | ±0% | ±0% |
| Input voltage range | 95～264VAC /135～373V DC 47～63Hz | |||
| Impact current | Cold start current 25A/230VAC | |||
| Overload protection | 95%～108% Automatically recover after troubleshooting | |||
| Short circuit protection | Protection type: Hiccup mode, automatically restored after troubleshooting | |||
| Setup, rise, hold up time | 500ms, 80ms，16ms/230VAC | |||
| Withstand voltage | I/P-O/P：1.5kV I/P-FG：1.5kV O/P-FG：0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms / 500VDC / 25℃ /70%RH | |||
| Working temperature | -20℃～+60℃ | |||

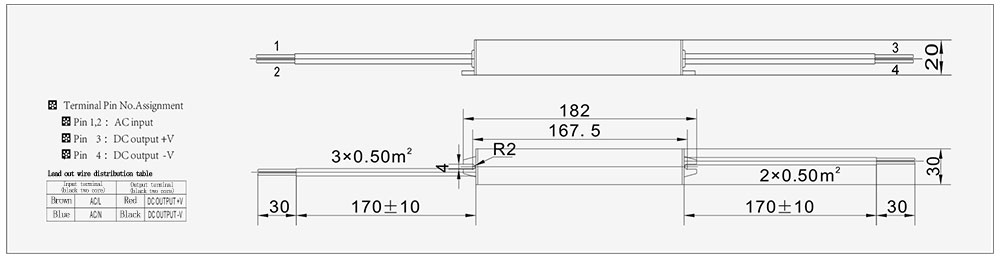

| Dimension | 182×30×20mm | |||
| Weight | 0.18kg | |||
| Packing | 42×32×26CM/100PCS/18kg | |||
