Model | | | | |
DC output voltage, current | | | | |
Wave and noise | | | | |
Inlet wire stability | | | | |
Load stability | | | | |
Efficiency | | | | |
Adjustable range for DC voltage | | | | |
Input voltage range | 180~264VAC /245~373VDC 47~63Hz |
Impact current | Cold start current 55A/230VAC |
Overload protection | 95%~ 100% of the rated output current starts overcurrent limit, recover automatically after abnormal conditions are removed |
Short circuit protection | Hiccups mode: recover automatically normal output after abnormal conditions are removed |
Setup, rise, hold up time | 500ms,50ms 24ms/230VAC(Fully Loaded) |
Withstand voltage | I/P-O/P:1.5kV IP-FG:1.5kVO/P-FG:0.5kv1minute |
lsolation resistance | I/P_O/P IP_FG O/P_FG: 100M Ohms/500VDC/25℃ 170%RH |
Working temperature | -40℃~+70℃ |

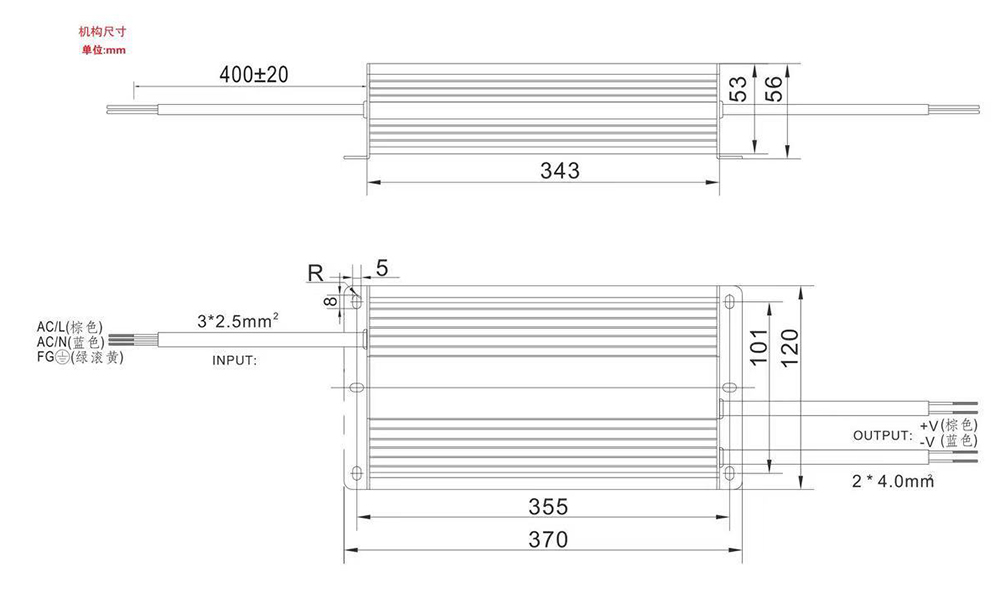

Dimension | 370x120x56mm |
Weight | 4.5kg |
Packing | 2PCS/4.5kg/11.5kg/0.033m^3 |
