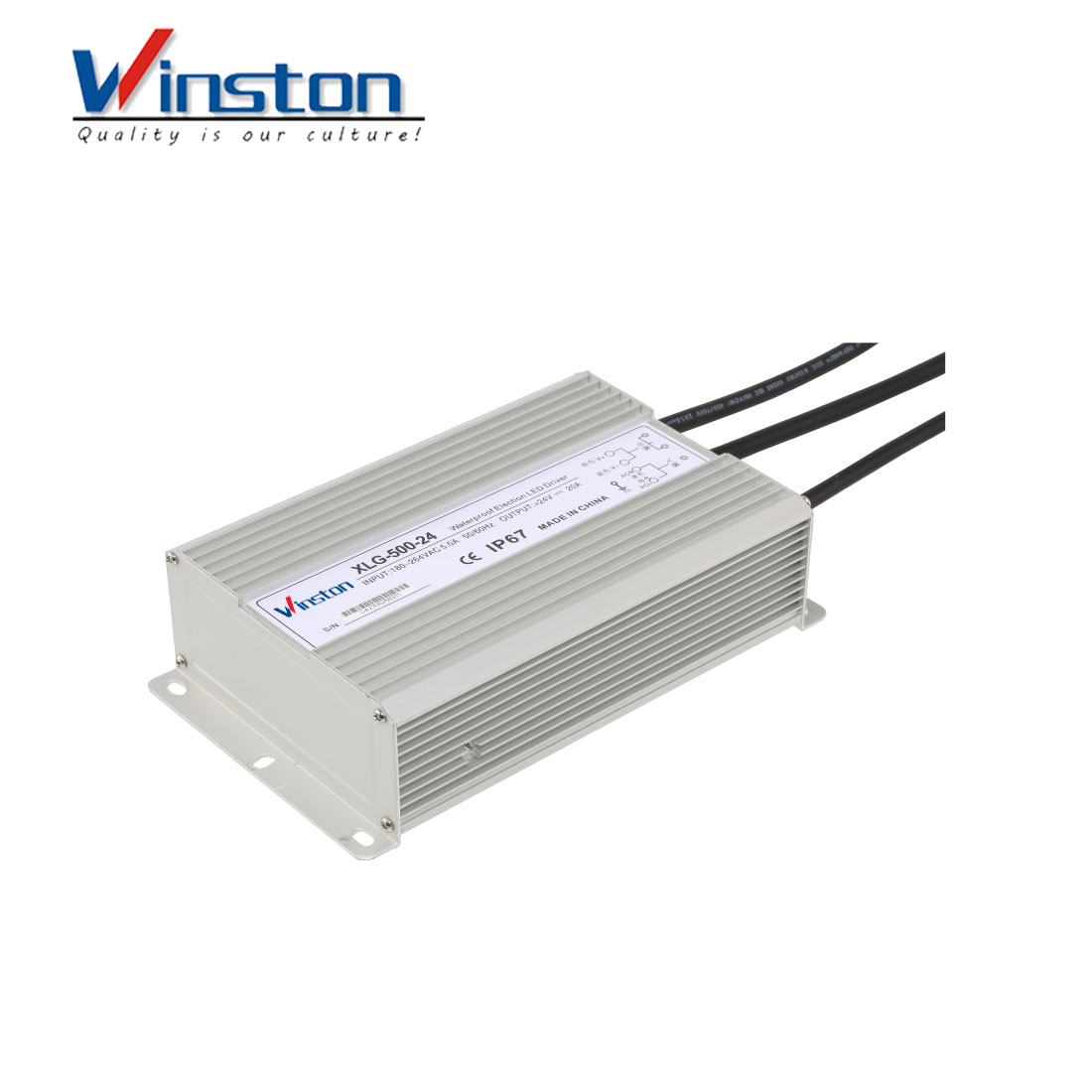

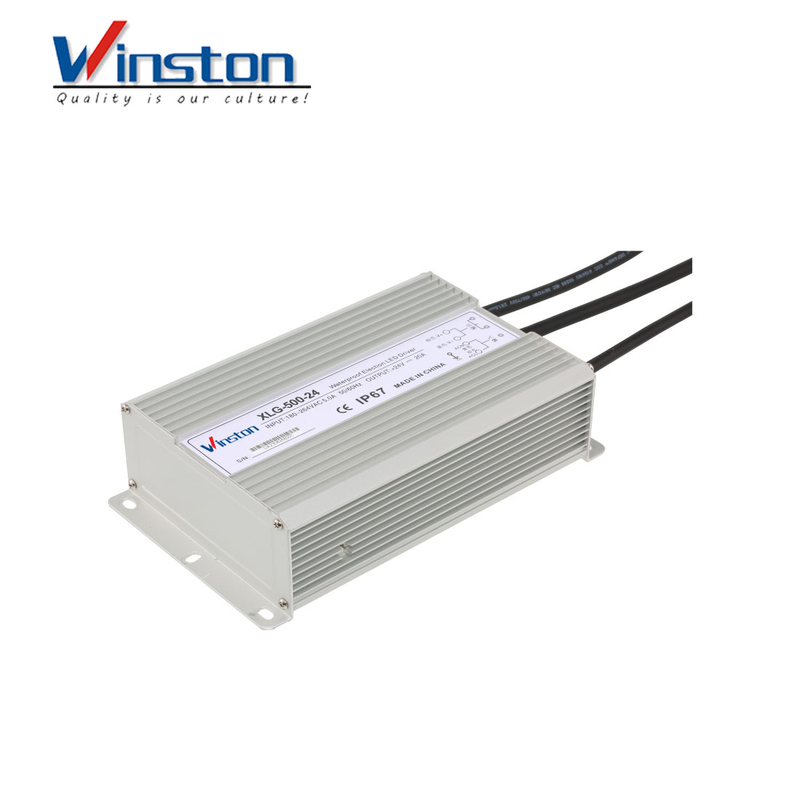

XLG-500
Winston
Single output: power 500W
Input voltage: 180～264VAC/235～373VDC
Single output: power 500W
Input voltage: 180～264VAC/235～373VDC
| Model | XLG-500-24 | XLG-500-36 | XLG-500-48 | XLG-500-60 |
| DC output voltage, current | 24V 0～20A | 36V 0～13.5A | 45V 0～10.5A | 48V 0～8.3A |
| Wave and noise | 200mVp-p | 220mVp-p | 240mVp-p | 240mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 92% | 92.5% | 93.5% | 94.5% |
| Adjustable range for DC voltage | ±0% | ±0% | ±0% | ±0% |
| Input voltage range | 180～264VAC /235～373V DC 47～63Hz | |||
| Impact current | Cold start current 55A/230VAC | |||
| Overload protection | 95%～108% Automatically recover after troubleshooting | |||
| Overvoltage protection | 115%～135% Hiccup mode, automatically restored after troubleshooting | |||
| Short circuit protection | Protection type: Hiccup mode, automatically restored after troubleshooting | |||
| Setup, rise, hold up time | 500ms, 50ms，24ms/230VAC | |||
| Withstand voltage | I/P-O/P：1.5kV I/P-FG：1.5kV O/P-FG：0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms / 500VDC / 25℃ /70%RH | |||
| Working temperature | -20℃～+60℃ | |||

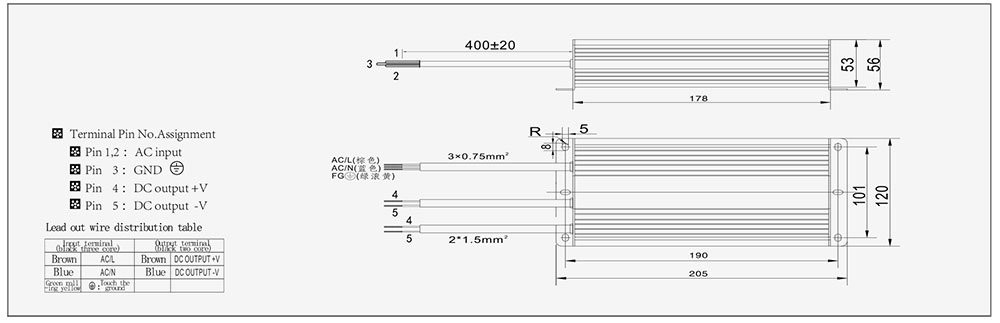

| Dimension | 205×120×56mm | |||
| Weight | 1.78kg | |||
| Packing | 44×29×21.5CM/9PCS/16kg | |||
