Model | XLG-1200-24 | XLG-1200-36 | XLG-1200-48 |
DC output voltage, current | 24V 45A | 36V 33A | 48V 25A |
Wave and noise | 240mVp-p | 300mVp-p | 350mVp-p |
Inlet wire stability | +-0.5% | +-0.5% | +-0.5% |
Load stability | +-0.5% | +-0.5% | +-0.5% |
Efficiency | 92.8% | 93.5% | 94.5% |
Adjustable range for DC voltage | +-2% | +-2% | +-2% |
Input voltage range | 180~264VAC 1245~373VDC47~63Hz |
Impact current | Cold start current 65A/230VAC |
Overload protection | 90%~ 105% of the rated output current starts overcurrent limit, recover automatically after abnormal conditions are removed |
Short circuit protection | Hiccups mode: recover automatically normal output after abnormal conditions are removed |
Setup, rise, hold up time | 500ms,50ms 24ms/230VAC(Fully Loaded) |
Withstand voltage | I/P-O/P:1.5kV IP-FG:1.5kVO/P-FG:0.5kv1minute |
lsolation resistance | I/P_O/P IP_FG O/P_FG: 100M Ohms/500VDC/25℃ 170%RH |
Working temperature | -20℃~+60℃ |

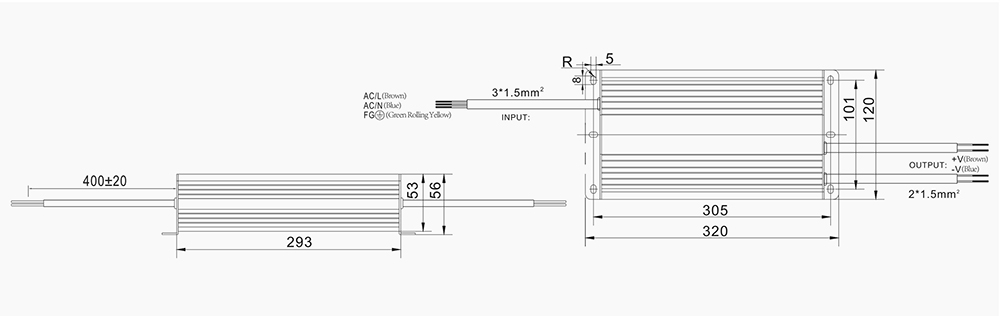

Dimension | 320x120x56mm |
Weight | 2.75kg |
Packing | 6PCS/2.75kg/17.5kg/0.033m^3 |
