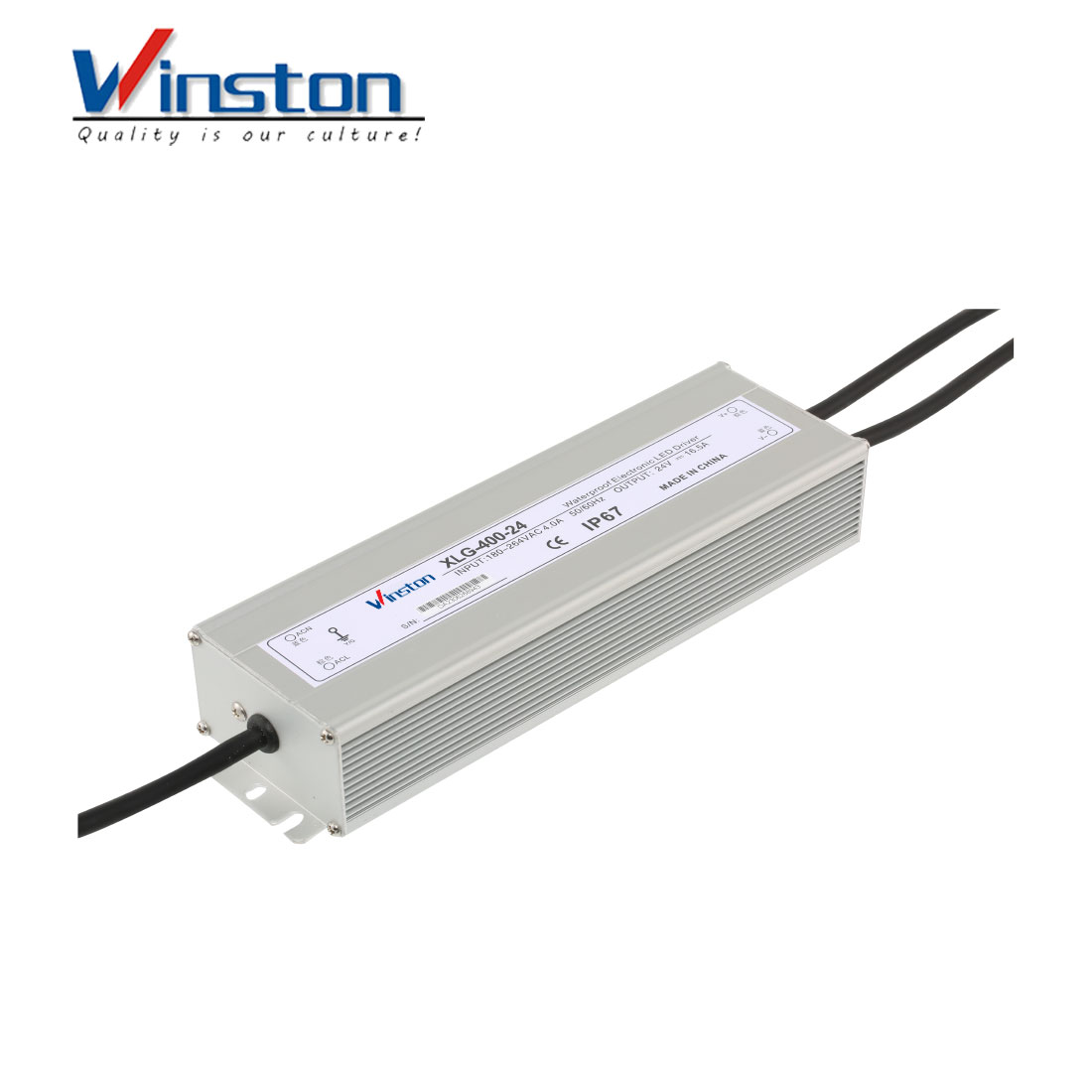

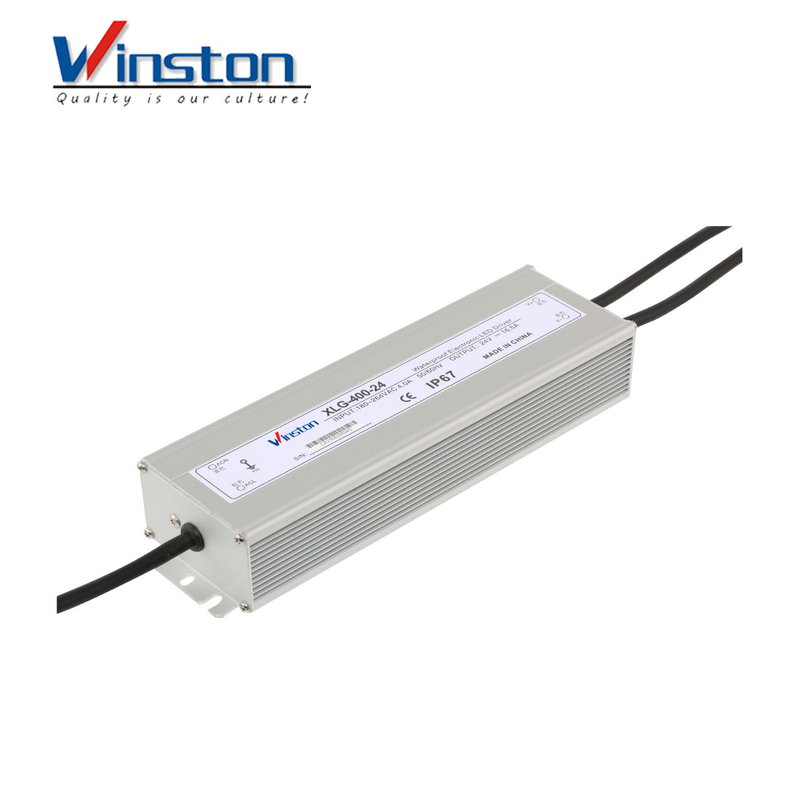

XLG-400
Winston
Single output: power 400W
Input voltage: 180～264VAC/235～373VDC
Single output: power 400W
Input voltage: 180～264VAC/235～373VDC
| Model | XLG-400-24 | XLG-400-36 | XLG-400-45 | XLG-400-48 |
| DC output voltage, current | 24V 0～16.5A | 36V 0～11A | 45V 0～8.8A | 48V 0～8.3A |
| Wave and noise | 180mVp-p | 200mVp-p | 220mVp-p | 220mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±2% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 92.3% | 93% | 93.5% | 94% |
| Adjustable range for DC voltage | ±0% | ±0% | ±0% | ±0% |
| Input voltage range | 180～264VAC /235～373V DC 47～63Hz | |||
| Impact current | Cold start current 45A/230VAC | |||
| Overload protection | 95%～108% Automatically recover after troubleshooting | |||
| Overvoltage protection | 115%～135% Hiccup mode, automatically restored after troubleshooting | |||
| Short circuit protection | Protection type: Hiccup mode, automatically restored after troubleshooting | |||
| Setup, rise, hold up time | 200ms, 30ms，20ms/230VAC | |||
| Withstand voltage | I/P-O/P：1.5kV I/P-FG：1.5kV O/P-FG：0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms / 500VDC / 25℃ /70%RH | |||
| Working temperature | -20℃～+60℃ | |||

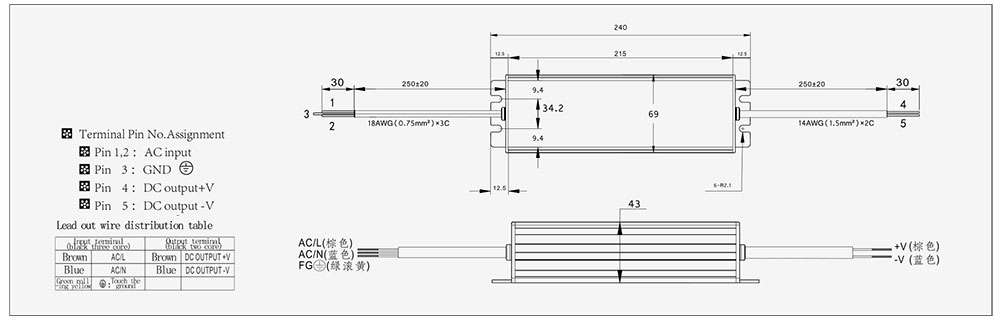

| Dimension | 240×69×43mm | |||
| Weight | 1kg | |||
| Packing | 37×29×24CM/16PCS/16kg | |||
