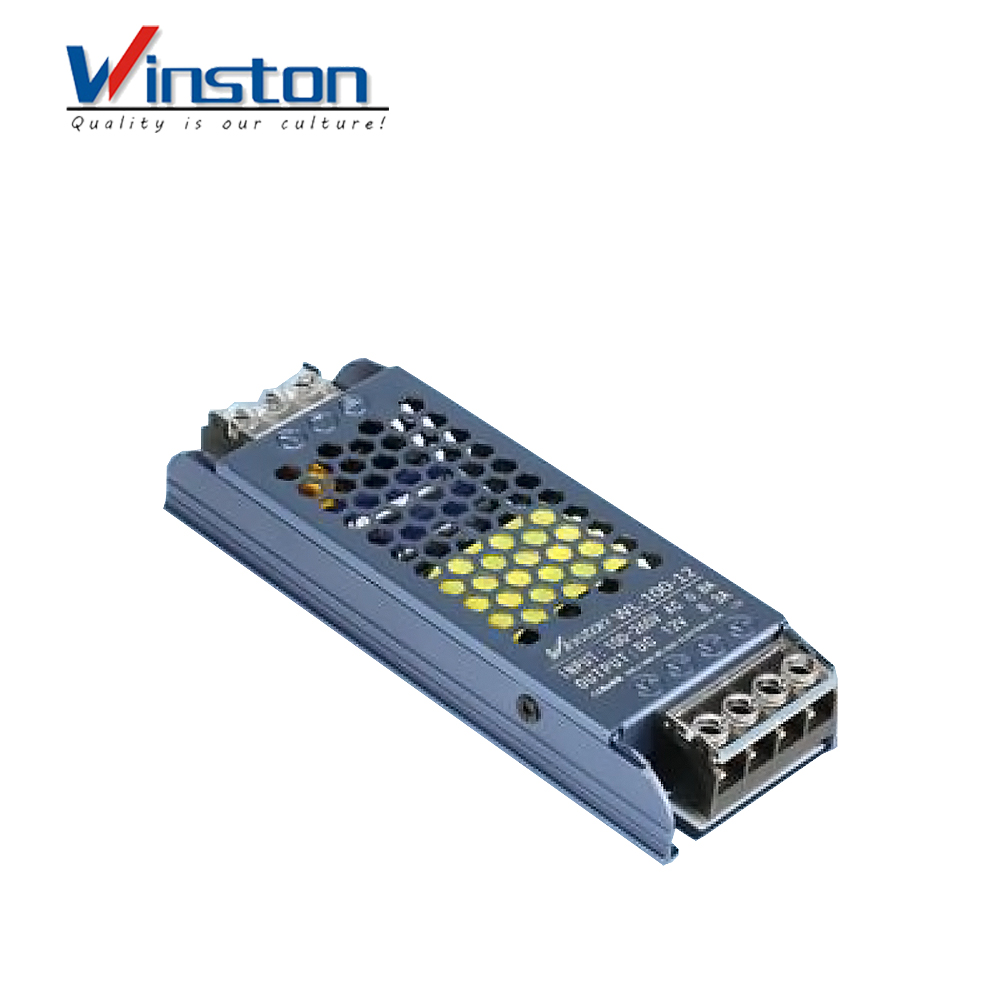

WL-100 12V 24V 36V 48V Ultra Thin LED Power Supply

Availability:
Quantity:
Inquire Add to Basket

  • WL-100

  • Winston

Features
• input Full Range
  85~264VAC/120-370VDC   47~63Hz • Working Temp.-10~+50℃
• Dimension 138*50*22MM
• Weight 0.16KGS • 3 Years WVarranty

Technical parameter
Model
DC output
Current
Efficiency
WL-100-12
12V
8.3A
86%
WL-100-24
24V
4.2A
89%
WL-100-36
36V
2.8A
89%
WL-100-48
48V
2.1A
90%


Previous:
Next:

Related Products

WL-400 12V 24V 36V 48V Ultra Thin LED Power Supply
WL-400 12V 24V 36V 48V Ultra Thin LED Power Supply

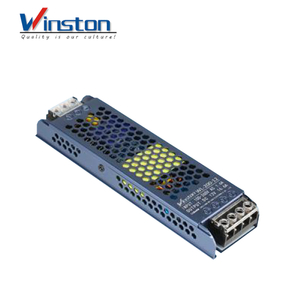

WL-300 12V 24V 36V 48V Ultra Thin LED Power Supply
