Winston WST-01 Hot sell Multi-Purpose Room Thermostat With CE

Availability:
Quantity:
  • WST-01

  • Winston

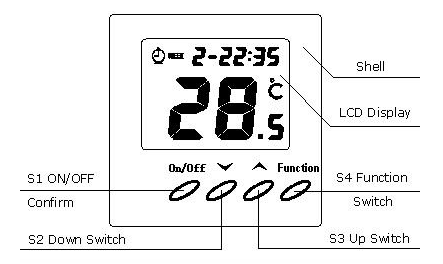

WST01 INTRODUCTION.png



Model WST-01
Measure range 0~40 Celsius
Current 3A    10A   16A
Temperature control Accuracy  +/-1 Celsius
Power supply 85-250VAC 50/60Hz
Power consumption <1W
Sensor type NTC  B=3380 10K@25Celsius
Sensor QTY 2 PCS
28 periods programe Mon-Sun,4 periods/day
Type Large LCD display + back lighting
Mount height 1.5meter
Control mode heating
Body material Antiflaming PC
Dimensions 86*86*17mm
Weight 175g/PCS
Color White / Black


WST01 DIMENSION.png
