HVAC Control System Programming Thermostat WSTR9
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.
Technical Parameter
Voltage | 230VAC,50/60Hz |
Power Consumption | 2VA |
Setting Range | 5ºC---90ºC |
Limitation Range | 5ºC--60ºC (factory setting 35ºC) |
Accuracy of temperature measurement | 0.5~10 Adjustable, factory setting±1ºC |
Ambient temperature | -5~50ºC |
Protective housing | IP20 |
Housing material | anti-flammable PC |
Selection Table | ||||||||
Model | Current | Application | ||||||
WSTR9713 | 3A | For cintrol of electric actuator or electrothermal actuator | ||||||
WSTR9723 | 3A | For cintrol of electric actuator or electrothermal actuator | ||||||
WSTR9716 | 16A | For cintrol of electric actuator or electrothermal actuator, a potential-free output |

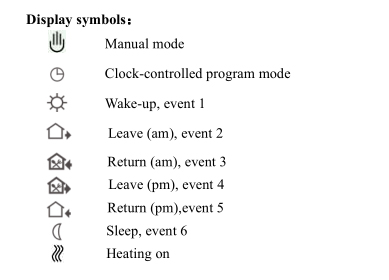

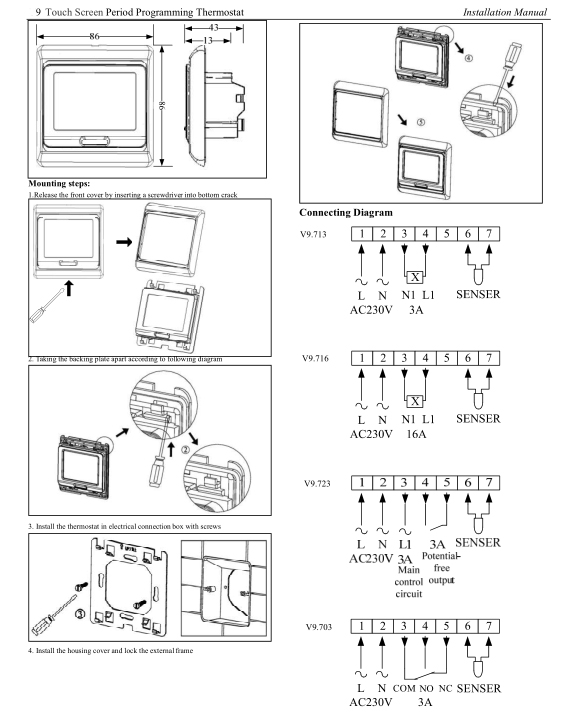

Product Description

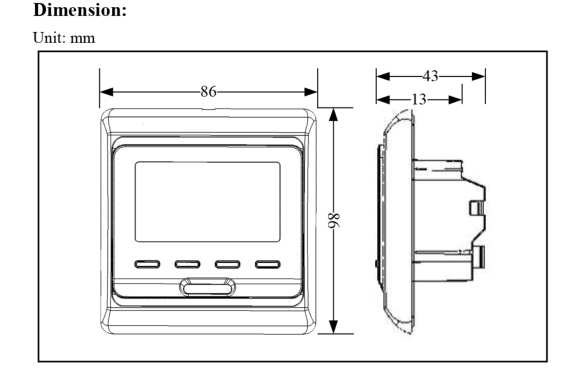

Dimension

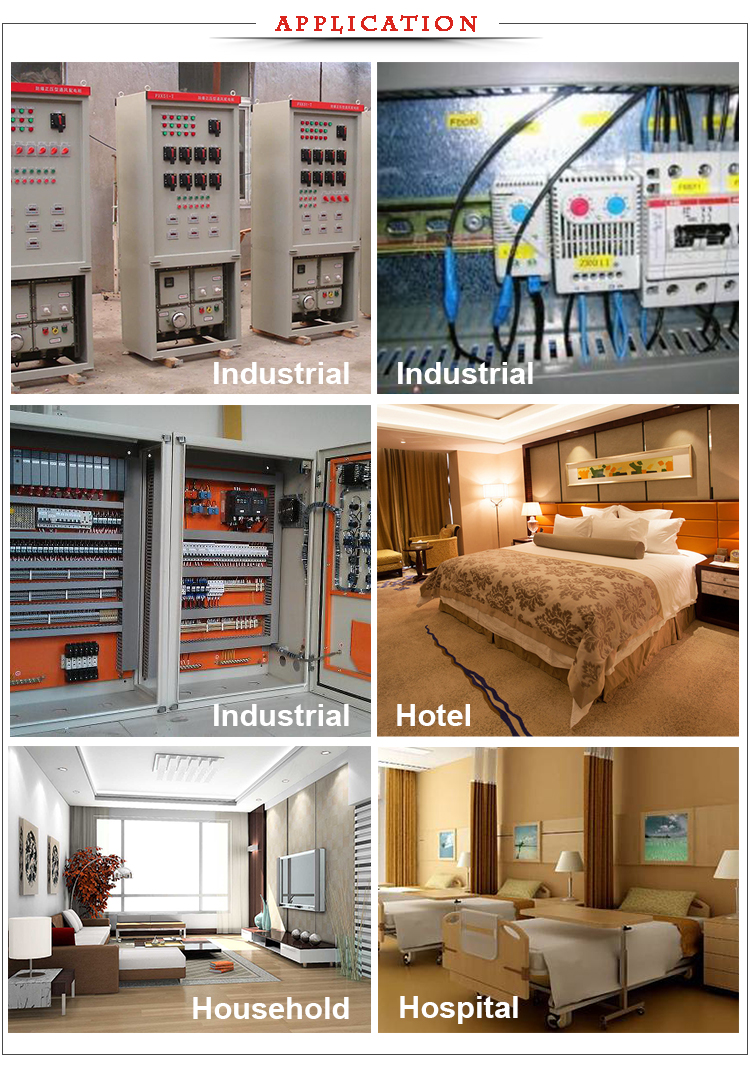

Application
Package and Shipping
