WST-03 16A 10A 3A 250VAC LCD display Programmable Thermostat

Availability:
Quantity:
Inquire Add to Basket

  • WST-03

  • Winston



ModelWST-03
Measure range0~40 Celsius
Current3A    10A   16A
Temperature control Accuracy +/-1 Celsius
Power supply85-250VAC 50/60Hz
Power consumption<1W
Sensor typeNTC  B=3380 10K@25Celsius
Control modeheating
TypeLarge LCD display + back lighting
Mount height1.5meter
Remote functionYES(optional)
Body materialAntiflaming PC
Dimensions86*86*12mm
Weight175g/PCS
ColorWhite / Black

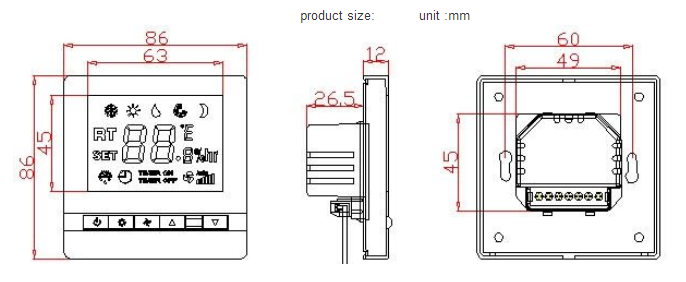

WST03 dimension.png
