WST-07 Water Heating System LCD Display Room Thermostat With CE

Availability:
Quantity:
Inquire Add to Basket

  • WST-07

  • Winston

ModelWST-07(WST-07AH SWT-07BH)
Measure range0~40 Celsius
Current3A    10A   16A
Temperature control Accuracy +/-1 Celsius
Power supply85-250VAC 50/60Hz
Power consumption<1W
Sensor typeNTC  B=3380 10K@25Celsius
Sensor QTY2 PCS
Multi. periods programe5+2/6+1/7
TypeTOUCH LCD + back lighting
Mount height1.5meter
Control modeheating
Body materialAntiflaming PC
Dimensions86*86*12mm
Weight185g/PCS
ColorWhite / Black

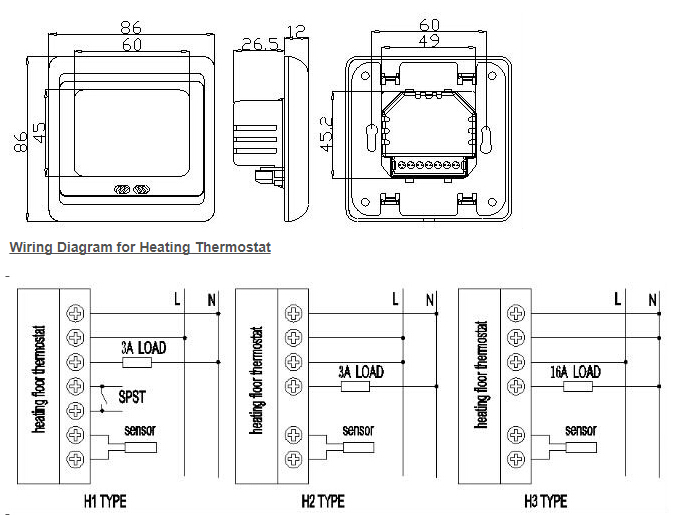

WST-07 WIRING.jpg
