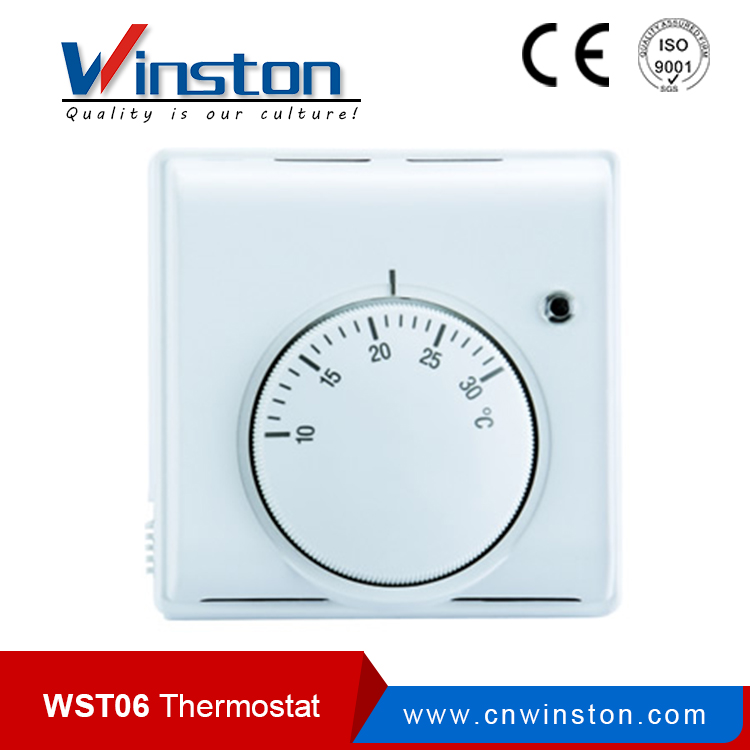

WST06 Floor Heating Digital Thermostat.
Mechanical heating thermostats adopt mechanical contact to control the on/off of the motorized valve.
WST06 electronic thermostat for mounting in standard wall box, the thermostat is adjustable to required temperature from +5/+40 celsius degree, the LED shows that the heat is ON, the thermostat is recommended for control of electric heating devices or on/off valve actuator used for in water-based heating systems.
Features
1. Elegant shape with high reliability
2. Manual switch to select work state
3. Manual knob to set the temperature.
4. LED indicates the working state
5. Thermostats can be directly mounted on the wall or standard wiring box.
WST06 Floor Heating Digital Thermostat.
Mechanical heating thermostats adopt mechanical contact to control the on/off of the motorized valve.
WST06 electronic thermostat for mounting in standard wall box, the thermostat is adjustable to required temperature from +5/+40 celsius degree, the LED shows that the heat is ON, the thermostat is recommended for control of electric heating devices or on/off valve actuator used for in water-based heating systems.
Features
1. Elegant shape with high reliability
2. Manual switch to select work state
3. Manual knob to set the temperature.
4. LED indicates the working state
5. Thermostats can be directly mounted on the wall or standard wiring box.
LED Indicator with power switch | |
Accuracy | at 20°c≤1°c |
Material & Color | White anti-flammable PC |
Floor sensor | rubber-thermoplastic NTC sensor, cable length is 3m |
Ambient Condition | -5°c~55°c |
Relative Humidity | <92%(no condensing) |
Temperature control range | 10-30 C |
Max load | 16A |
protection grade | IP20 |
CE standard | |
Voltage | AC230V(AC110V / AC24V available) |
Power consumptio | 5W |
LED Indicator with power switch | |
Accuracy | at 20°c≤1°c |
Material & Color | White anti-flammable PC |
Floor sensor | rubber-thermoplastic NTC sensor, cable length is 3m |
Ambient Condition | -5°c~55°c |
Relative Humidity | <92%(no condensing) |
Temperature control range | 10-30 C |
Max load | 16A |
protection grade | IP20 |
CE standard | |
Voltage | AC230V(AC110V / AC24V available) |
Power consumptio | 5W |
