MES-60/B
Winston
Mes-145/100 Series 800/5A to 3000/5A DIN Rail Current Transformer

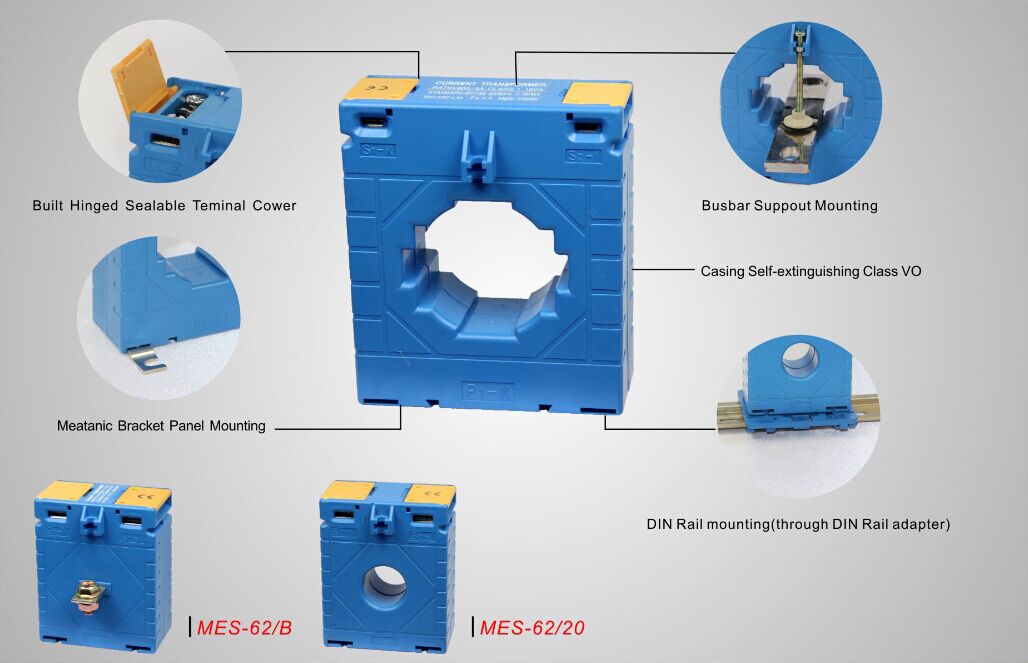

Feature
Three installation methods: Panel / Busbar/ Din Rail
Built-in hinged Terminal Cover
Primary current :up to 3000A
Second Current: 5A or 1A
Specifications:
| Rated frequency | 50Hz/60Hz |
| Rated test voltage | 3kv AC (1min) |
| Rated short-time thermal current (lth) | 60in |
| Rated dynamic current (ldyn) | 2.5lth |
| Rated voltage (Um) | 0.72kv AC |
| Continuous overload (ld) | 1.2In |
| Operating temperature | -10°C~50°C |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A / 1A |
MES-145/100 Series Model:
| Type | Ration Current (A) | Rated power (VA) | |
| Class: 0.5 | Class: 1.0 | ||
| MES-145/100 | 800/5 | 15 | 25 |
| MES-145/100 | 1000/5 | 15 | 25 |
| MES-145/100 | 1200/5 | 15 | 25 |
| MES-145/100 | 1250/5 | 15 | 25 |
| MES-145/100 | 1500/5 | 15 | 25 |
| MES-145/100 | 1600/5 | 15 | 2.5 |
| MES-145/100 | 2000/5 | 15 | 25 |
| MES-145/100 | 2500/5 | 15 | 25 |
| MES-145/100 | 3000/5 | 15 | 25 |

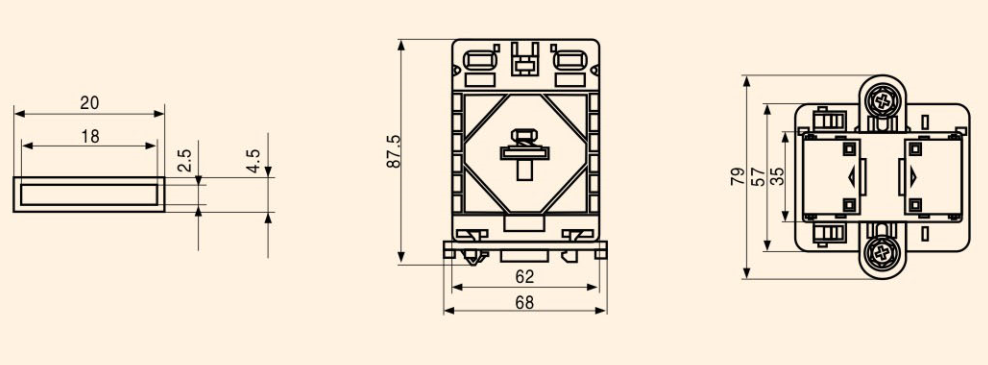

Dimension:
Packing&Shipping:
