Winston WST-2CT Toroidal Electrical 5A Current Transformer ct

■ Fitted to WST relays for Large Amp Motor Protection
■ 1.0 Measuring Class
Availability:
Quantity:
Inquire Add to Basket

  • WST-2CT

  • Winston

Winston WST-2CT Toroidal Electrical 5A Current Transformer ct


Products Description



■ Fitted to WST relays for Large Amp Motor Protection
■ 1.0 Measuring Class


Technical Parameters


Model
WST-2CT



Current Ratio
100
100 : 5A
150
150 : 5A
200
200 : 5A
300
300 : 5A
400
400 : 5A
Class
1.0
Power Rating
5VA
Insulation Voltage
AC600V
Dielectric Strength
2KV
Insulation
10MΩ (DC500V Megger)
Mounting
Panel

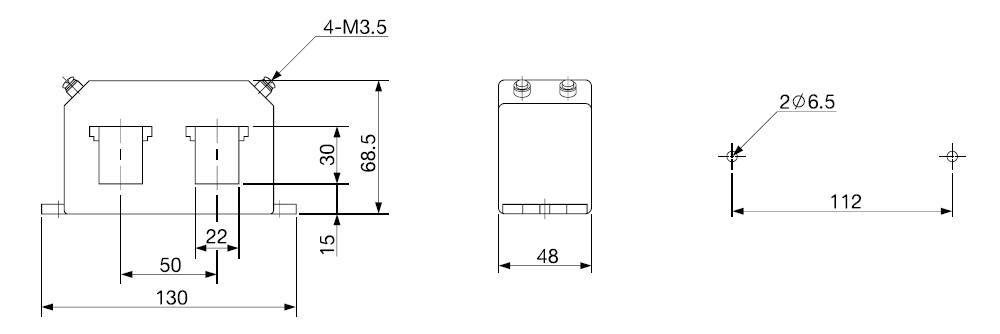

Installation dimension drawing


201812278490760


Details Images

全2

Packaging & Shipping

说明板块_01



Company Profile

说明板块_03OUR-SERVICES说明板块_04说明板块_05
