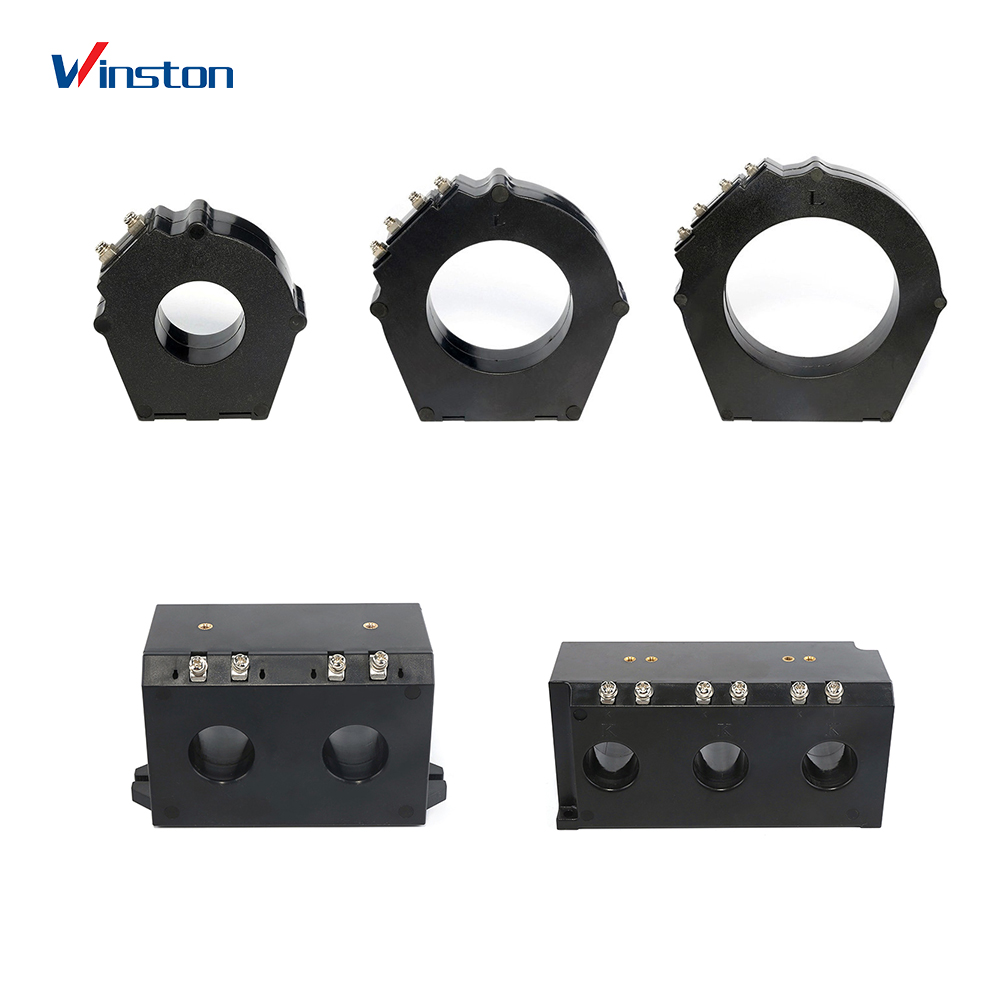

WSTZCT120
Winston
■ Applicable for Ground Fault Protection Devices(EGR)
■ Detect Zero Phase Current
Dimension | Type | Hole |
WSTZCT35 | 35mm | |
WSTZCT80 | 80mm | |

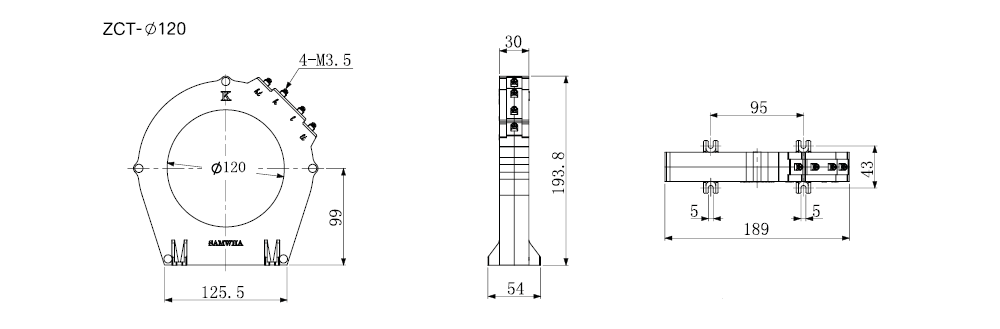

WSTZCT120 | 120mm | |
Primary GF Current | 200mA | |
Secondary GF Current | 1.5mA | |
Tolerance | ±10% | |
Power Rating | 10VA | |
Rated Voltage | 600VAC | |
Dielectric Strength | 2kV | |
Insulation | Insulation 10MΩ (500VDC Megger) | |
Mounting | Panel |
■ Applicable for Ground Fault Protection Devices(EGR)
■ Detect Zero Phase Current
Dimension | Type | Hole |
WSTZCT35 | 35mm | |
WSTZCT80 | 80mm | |
WSTZCT120 | 120mm | |
Primary GF Current | 200mA | |
Secondary GF Current | 1.5mA | |
Tolerance | ±10% | |
Power Rating | 10VA | |
Rated Voltage | 600VAC | |
Dielectric Strength | 2kV | |
Insulation | Insulation 10MΩ (500VDC Megger) | |
Mounting | Panel |
