Winston WSTZCT80 Protection Zero-phase Current Transformer Core

■ Applicable for Ground Fault Protection Devices(EGR)
■ Detect Zero Phase Current
Availability:
Quantity:
Inquire Add to Basket

  • WSTZCT80

  • Winston

Winston WSTZCT80 Protection Zero-phase Current Transformer Core


Products Description



■ Applicable for Ground Fault Protection Devices(EGR)

■ Detect Zero Phase Current


Technical Parameters



Dimension
Type
Hole
WSTZCT35
35mm
WSTZCT80
80mm
WSTZCT120
120mm
Primary GF Current
200mA
Secondary GF Current
1.5mA
Tolerance
±10%
Power Rating
10VA
Rated Voltage
600VAC
Dielectric Strength
2kV
Insulation
Insulation 10MΩ (500VDC Megger)
Mounting
Panel

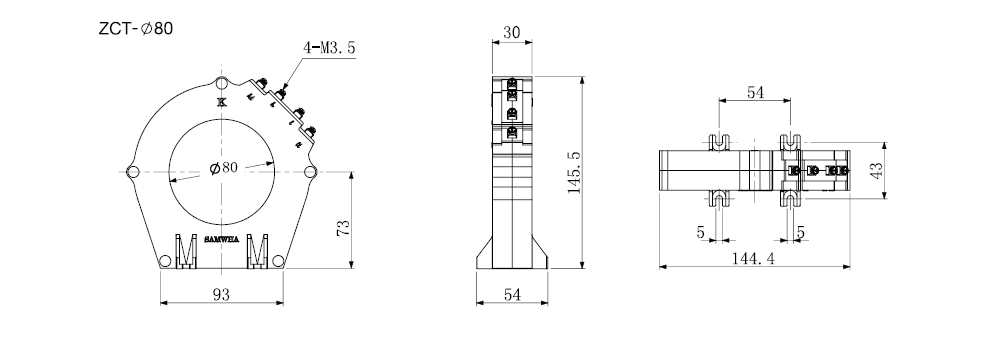

Installation dimension drawing


201812278490485


Details Images

全2

Packaging & Shipping

说明板块_01



Company Profile

说明板块_03OUR-SERVICES说明板块_04说明板块_05
