MES-62/30
Winston
Description
A range of (9 Models) compact design plastic case current transformer . It`s volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requipment in space limited panels.
Feature
Three installation methods: Panel / Busbar./ Din Rail
Built-in hinged Terminal Cover
Primary current :5A up to 3000A
Second Current: 5A or 1A
Description
A range of (9 Models) compact design plastic case current transformer . It`s volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requipment in space limited panels.
Feature
Three installation methods: Panel / Busbar./ Din Rail
Built-in hinged Terminal Cover
Primary current :5A up to 3000A
Second Current: 5A or 1A
Model | MES-62/30 |
Rated frequency | 50Hz/60Hz |
Rated test voltage | 3kv AC (1min) |
Rated short-time thermal current (lth) | 60in |
Rated dynamic current (ldyn) | 2.5lth |
Rated voltage (Um) | 0.72kv AC |
Continuous overload (ld) | 1.2In |
Operating temperature | -10°C~50°C |
Housing self-extinguishing class | VO |
Safety factor | FS 5 |
Secondary current | 5A / 1A |
MES-62/30 Series Model & Datasheet:
Type | Ratio (A) | Burden(VA) | |
Class:0.5 | Class:1.0 | ||
MES-62/30 | 30/5 | / | 2.5 (4T) |
MES-62/30 | 40/5 | / | 2.5 (3T) |
MES-62/30 | 50/5 | / | 2.5 (2T) |
MES-62/30 | 60/5 | / | 2.5 (2T) |
MES-62/30 | 75/5 | / | 1.5 |
MES-62/30 | 100/5 | 1.5 | 2.5 |
MES-62/30 | 150/5 | 2.5 | 3.75 |
MES-62/30 | 200/5 | 3.75 | 5 |

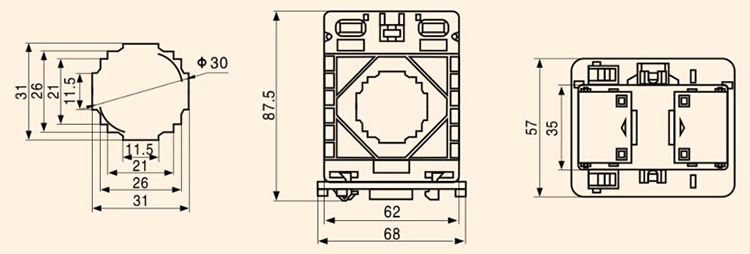

Dimension
Model | MES-62/30 |
Rated frequency | 50Hz/60Hz |
Rated test voltage | 3kv AC (1min) |
Rated short-time thermal current (lth) | 60in |
Rated dynamic current (ldyn) | 2.5lth |
Rated voltage (Um) | 0.72kv AC |
Continuous overload (ld) | 1.2In |
Operating temperature | -10°C~50°C |
Housing self-extinguishing class | VO |
Safety factor | FS 5 |
Secondary current | 5A / 1A |
MES-62/30 Series Model & Datasheet:
Type | Ratio (A) | Burden(VA) | |
Class:0.5 | Class:1.0 | ||
MES-62/30 | 30/5 | / | 2.5 (4T) |
MES-62/30 | 40/5 | / | 2.5 (3T) |
MES-62/30 | 50/5 | / | 2.5 (2T) |
MES-62/30 | 60/5 | / | 2.5 (2T) |
MES-62/30 | 75/5 | / | 1.5 |
MES-62/30 | 100/5 | 1.5 | 2.5 |
MES-62/30 | 150/5 | 2.5 | 3.75 |
MES-62/30 | 200/5 | 3.75 | 5 |
Dimension
