13060.9-01
Winston
Manufacturer CS130 Series Electric Heater Heater Element 1200W 13060.9-01
Features
Compact design
Built-in overheat protection
Integrated adjustable thermostat (optional)
Double insulated plastic housing
Panel or DIN rail mounting
The compact CS 130 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for panel or DIN rail mounting.
Technical Parameter
Model | CS130 Series | |
Heating Element | PTC Resistor- Temperature limiting | |
Overheat protection | Built-in temperature limiter | |
Axial fan ball bearing | Service Life 50.000 h at 77°F (25℃) | |
Air flow, free blowing | 94cfm (160m³/h) | |
Connection | 2-pole terminal AWG 14max. (2.5mm² )with strain relief, clamping torque 0.8Nm max. | |
Housing | Plastic, UL94V-0,black | |
Mounting | Clip for 35mm Din Rail EN60715 or M6 screws (not included) | |
Mounting Position | Horizontal | |
Operating Temperature | —49 to 158°F (—45 to + 70℃) | |
Dimension | 4.7*6.3*7.2" (120*160*182mm) | |
Weight | Approx 1.2KG | |
Protection Class | II (Double insulated) | |
Protection Type | IP20 |
Part No. | Heating capacity | Operating Voltage | Max.Current (inrush) | Setting Range |
13060.0-00 | 1200W | AC230V,50/60Hz with thermostat | 13A | 0 to 60℃ |
13060.0-01 | AC230V,50/61Hz without thermostat | 13A | None (no integrated controls) | |
13060.9-00 | AC120V,50/60Hz with thermostat | 16A | 32 to 140°F | |
13060.9-01 | AC120V,50/61Hz without thermostat | 16A | None (no integrated controls) |

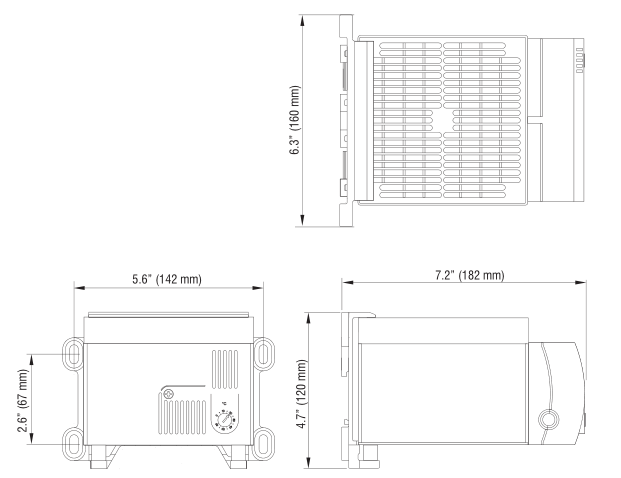

Dimension

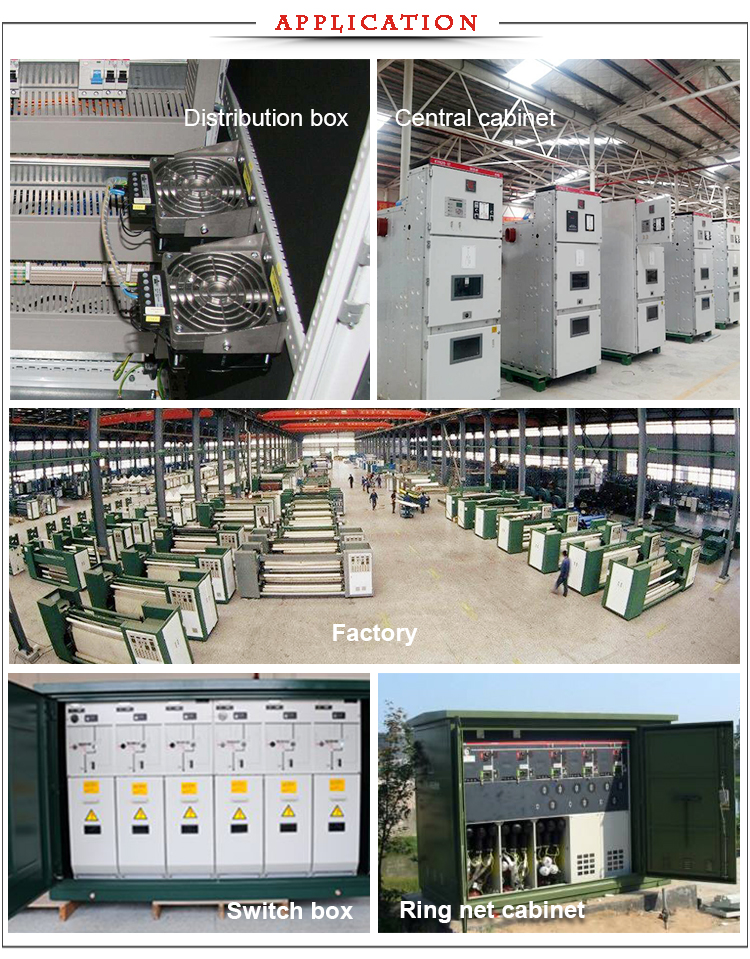

Application
Package and shipping
