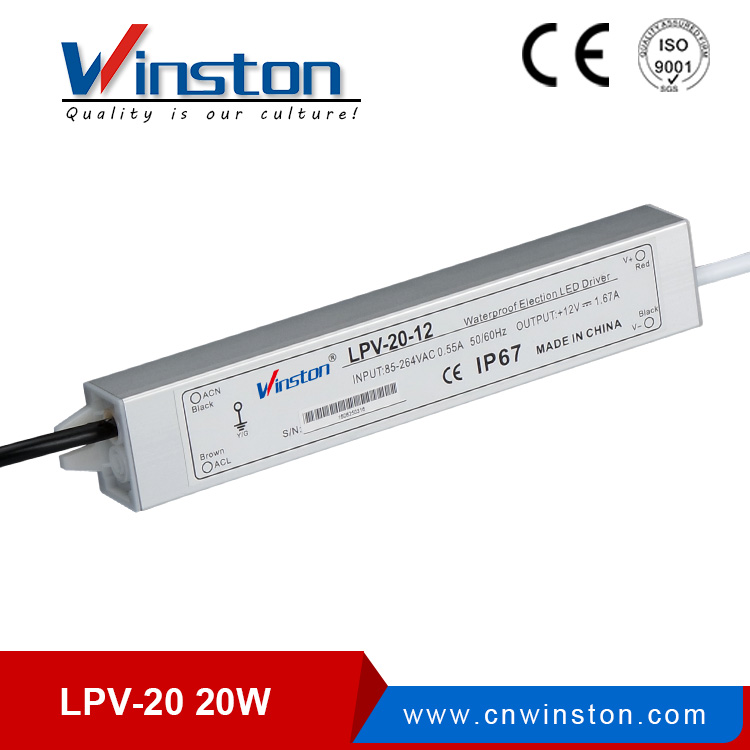

LPV-20
Winston
·Constant voltage style power supply
·180～264VAC AC input ·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·Cooling by free air convection
·Fully encapsulated with IP67 level
·100% full load burn-in test
·2 Year warranty
·Constant voltage style power supply
·180～264VAC AC input ·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·Cooling by free air convection
·Fully encapsulated with IP67 level
·100% full load burn-in test
·2 Year warranty

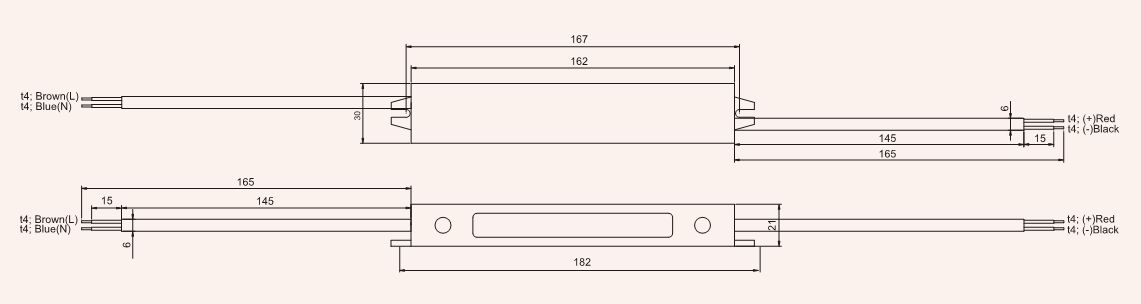

| Model | LPV-20-5 | LPV-20-12 | LPV-20-15 | LPV-20-24 | |
| output | DC voltage | 5V | 12V | 15V | 24V |
| Voltage tolerance | ±1% | ±1% | ±1% | ±1% | |
| Current range | 0~3A | 0~1.67A | 0~1.33A | 0~0.84A | |
| Ripple&noise | 80mvp-p | 120mvp-p | 120mvp-p | 150mvp-p | |
| input | Voltage range | 90~264VAC，127~373VDC | |||
| Frequency | 47~63HZ | ||||
| AC current | 0.55A/115VAC, 0.35A/230VAC | ||||
| Efficiency | 77% | 81% | 83% | 83% | |
| Inrush current | Cold start current 35A/115VAC, 75A/230VAC | ||||
| Leakage current | < 0.25mA/240VAC | ||||
| protection | Over load | Rated output power 110%~150%start over load protection | |||
| Protection type：hiccup mode，auto-recovery after fault condition is removed | |||||
| Over voltage | 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | |
| protection type:cut off output voltage,diode clamp | |||||
| ----- | ----- | ||||
| ----- | |||||
| environment | Working temp,humidity | -20℃~+60℃，20%~90%RH | |||
| Storage temp.humidity | -40℃~+85℃，10%~95%RH non condensing | ||||
| Withstand vibration | 10~500HZ，2G 10min/1cycle，period for 60minutes，each axes | ||||
| safety | Withstand voltage | I/P-O/P：1.5KVAC | |||
| Isolated resistance | I/P-O/P：100M ohms/500VDC | ||||
| Fits | Safety standard | Fit UL1012，IP67 protect level | |||
| tandard | EMC standard | Fit EN55022，CLASSA | |||
| Others | Dimension | 118*35*26mm (L*W*H) | |||
| Weight/packing | 0.22kg/90pcs/21kg/0.027m³/0.95CUFT | ||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation | |||||
