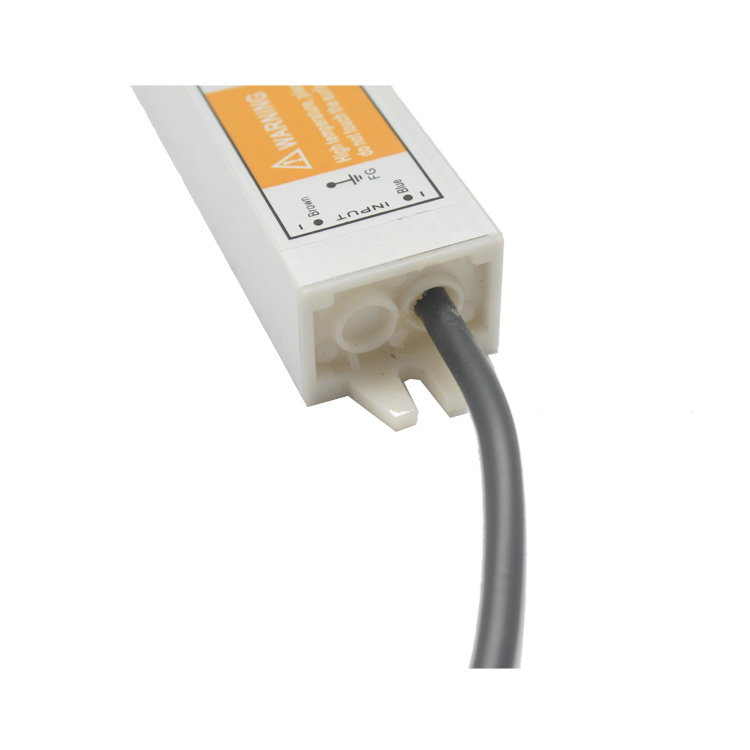

LDV-60
Wsinton
Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
2 years warranty
SPECIFICATION | ||
OUTPUT | ||
Model | LDV-60-12 | LDV-60-24 |
DC Voltage | 12V | 24V |
Rated Current | 5A | 2.5A |
Current Range | 0-5A | 0-2.5A |
Rated Power | 60W | 60W |
Ripple & Noise | 120mVp-p | 120mVp-p |
Voltage Adj. Range | ±10% | ±10% |
Voltage Tolerance | ±1% | ±1% |
Inlet Stability | ±0.5% | ±0.5% |
Load Stability | ±0.5% | ±0.5% |
Setup,Rise,Hold Up Time | 800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | |
INPUT | ||
Voltage Range | 170~250VAC 50-60Hz | |
AC Current | 2A/115V1A/230V | |
Efficiency | 76% | 79% |
Inrush Current | Cold-start current 30A/115V60A/230V | |
PROTECTION | ||
Over Load | 105%~150% | |
plusing hiccup shutdown Reset:auto recovery | ||
ENVIRONMENT | ||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | |
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | |
Temp. Coefficient | ±0.03%/℃(0-50℃) | |
Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | |
SAFETY | ||
Withstand Voltage | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |
STANDARD | ||
Safety Standard | UL1012TUV EN60950(IEC950,UL1950)ApprovedIP67 | |
EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | |
OTHERS | ||
Dimension | 190*48*35mm（L*W*H） | |
Weight | 0.56Kg | |
