JBK5-200 200VA Instrument Type single Phase 380VAC 220VAC Input Transformer

Availability:
Quantity:
Inquire Add to Basket

  • JBK5-200

  • Winston




Type
   Power   Input Voltage (V)   Output
Voltage (V)		 Overall Size  Installion size Mounting Hole
(VA)  (B*D*E) (MM)    (A*C)(MM) (K*J)(MM)
JBK5-40  40VA 12V
24V
36V
48V
110V
127V
  220V		 12V
24V
36V
48V
110V
127V
220V		 78x72x90  56x46  4.6
JBK5-63  63VA  78x72x90  56x46  4.6
JBK5-100 100VA  85x75x96  64x62  4.6
JBK5-160  160VA  96x92x105  84x73.5  5.5
JBK5-250  250VA  96x100x104  84x85 5.8
JBK5-300  300VA  120x100x110 90x85  5.8
JBK5-400  400VA  120x100x122  90x85  7
JBK5-500  500VA  120x120x130 90x98 7
JBK5-630  630VA  150x110x140  122x90  7
JBK5-800  800VA  150x128x142  122x105  7
JBK5-1000a  1000VA  150x190x142  126x155  7
JBK5-1000b  1000VA  168x125x155  105x138  9
JBK5-1600a  1600VA  170x225x155  140x176  7
JBK5-1600b  1600VA  168x138x155  116x138  9
JBK5-2000  2000VA  190x160x160  172x195  7
JBK5-2500  2500VA  194x160x165  172x195

7

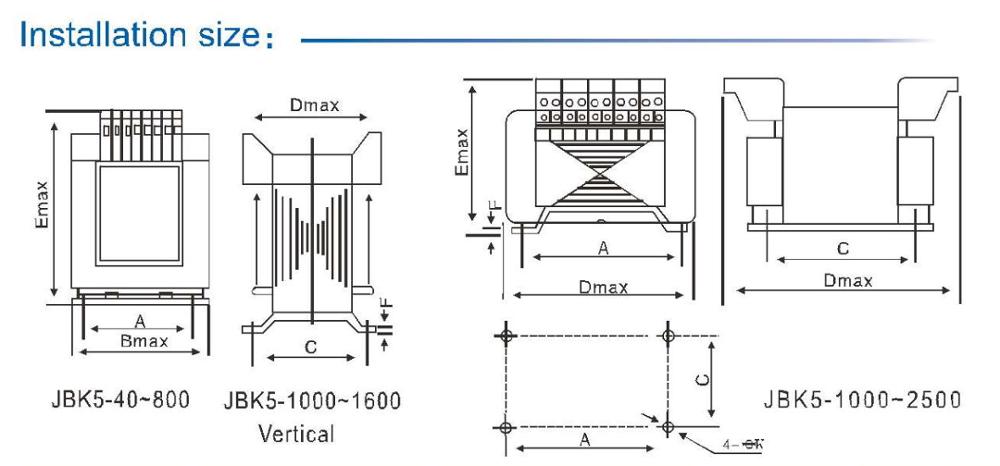

 jbk size.jpg
