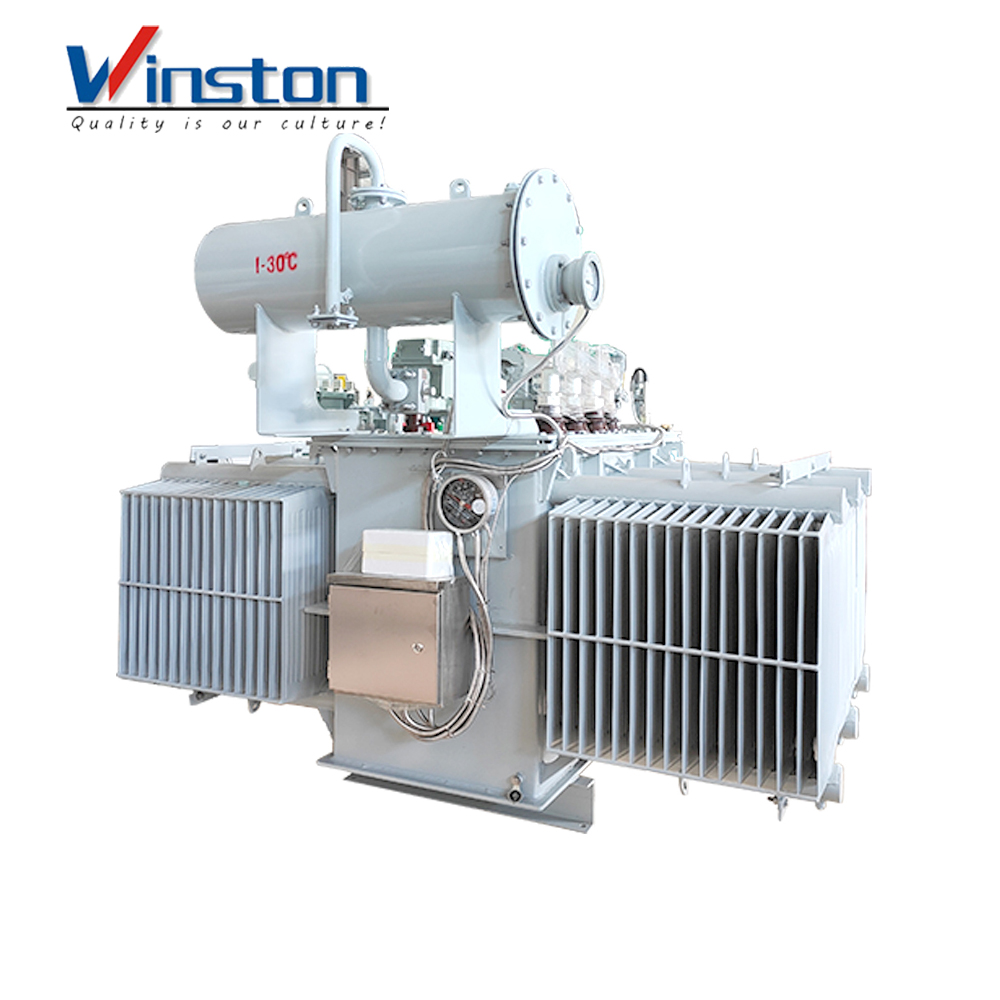

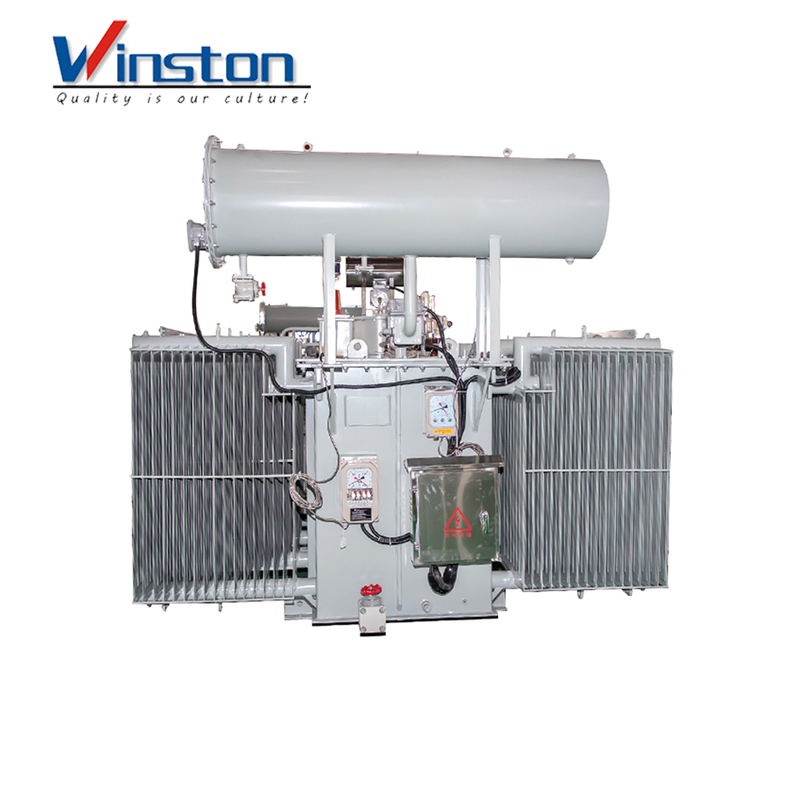

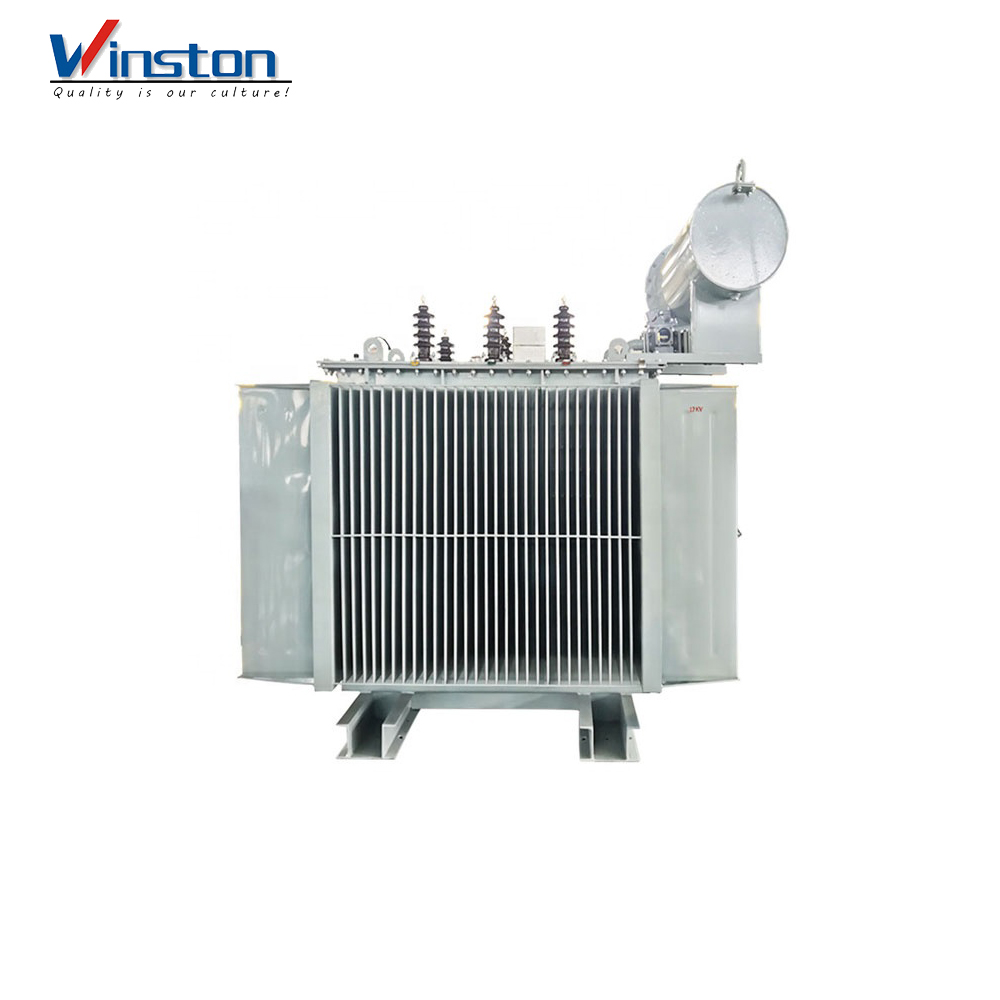

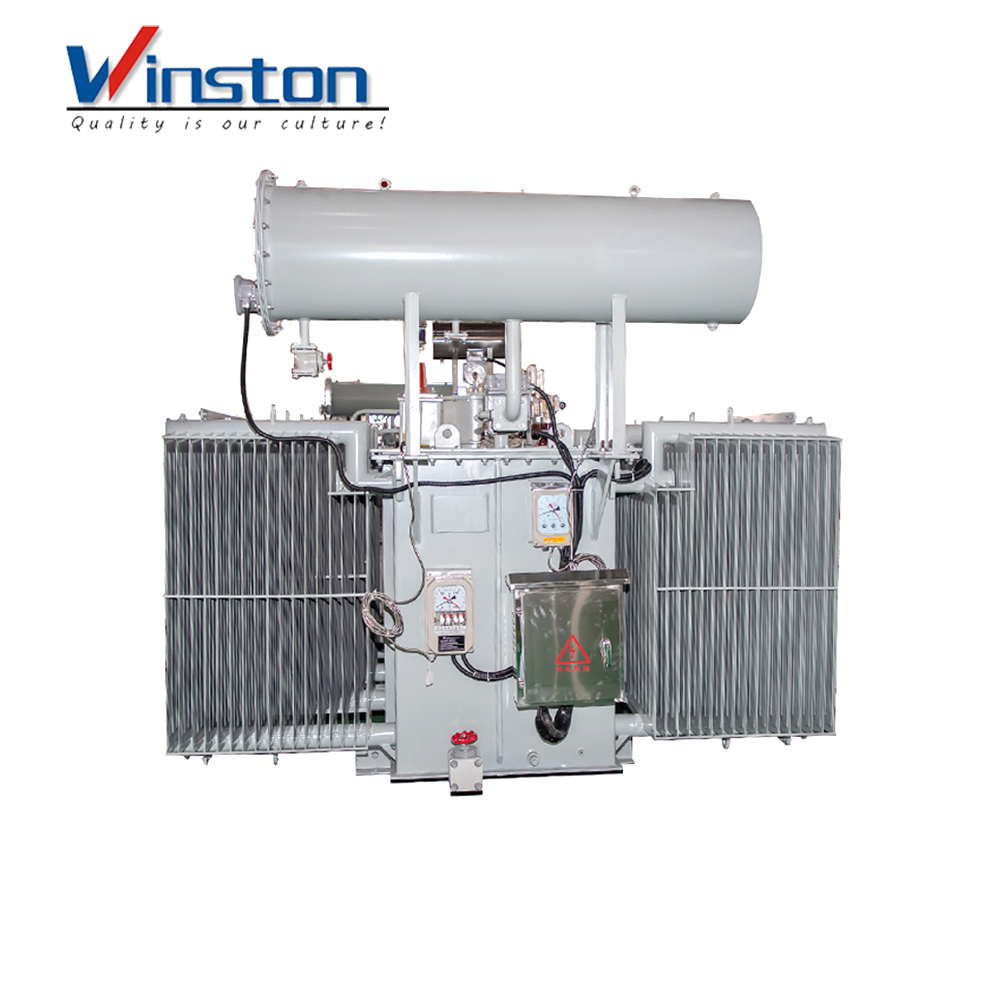

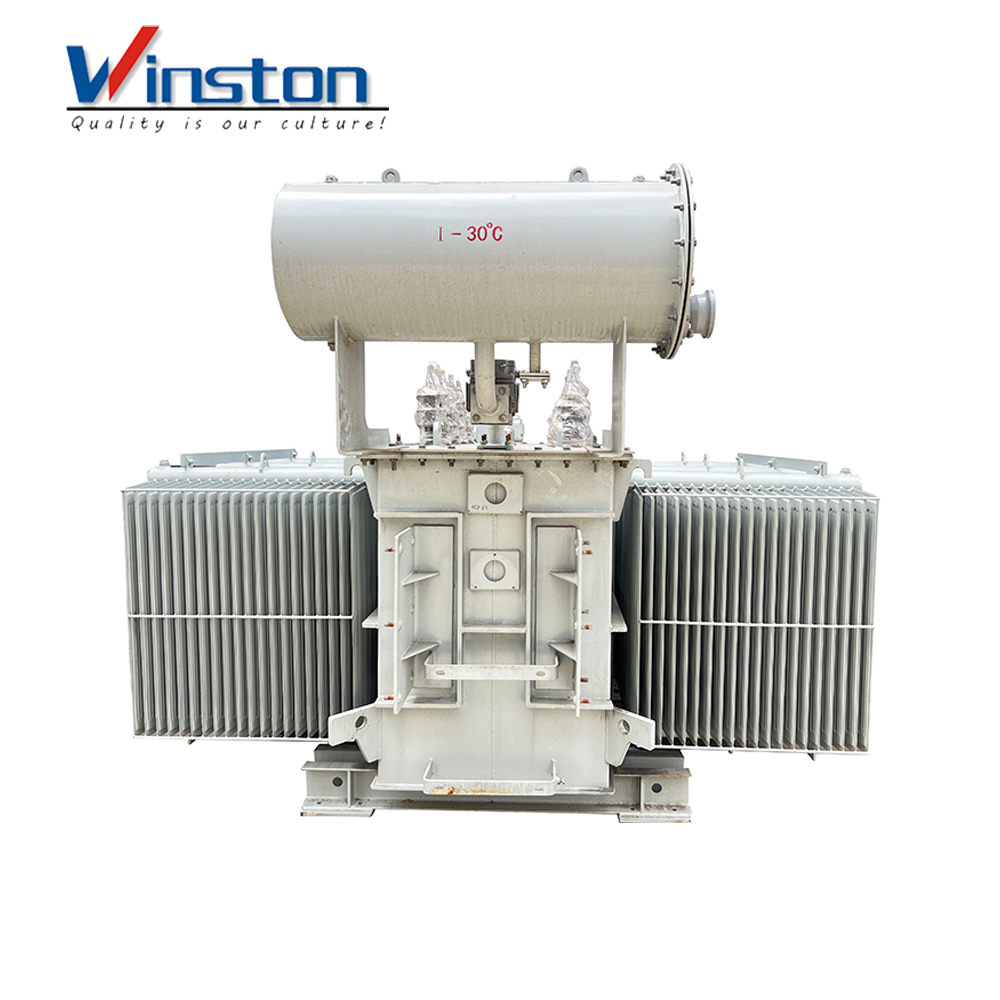

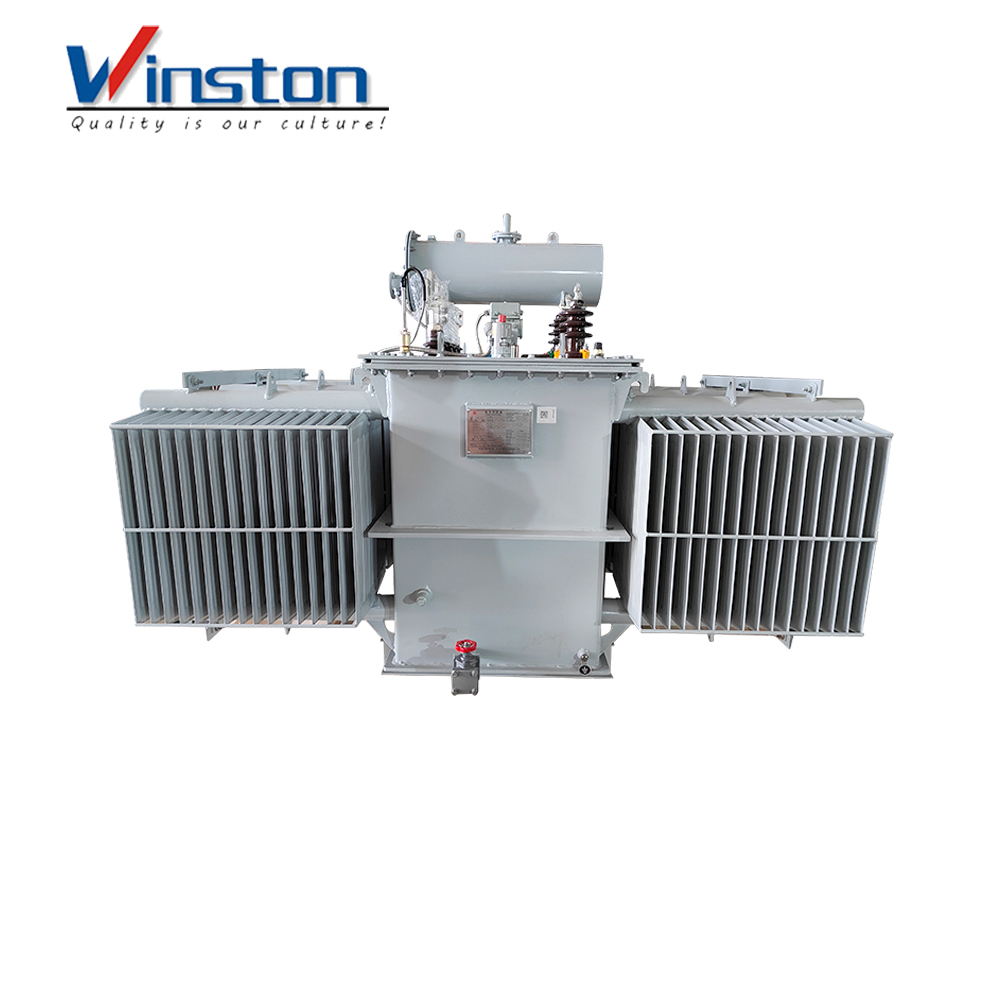

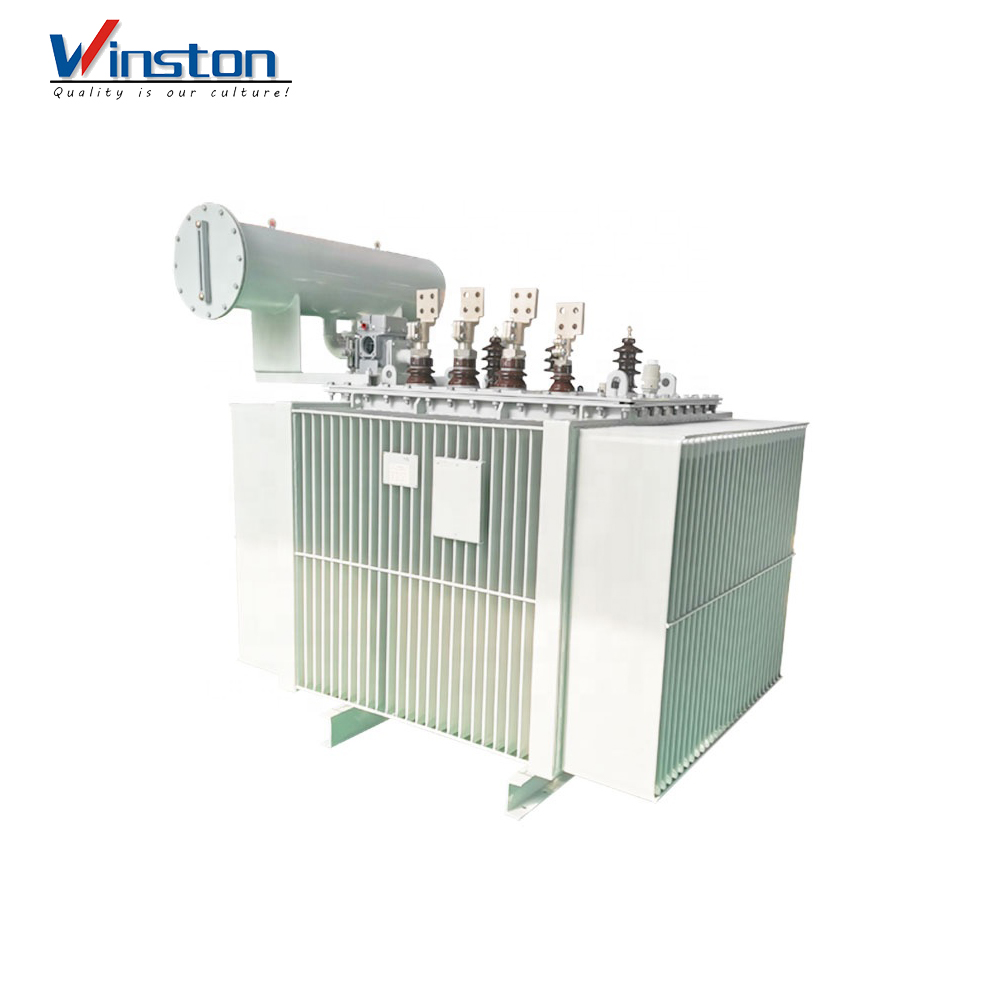

35KV series low-loss energy-saving power transformer

Share to:

35KV series low-loss energy-saving power transformer

Availability:

Quantity:



Inquire Add to Basket

Model:
35KV series

This product implements the national standard GB1094, power transformer and GB6451 three-phase oilimmersed power transformer technical parameters and requirements. The product is mainly used in powersystems, substations and 35KV subscriber stations. The product adopts the most advanced scientific researchachievements at home, and has many characteristics, such as novel structure, low loss, small size, short circuitresistance, and so on.

Ordering instruction

Please provide the following parameters when ordering:

Product model
Rated capacity
Voltage combination
Adjustment range
Frequency
Connection symbol
Short-circuit impedance
Please note the technical requirements for the products having the special requirements

Dry core series reactor reactor 1%6%12% high voltage series filter reactor

YBM-12(24)/0.4 Pre-installed substation

ZGS-40.5KV Photovoltaic transformer

ZGS-Z.F/35(10)wind power generation Combined transfomer

ZGS-Z· G Series photovoltaic power generation combined transformer

ZGS11(13)-Z(H) 20KV combined transformer

ZGS11(13)-Z(H) 10КV combined transformer

SG(B) series 11, 12, 13 unencapsulated H-class dry-type power transformer

SCBH15 series of amorphous alloy resin dry-type power transformer

35KV 11, 12, 13 three-phase resin insulation Energy-saving dry-type power transformer

20KV 11, 12, 13 three-phase resin insulation Energy-saving dry-type power transformer

10KV 11, 12, 13 three-phase resin insulation Energy-saving dry-type power transformer

ZS、 ZSS CRYSTALLINE ALLOY IRON-CORE TRANSFORMER

20KV series low-loss energy-saving power transformer

10KV series low-loss energy-saving power transformer

Low-voltage Waterproof Transformer For Outdoor Pool Underwater Light Fixtures

0.15KVA - 250KVA 11V 220V 380V Step Up step down isolation Dry Type 3 phase Transformer

Yueqing Winston WT16 Electric 24V 12V 230VAC Bell Transformer

160VA Dry Type Electrical Transformer For Mechanical Equipment (JBK5-160)

220V 100VA Control Power Voltage Transformer (JBK5-100)

Rated capacity	Voltage combination and tapping range			Join group label	No-load current (%)	No-load loss (W)	Load loss (W)	Short-circuit impedance (%)
Rated capacity	High voltage (KV)	High pressure tap range %	Low voltage (KV)	Join group label	No-load current (%)	No-load loss (W)	Load loss (W)	Short-circuit impedance (%)
50	35 38.5	±2*2.5 ±5	0.4	Dyn11 Yy0	1.30	160	1200/1140	6.5
100					1.10	230	2010/1910
125					1.10	270	2370/2260
160					1.00	280	2820/2680
200					1.00	340	3320/3160
250					0.95	400	3950/3760
315					0.95	480	4750/4530
400					0.85	580	5740/5470
500					0.85	680	6910/6580
630					0.65	830	7860
800					0.65	980	9400
1000					0.65	1150	11500
1250					0.60	1400	13900
1600					0.60	1690	16600
2000					0.55	1990	19700
2500					0.55	2360	23200

Rated capacity	ltage combination and tapping range			Join group label	No-load current (%)	No-load loss (W)			Load loss(W)			Short-circuit impedance (%)
Rated capacity	High voltage (KV)	High pressure tap range %	Low voltage (KV)	Join group label	No-load current (%)	NX1	NX2	NX3	NX1	NX2	NX3	Short-circuit impedance (%)
3150	35 38.5	±2*2.5 ±5	3.15 6.3 10.5	Yd11	0.45	1700	2000	2400	20700	20700	21900	7.0
4000					0.45	2000	2300	2900	24600	24600	25900
5000					0.45	2400	2800	3500	28200	28200	29700
6300					0.45	2900	3400	4200	31500	31500	33300	8.0
8000			3.15 3.3 6.3 6.6 10.5	YNd11	0.35	4000	4700	5800	34600	34600	36500
10000					0.35	4800	5700	7000	40800	40800	43000
12500					0.30	5500	6500	8000	48400	48400	51100
16000					0.30	6700	7900	9700	59200	59200	62500
20000					0.30	7900	9400	11500	71600	71600	75500
25000					0.25	9400	11100	13600	84600	84600	89300	10.0
31500					0.25	1110	13100	16200	100800	100800	106400	10.0

Rated capacity	Voltage combination and tapping range			Join group label	No-load current (%)	No-load loss (W)	Load loss (W)	Short-circuit impedance (%)
Rated capacity	High voltage (KV)	High pressure tap range %	Low voltage (KV)	Join group label	No-load current (%)	No-load loss (W)	Load loss (W)	Short-circuit impedance (%)
50	35 38.5	±2*2.5 ±5	0.4	Dyn11 Yy0	1.30	160	1200/1140	6.5
100					1.10	230	2010/1910
125					1.10	270	2370/2260
160					1.00	280	2820/2680
200					1.00	340	3320/3160
250					0.95	400	3950/3760
315					0.95	480	4750/4530
400					0.85	580	5740/5470
500					0.85	680	6910/6580
630					0.65	830	7860
800					0.65	980	9400
1000					0.65	1150	11500
1250					0.60	1400	13900
1600					0.60	1690	16600
2000					0.55	1990	19700
2500					0.55	2360	23200

Rated capacity	ltage combination and tapping range			Join group label	No-load current (%)	No-load loss (W)			Load loss(W)			Short-circuit impedance (%)
Rated capacity	High voltage (KV)	High pressure tap range %	Low voltage (KV)	Join group label	No-load current (%)	NX1	NX2	NX3	NX1	NX2	NX3	Short-circuit impedance (%)
3150	35 38.5	±2*2.5 ±5	3.15 6.3 10.5	Yd11	0.45	1700	2000	2400	20700	20700	21900	7.0
4000					0.45	2000	2300	2900	24600	24600	25900
5000					0.45	2400	2800	3500	28200	28200	29700
6300					0.45	2900	3400	4200	31500	31500	33300	8.0
8000			3.15 3.3 6.3 6.6 10.5	YNd11	0.35	4000	4700	5800	34600	34600	36500
10000					0.35	4800	5700	7000	40800	40800	43000
12500					0.30	5500	6500	8000	48400	48400	51100
16000					0.30	6700	7900	9700	59200	59200	62500
20000					0.30	7900	9400	11500	71600	71600	75500
25000					0.25	9400	11100	13600	84600	84600	89300	10.0
31500					0.25	1110	13100	16200	100800	100800	106400	10.0
