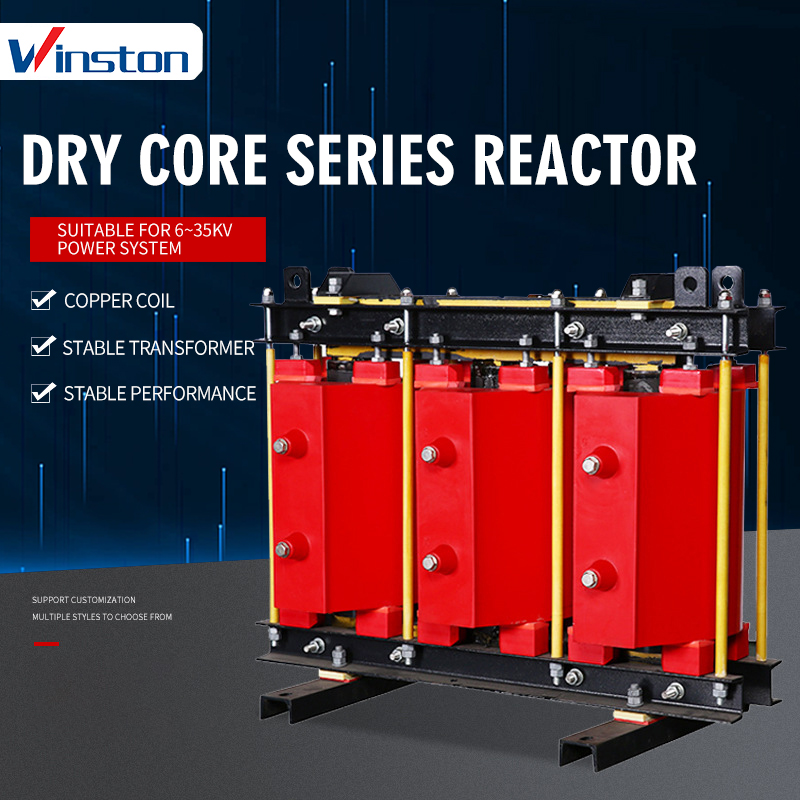

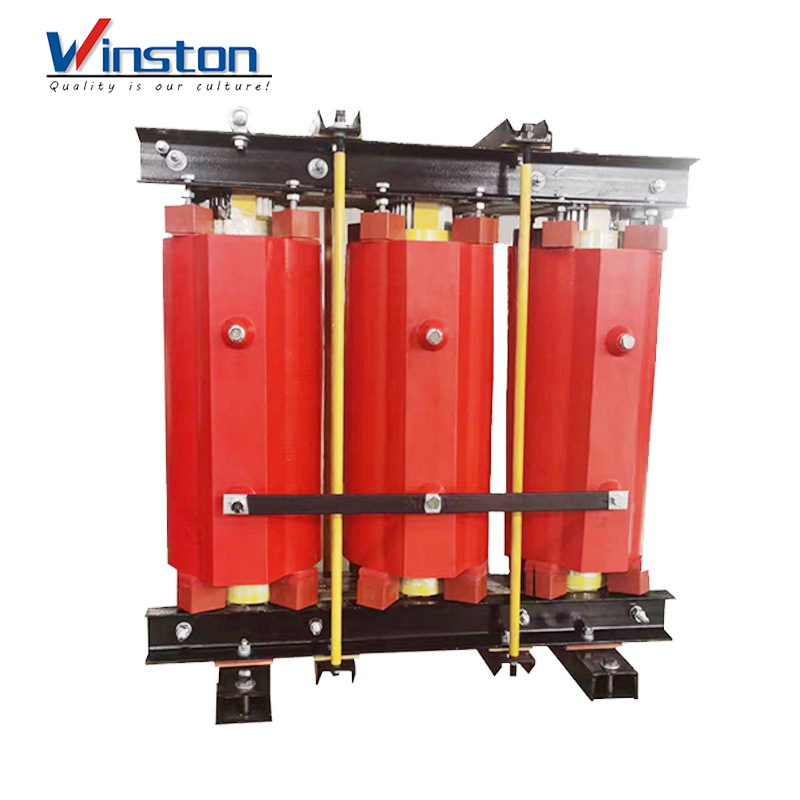

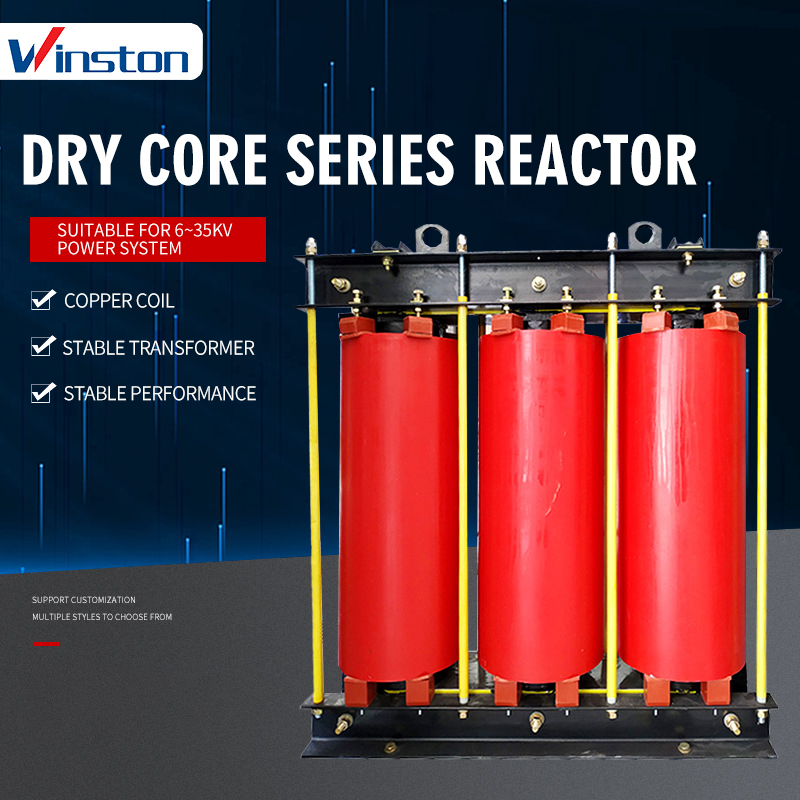

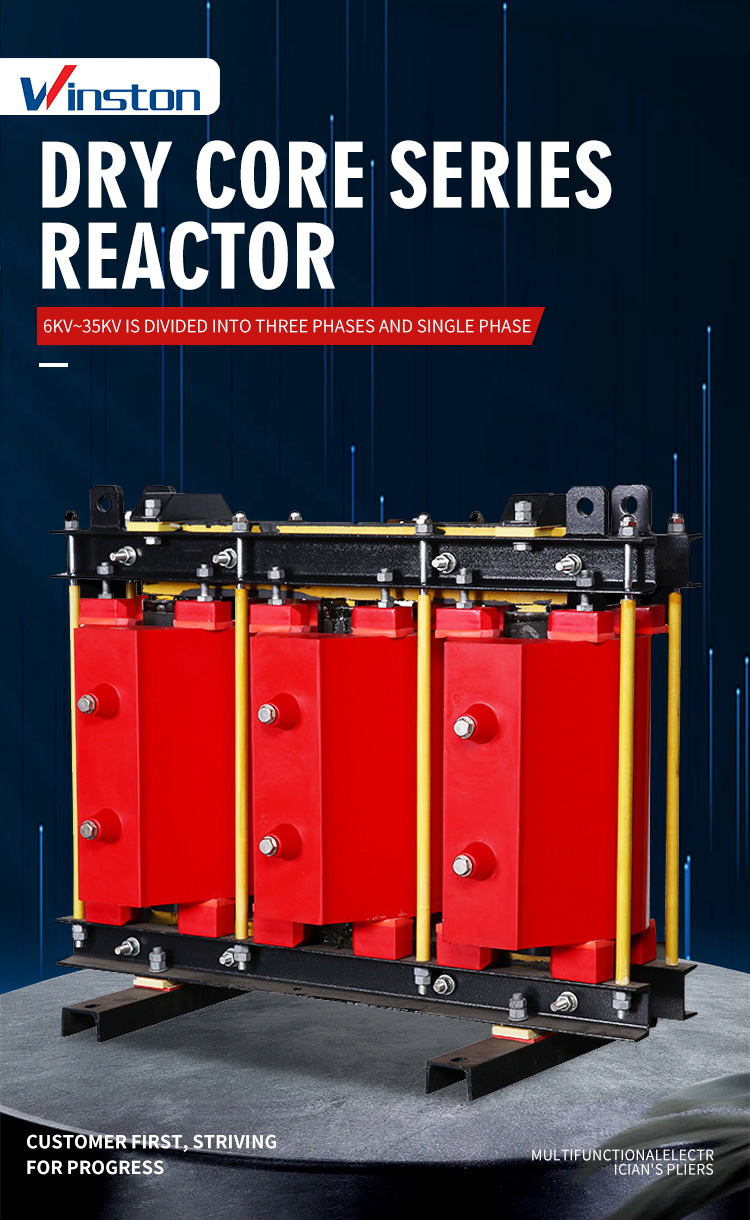

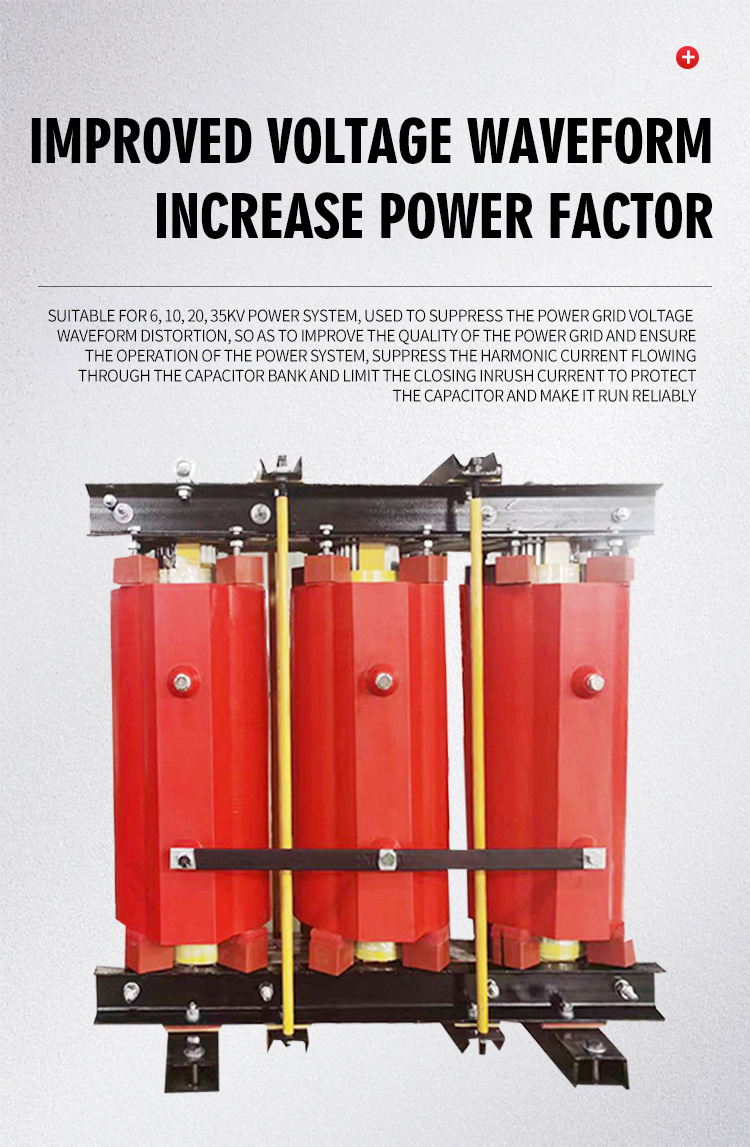

Dry core series reactor reactor 1%6%12% high voltage series filter reactor

Availability:
Quantity:
Inquire Add to Basket

  • CKSC

  • Winston

12345

6

7

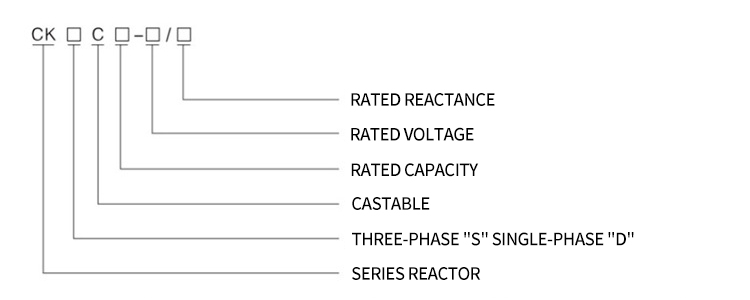

Model
Rated capacity (kvar)
Rated voltage (kv)
Reactance rate %
Rated current (A)
L*W*H(mm)
A*B(mm)
Weight (kg)
CKSC-30/6-5
30
6
5
52
930*590*1121
550*400
410
CKSC-36/6-6
36
6
6
52
930*590*1121
550*400
410
CKSC-45/6-5
45
6
5
79
960*590*1041
400*400
510
CKSC-54/6-6
54
6
6
79
960*590*1041
400*400
510
CKSC-60/6-5
60
6
5
105
970*590*1013
550*400
550
CKSC-72/6-6
72
6
6
105
910*740*1101
550*550
510
CKSC-75/6-5
75
6
5
131
910*740*1101
550*550
510
CKSC-90/6-6
90
6
6
131
940*740*1241
660*550
640
CKSC-120/6-5
120
6
5
210
1060*740*1261
550*550
830
CKSC-144/6-6
144
6
6
210
990*740*1261
550*550
790
CKSC-180/6-5
180
6
5
315
1120*740*1355
550*550
1080
CKSC-200/6-5
200
6
5
350
1260*850*1281
660*660
1200
CKSC-216/6-6
216
6
6
315
1200*740*1317
550*550
1055
CKSC-240/6-6
240
6
6
350
1200*740*1317
550*550
1075
CKSC-90/10-4.5
90
10
4.5
105
1050*740*1103
550*550
720
CKSC-108/10-4.5
108
10
4.5
126
1050*740*1163
550*550
800
CKSC-120/10-6
120
10
6
105
1030*740*1151
550*550
770
CKSC-135/10-4.5
135
10
4.5
157
1060*740*1163
550*550
790
CKSC-144/10-6
144
10
6
126
1060*740*1240
550*550
845
CKSC-162/10-4.5
162
10
4.5
189
1110*740*1181
550*550
930
CKSC-180/10-4.5
180
10
4.5
210
1210*740*1230
550*550
1280
CKSC-180/10-6
180
10
6
157
1090*740*1240
550*550
960
CKSC-189/10-4.5
189
10
4.5
220
1210*740*1285
550*550
1280
CKSC-216/10-4.5
216
10
4.5
252
1110*740*1286
550*550
1070
CKSC-216/10-6
216
10
6
189
1360*740*1265
660*660
1060
CKSC-225/10-4.5
225
10
4.5
262
1360*740*1381
660*660
1180
CKSC-240/10-6
240
10
6
210
1330*740*1126
660*660
1000
CKSC-240/10-12
240
10
12
96
1350*850*1266
660*660
1150
CKSC-243/10-6
243
10
4.5
283
1360*740*1148
660*660
1180
CKSC-252/10-6
252
10
6
220
1350*740*1186
660*660
1190
CKSC-270/10-4.5
270
10
4.5
315
1290*740*1353
660*660
1400


8
