DP-816
Winston
Feature
Two installation methods: Panel / Busbar.
Very easy to install
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installation.
Rated primary current from 5A to 5000A.
Specifications
Rated frequency | 50Hz/60Hz |
Rated test voltage | 3kv AC (1min) |
Rated short-time thermal current (lth) | 60In |
Rated dynamic current (ldyn) | 2.5lth |
Rated voltage (Um) | 0.72kv AC |
Continuous overload (ld) | 1.2In |
Operating temperature | -10°C~50°C |
Housing self-extinguishing class | VO |
Safety factor | FS 5 |
Secondary current | 5A/1A |

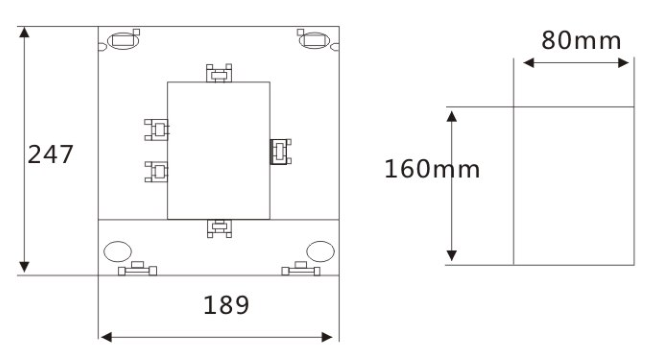

DP Series Model and Dimensions
Type | Ration (A) | Rated power (VA) | |
Class: 0.5 | Class: 1.0 | ||
DP-816 | 1000/5 | 5 | 10 |
DP-816 | 1500/5 | 7.5 | 10 |
DP-816 | 2000/5 | 10 | 15 |
DP-816 | 2500/5 | 15 | 20 |
DP-816 | 3000/5 | 20 | 25 |
DP-816 | 4000/5 | 20 | 25 |
DP-816 | 5000/5 | 20 | 25 |
DP-816 | 6000/5 | 20 | 25 |
