Winston LMF1 5mm decetion NPN PNP Angular column type proximity sensor

Quantity:
  • LMF1
  • Winston
Model Explanation


  LMF1 Detection Distance 5mm
          Flush   DC 6-36VDC NPN NO LMF1-3005NA
NC LMF1-3005NB
PNP NO LMF1-3005PA
NC LMF1-3005PB
Two wire system NO LMF1-3005LA
NC LMF1-3005LB
Detection Distance
Non-Flush  AC90-250VAC SCR
Control-lable silicon
NO LMF1-2005A
NC LMF1-2005B
Control  output          DC 200mA
   SCR/Relay 300mA
Output vol;tage drop DC/AC DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
Consumption current DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
standard detected object 20*20*1 (A3 iron)
Repeated precision 0.02
DC/AC 400Hz/25Hz
Working environment temperature -25ºC ~ + 75 ºC
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67

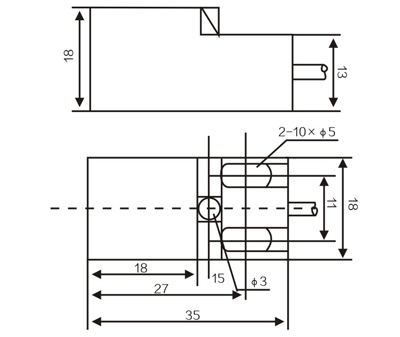

Overall dimensions


Application

application (2).jpg

Packaging & Shipping
