Winston PR18 5mm 8mm detection npn pnp proximity switch sensor with ce

Availability:
Quantity:
  • PR18

  • Winston

Model Explanation
PR18 Detection   Distance 5mm
Flush DC 6-36VDC NPN NO PR18-5DN
NC PR18-5DN2
NO+NC PR18-5DN3
PNP NO PR18-5DP
NC PR18-5DP2
NO+NC PR18-5DP3
Two wire system NO PR18-5DO
NC PR18-5DC
AC90-250VAC SCR                   Control-lable silicon NO PR18-5AO
NC PR18-5AC
Detection   Distance 8mm
Non-Flush DC 6-36VDC NPN NO PR18-8DN
NC PR18-8DN2
NO+NC PR18-8DN3
PNP NO PR18-8DP
NC PR18-8DP2
NO+NC PR18-8DP3
Two wire system NO PR18-8DO
NC PR18-8DC
AC90-250VAC SCR                   Control-lable silicon NO PR18-8AO
NC PR18-8AC
Control    output DC 200mA
SCR/Relay 300mA
Output vol;tage drop DC/AC DC (NPN PNP) type 3V or less,Two wire 3.9Vor   less, AC 10Vor less DC
Consumption current DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or   less DC
Repeated precision 0.5
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 65 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

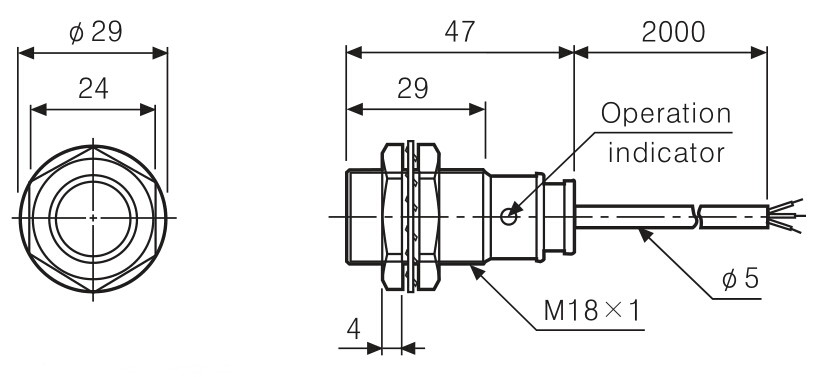

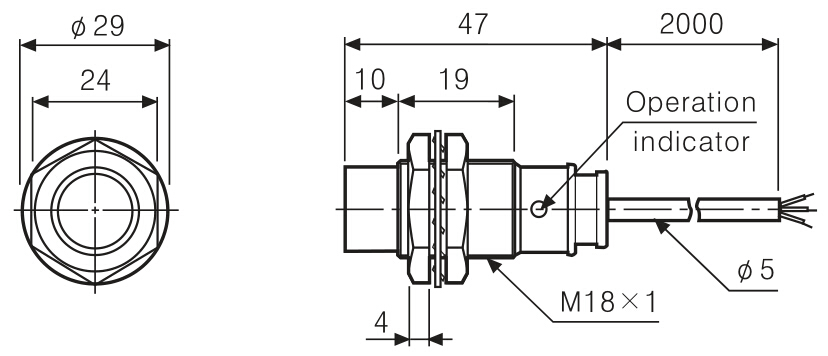

Overall dimensions

 pr18- 5.jpg

pr18 -8.jpg

Application

 application (2).jpg
