Winston E2E-X8 flush E2E-X10 non-flush 8mm 10mm connector type sensor

Quantity:
  • E2E-X8, E2E-X10
  • Winston
Model Explanation

E2E-X8 Detection   Distance 8mm
Flush DC 6-36VDC NPN NO E2E-X8E1
NC E2E-X8E2
NO+NC E2E-X8E3
PNP NO E2E-X8F1
NC E2E-X8F2
NO+NC E2E-X8F3
Two wire system NO E2E-X8D1
NC E2E-X8D2
AC90-250VAC SCR                   Control-lable silicon NO E2E-X8Y1
NC E2E-X8Y2
E2E-X10 Detection Distance 10mm
Non-Flush DC 6-36VDC NPN NO E2E-X10ME1
NC E2E-X10ME2
NO+NC E2E-X10ME3
PNP NO E2E-X10MF1
NC E2E-X10MF2
NO+NC E2E-X10MF3
Two wire system NO E2E-X10MD1
NC E2E-X10MD2
AC90-250VAC SCR                   Control-lable silicon NO E2E-X10MY1
NC E2E-X10MY2
Control    output DC 200mA
SCR/Relay 300mA
Output vol;tage drop DC/AC DC (NPN PNP) type 3V or less,Two wire 3.9Vor   less, AC 10Vor less DC
Consumption current DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or   less DC
Repeated precision 0.5
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 65 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

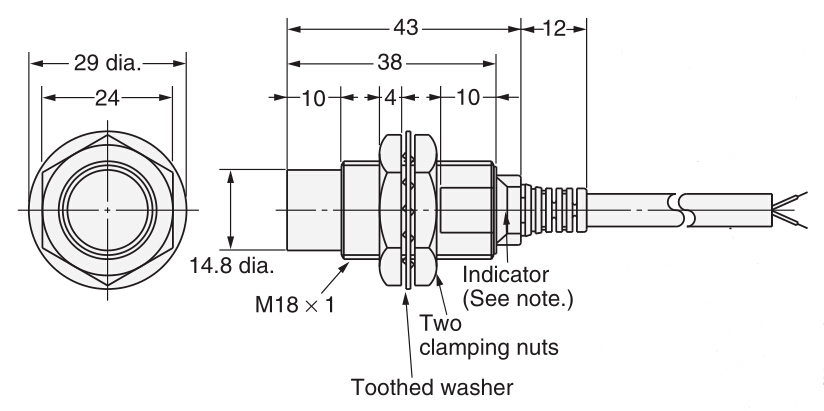

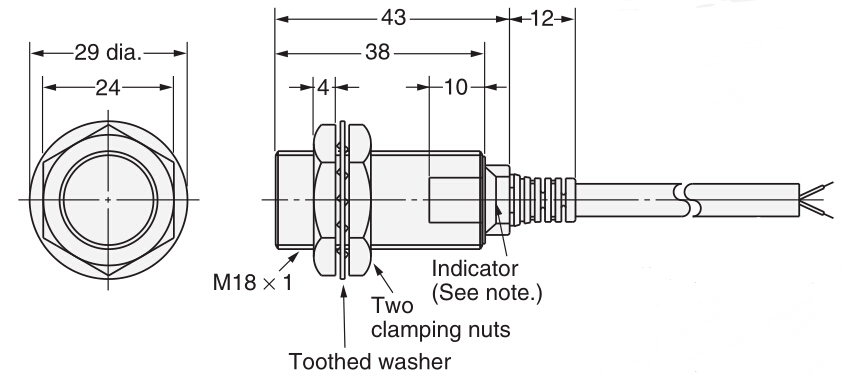

Overall dimensions



x10 f.jpg

Application

 application (2).jpg

Packaging & Shipping



Professional manufacturer, quality is our culture!
