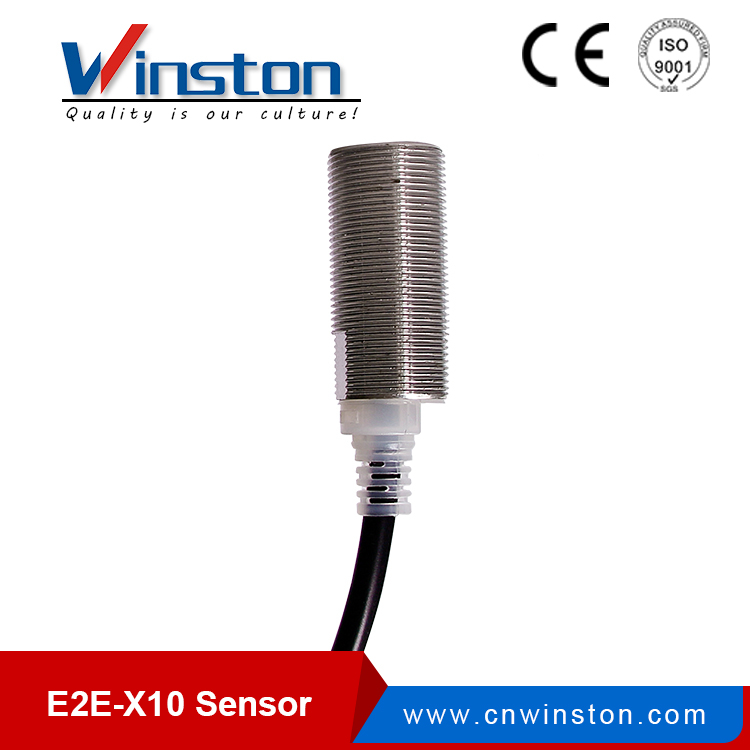

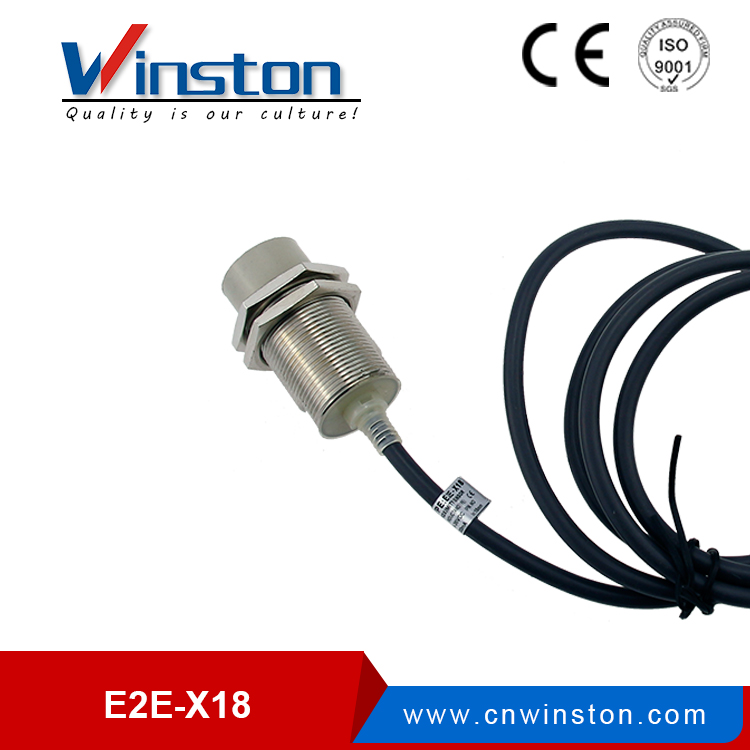

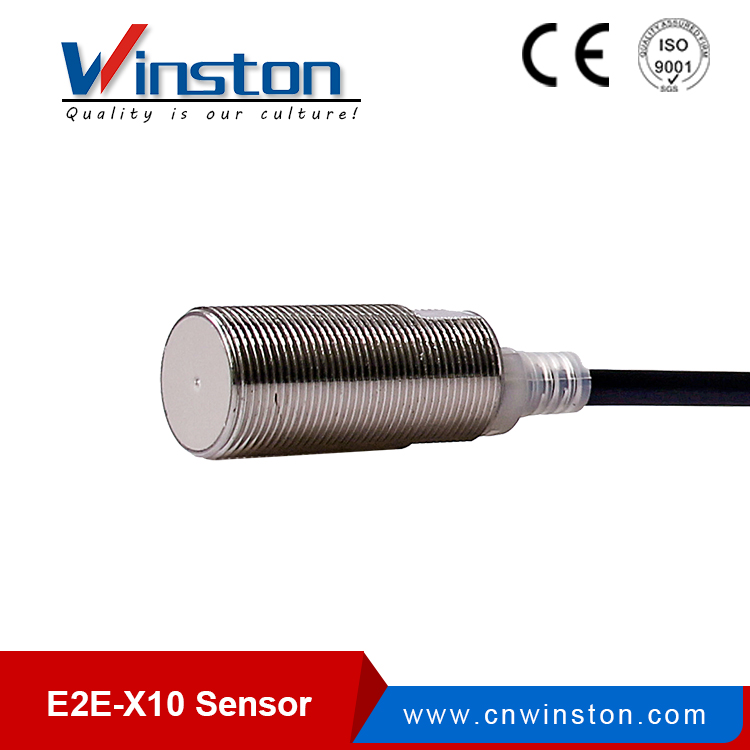

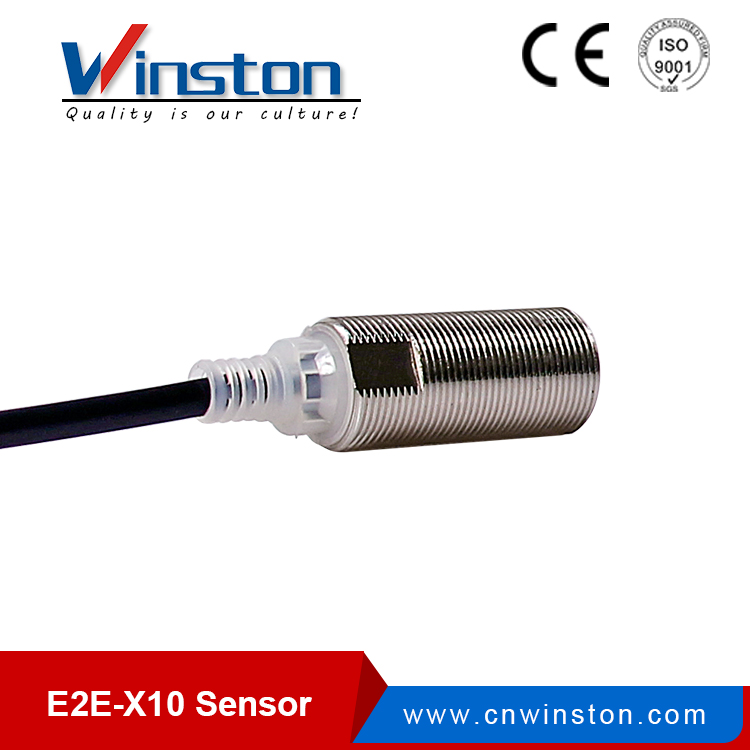

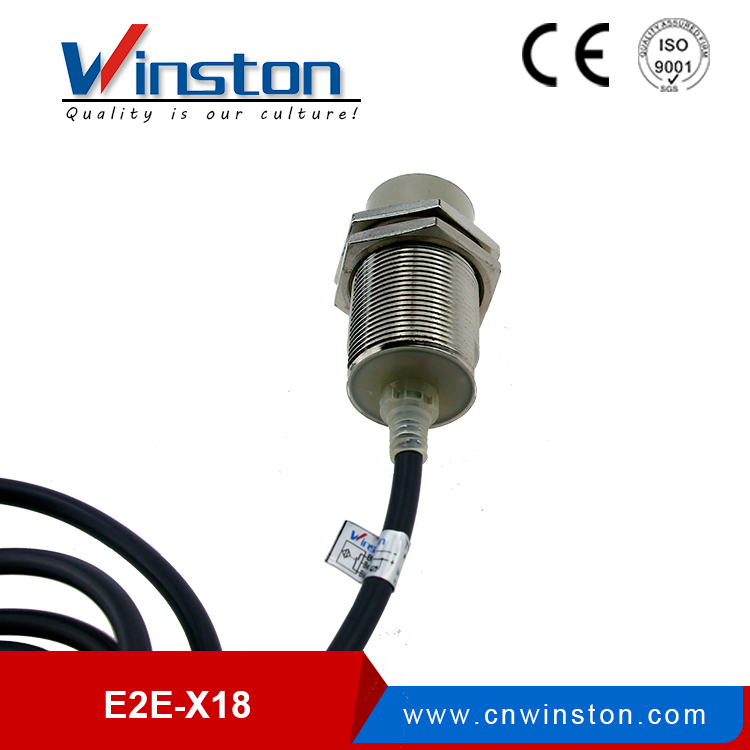

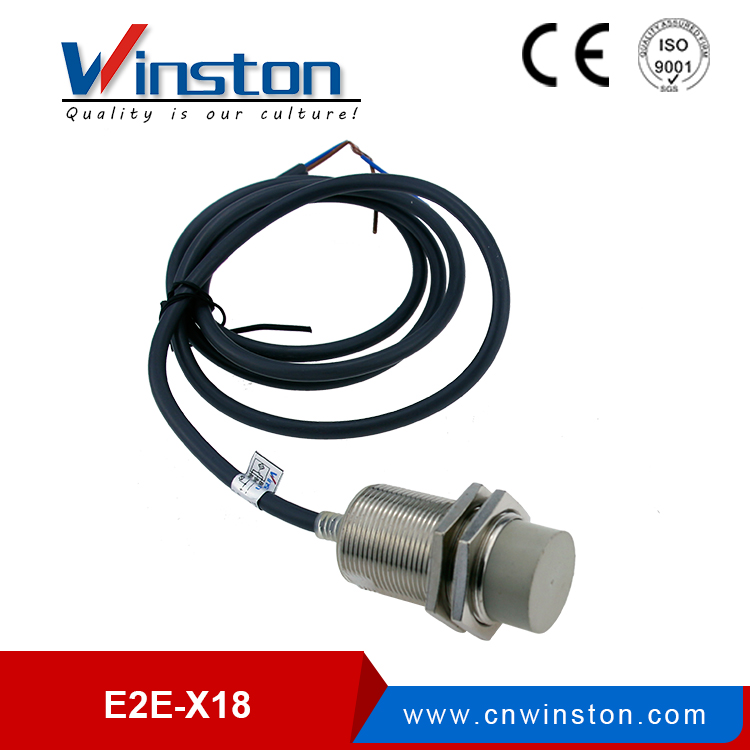

E2E-X10 E2E-X18 10mm 18mm NPN PNP Flush Non-flush Inductive Switch Sensor

Quantity:
  • E2E-X10, E2E-X18
  • Winston

Model Explanation


E2E-X10 Detection   Distance 10mm
Flush DC 6-36VDC NPN NO E2E-X10E1
NC E2E-X10E2
NO+NC E2E-X10E3
PNP NO E2E-X10F1
NC E2E-X10F2
NO+NC E2E-X10F3
Two wire system NO E2E-X10D1
NC E2E-X10D2
AC90-250VAC SCR                   Control-lable silicon NO E2E-X10Y1
NC E2E-X10Y2
E2E-X18 Detection Distance 18mm
Non-Flush DC 6-36VDC NPN NO E2E-X18ME1
NC E2E-X18ME2
NO+NC E2E-X18ME3
PNP NO E2E-X18MF1
NC E2E-X18MF2
NO+NC E2E-X18MF3
Two wire system NO E2E-X18MD1
NC E2E-X18MD2
AC90-250VAC SCR                   Control-lable silicon NO E2E-X18MY1
NC E2E-X18MY2
Control    output DC 200mA
SCR/Relay 300mA
Output vol;tage drop DC/AC DC (NPN PNP) type 3V or less,Two wire 3.9Vor   less, AC 10Vor less DC
Consumption current DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or   less DC
Repeated precision 0.5
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 65 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

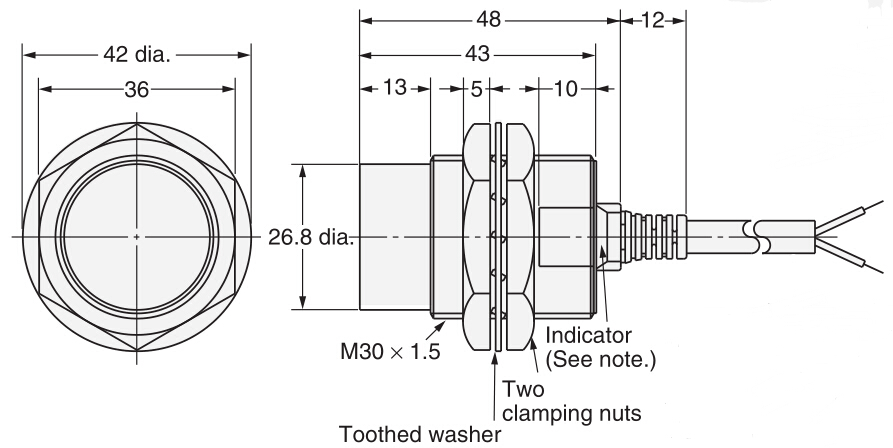

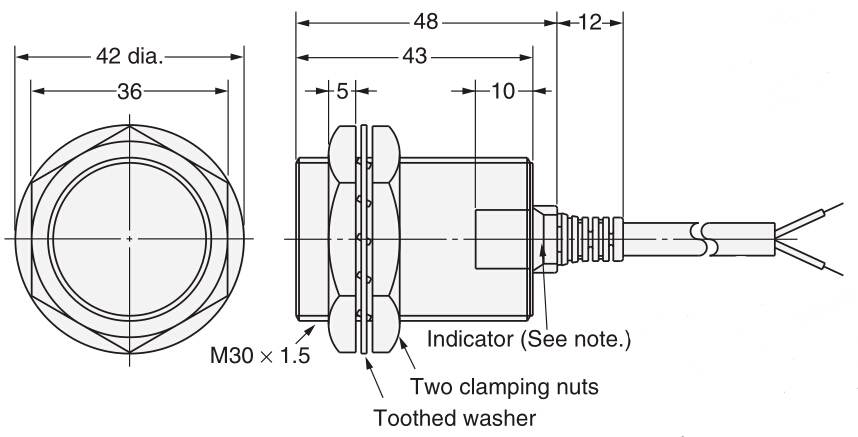

Overall dimensions

 x10-1 30.jpg

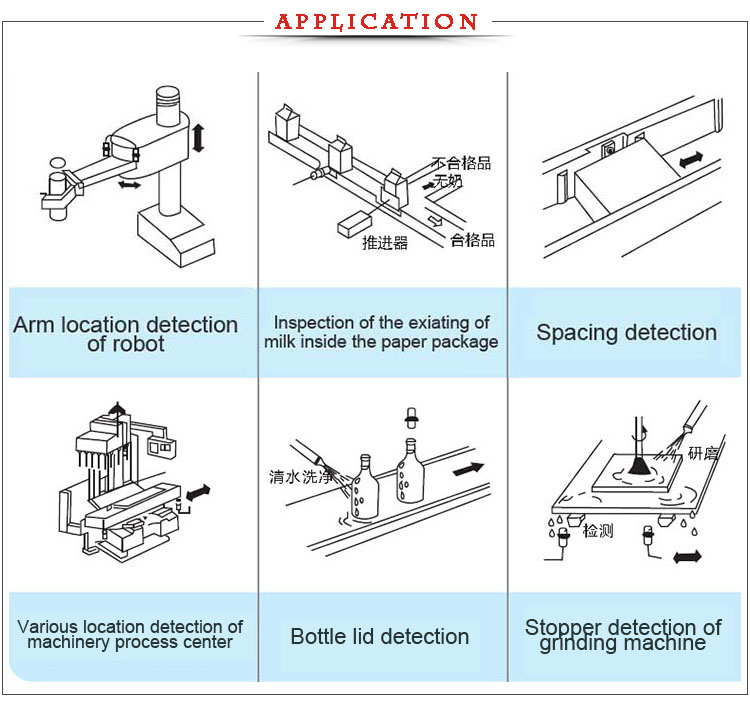

Application



Packaging & Shipping






Professional manufacturer, quality is our culture!
