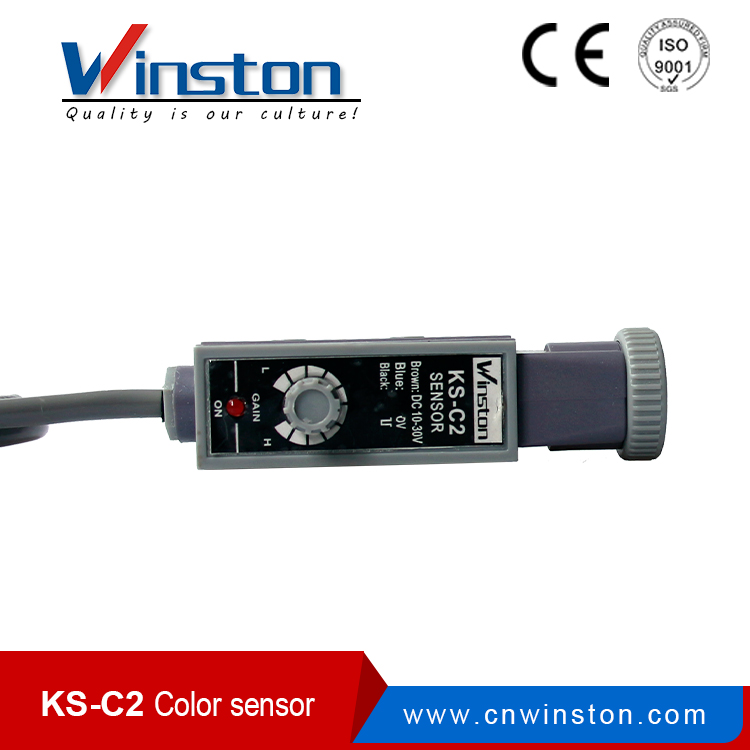

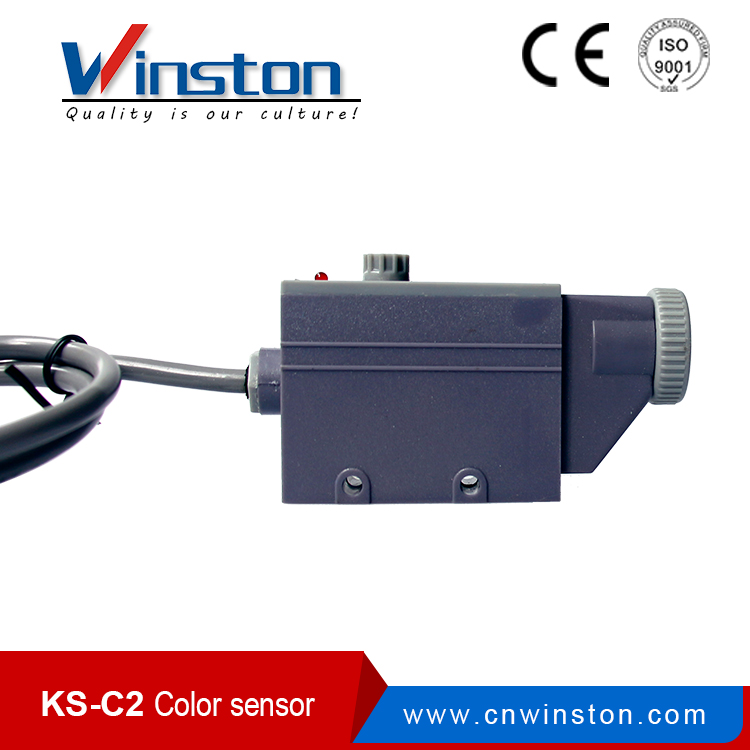

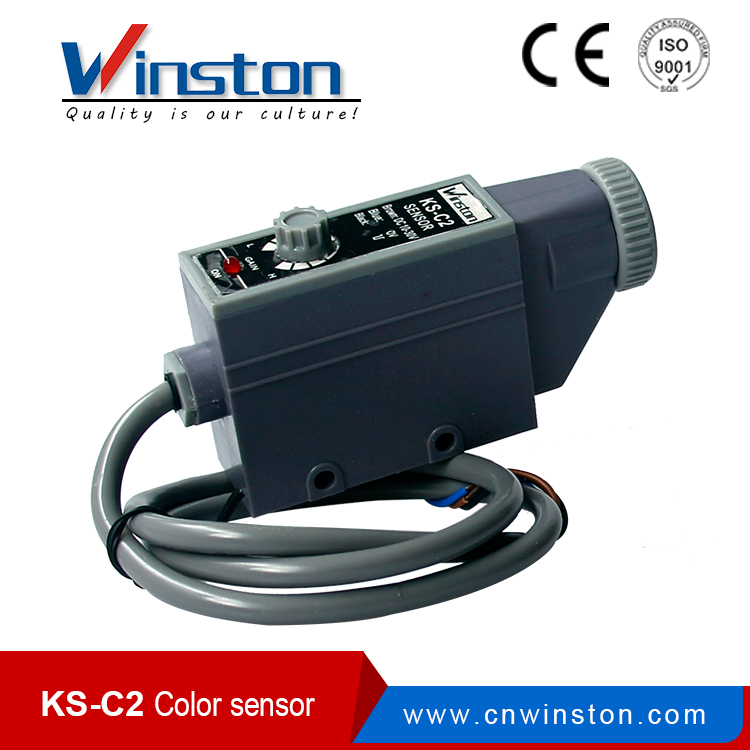

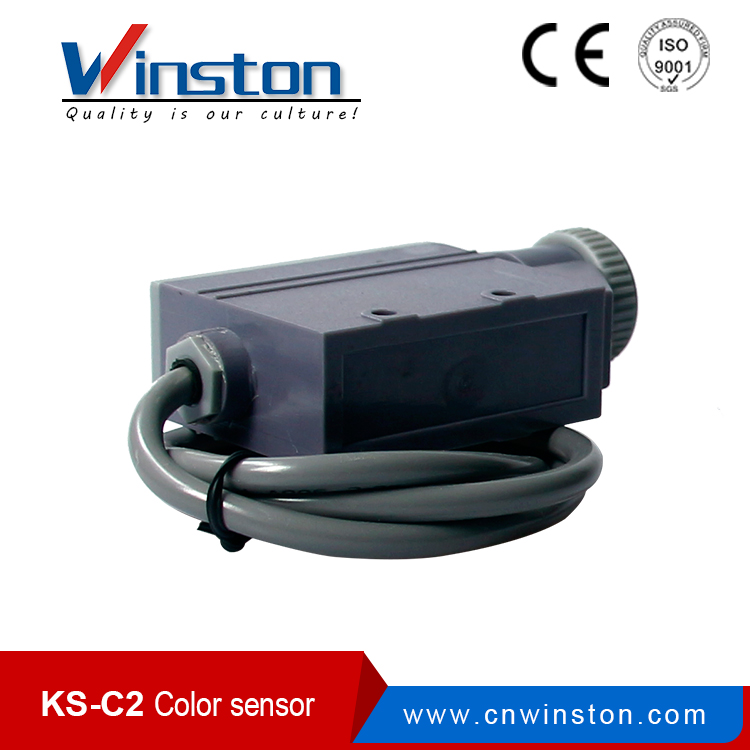

Winston color sensor proximity sensor KS-C2

1. Outputting white and green light for option.
2. Coaxial reflective type optical design
3. Small light spot, precise detection.
4. Output short circuit protection design.
5. Power supply: DC 10-30V.

	KS-C2W	KS-C2G	KS-C2R	KS-C2R/G	KS-C2W/G
Light source	White	Green	Red	Red/green	White/green
Detection	coaxial reflective type
Detection distance	10mm±2mm
Cast bare point	1.0mm
Supply voltage	DC10-30V
Power consumption	45mA or less
Response time	Less 1mS
Output form	NPN type lights moving / dark dynamic dual output
Protection function	Supply voltage reverse polarity protection, short-circuit protection
Operation instruction	red LED, bright Activity directions
Operating ambient	temperature: -15 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux
Lead	four-core cable (brown, yellow, white, blue) standard length 2m

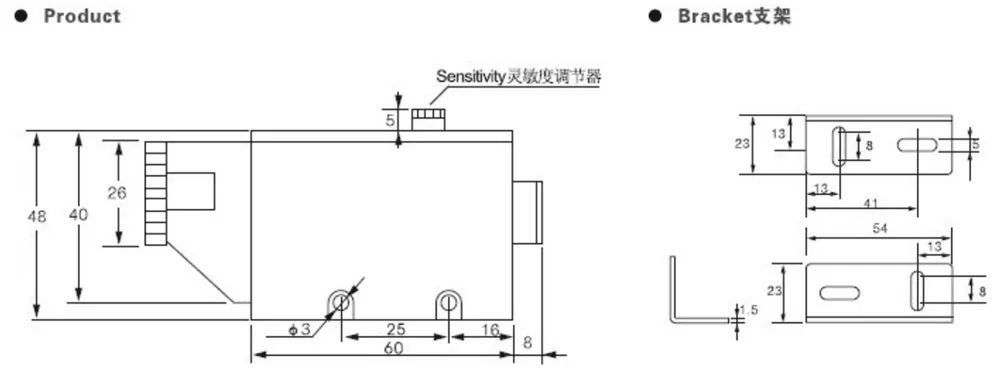

Dimensions
