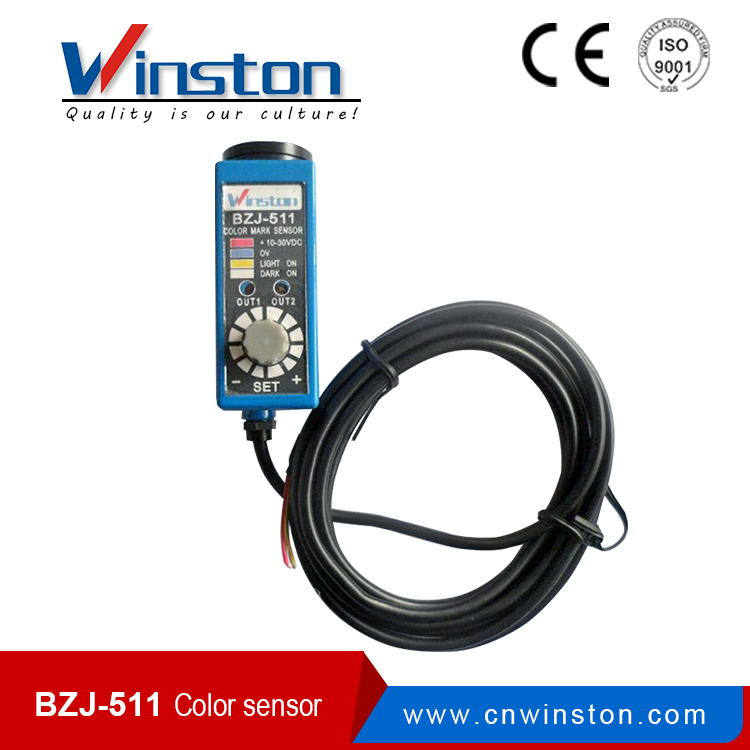

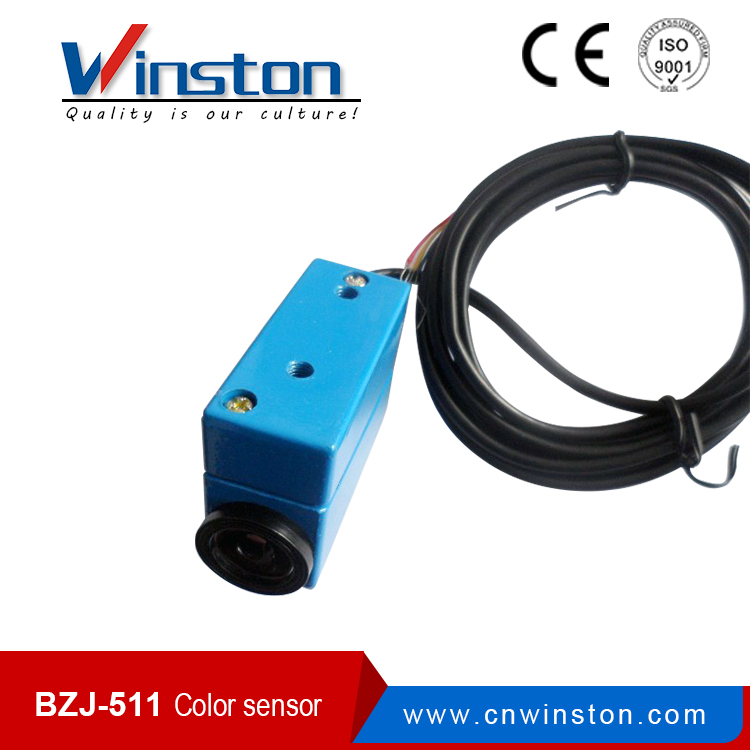

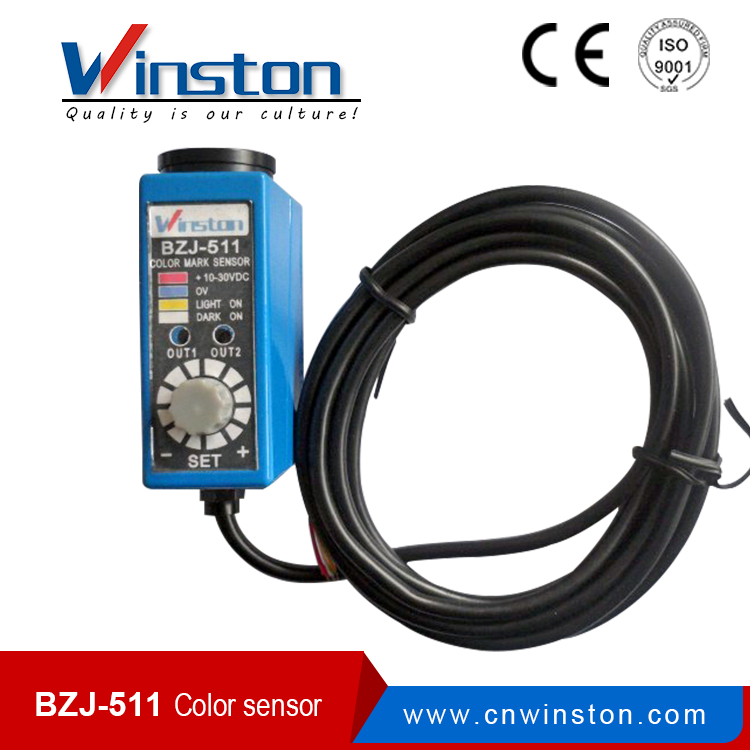

BZJ-511
Winston
| Outward appearance code | BZJ511 |
| Size(mm) | 23*40*56 |
| Supply voltage | 10-30VDC |
| Ambient temperature | 0-50 ºC |
| Detecting method | Coaxial reflection |
| Sensing distance | 9mm |
| Chromatogram of light | Red, Green, Blue, White |
| Facula | Circular |
| Response time | 200us/500us |
| Output current | <200mA |
| Output type | NPN |
| Shell material | Metal |
| Cable Length | 2m |
| Protrction | RP-power protection,Load short-circuit protection |
| Weight | 180g |
| Outward appearance code | BZJ511 |
| Size(mm) | 23*40*56 |
| Supply voltage | 10-30VDC |
| Ambient temperature | 0-50 ºC |
| Detecting method | Coaxial reflection |
| Sensing distance | 9mm |
| Chromatogram of light | Red, Green, Blue, White |
| Facula | Circular |
| Response time | 200us/500us |
| Output current | <200mA |
| Output type | NPN |
| Shell material | Metal |
| Cable Length | 2m |
| Protrction | RP-power protection,Load short-circuit protection |
| Weight | 180g |
