High sensitivity Photoelectric color mark sensor Z3N-TB22

Availability:
Quantity:
Inquire Add to Basket

  • Z3N-TB22

  • Winston

Technical parameter

1. Coaxial reflective type optical design
2. Small light spot, precise detection.
3. Output short circuit protection design.
4. Power supply: DC 10-30V.


Color Mark Sensor
Outward appearance code Z3N-TB22
Size(mm) 28× 48× 80
Supply Voltage 10-30V DC
Ambient temperature -15℃-65℃
Detecting method Coaxial reflection
Examination distance 10mm± 2mm
Chromatogram of light Red/Green/Blue/White
Facula Circular
Response time 0.1-1ms
Output current 200mA
Output type NPN/PNP
Shell material Mental
Cable length 2m
Gross Weight 410g

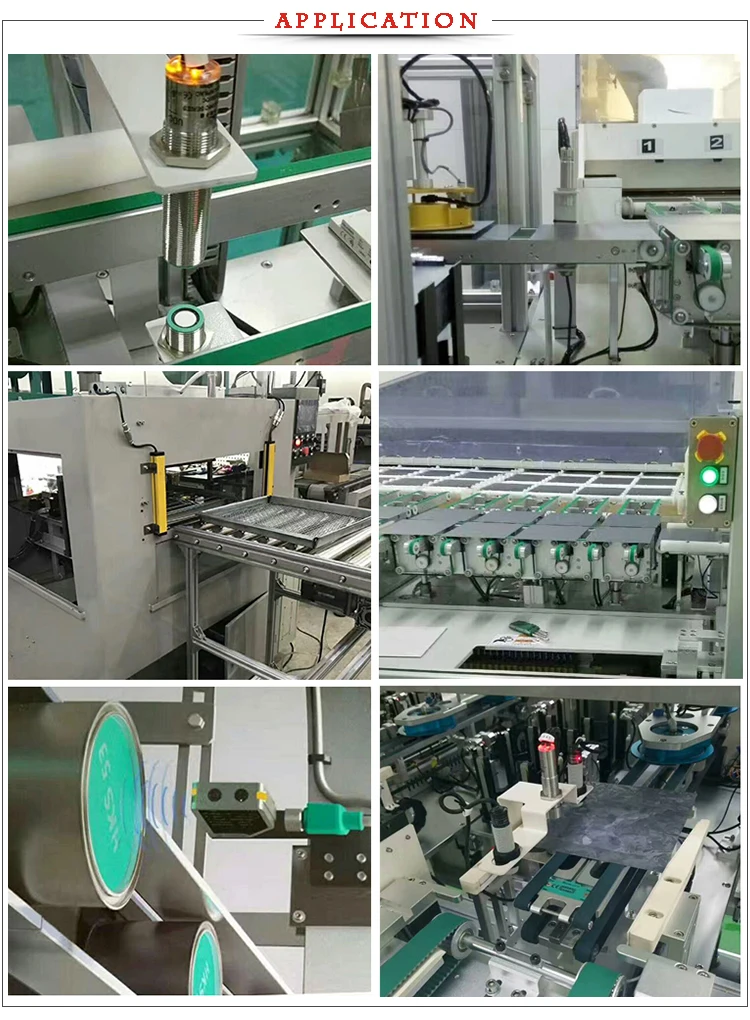

Application

Winston Z3N series of color mark sensor,colour mark sensor Z3N-TB22Winston Z3N series of color mark sensor,colour mark sensor Z3N-TB22

Packaging & Shipping

Winston Z3N series of color mark sensor,colour mark sensor Z3N-TB22
