BZJ series of color marking sensor color sensor

Availability:
Quantity:
  • BZJ-211

  • Winston

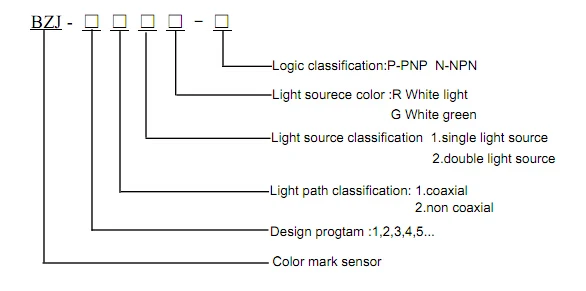

Model Explation

Winston BZJ Series sensor,color mark sensor,sensor switch BZJ-211

Technical parameter

1,CE Approval
2,Widely use in life
3,High Frequency
4,Long Service life, Compact Volume, Convenient Installation



Outward appearance code BZJ-211 BZJ-411
Size(mm) 85*57*28mm 23*40*56mm
Supply voltage 10-30VDC 10-30VDC
Ambient temperature 0-50 ºC 0-50 ºC
Detecting method Coaxial reflection Coaxial reflection
Sensing  distance 10mm±2mm 9mm
Chromatogram of light Red, Green, Blue, White Red, Green, Blue, White
Facula Circular Circular
Response time 50us/500us 200us/500us
Output current <200mA <200mA
Output type NPN NPN
Shell material Metal Metal
Cable Length 2m 2m
Protrction RP-power protection,Load short-circuit protection RP-power protection,Load short-circuit protection
Weight 300g 200g
Application

Winston BZJ Series sensor,color mark sensor,sensor switch BZJ-211Winston BZJ Series sensor,color mark sensor,sensor switch BZJ-211

Packaging & Shipping

Winston BZJ Series sensor,color mark sensor,sensor switch BZJ-211
