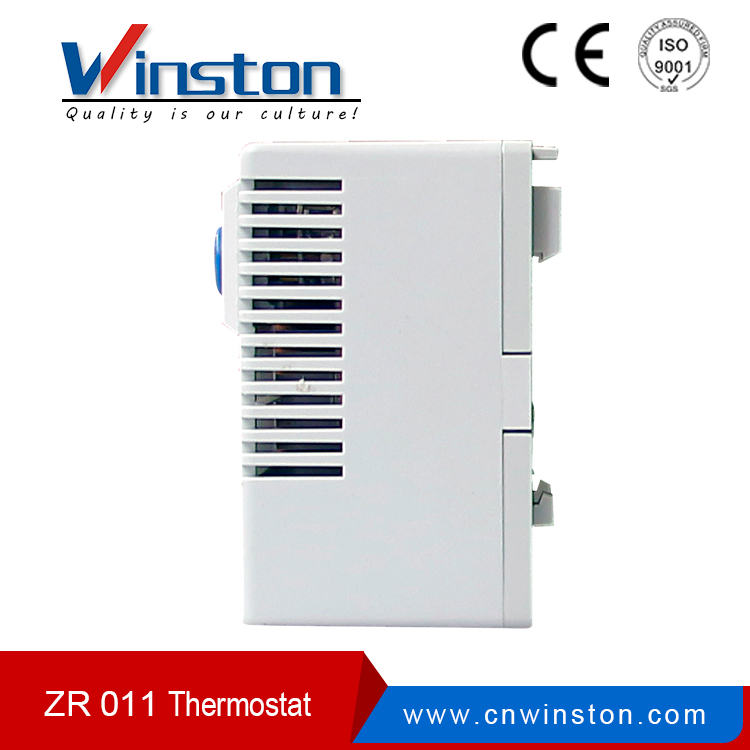

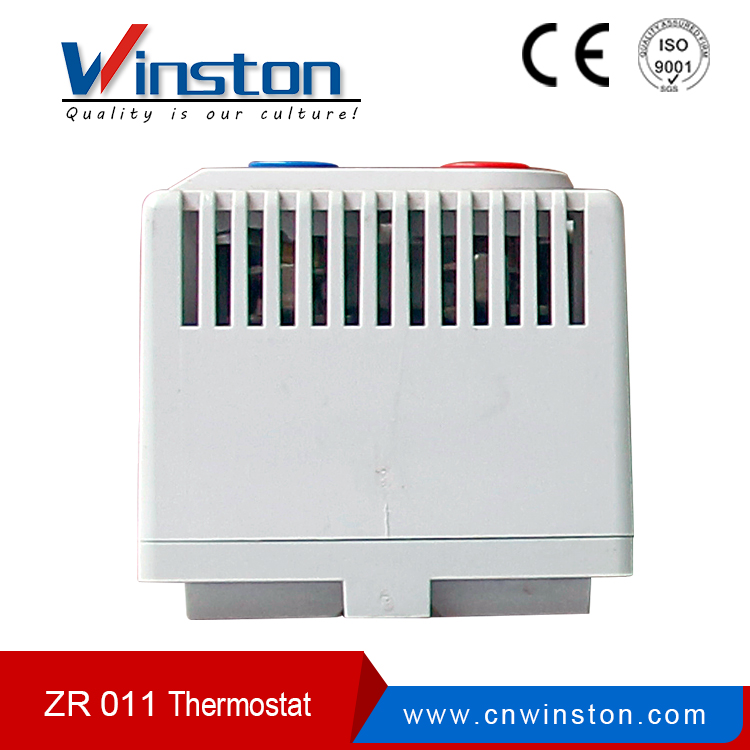

ZR 011
Winston
Features
NC / NO or NO / NO in one unit
Separate adjustable temperatures

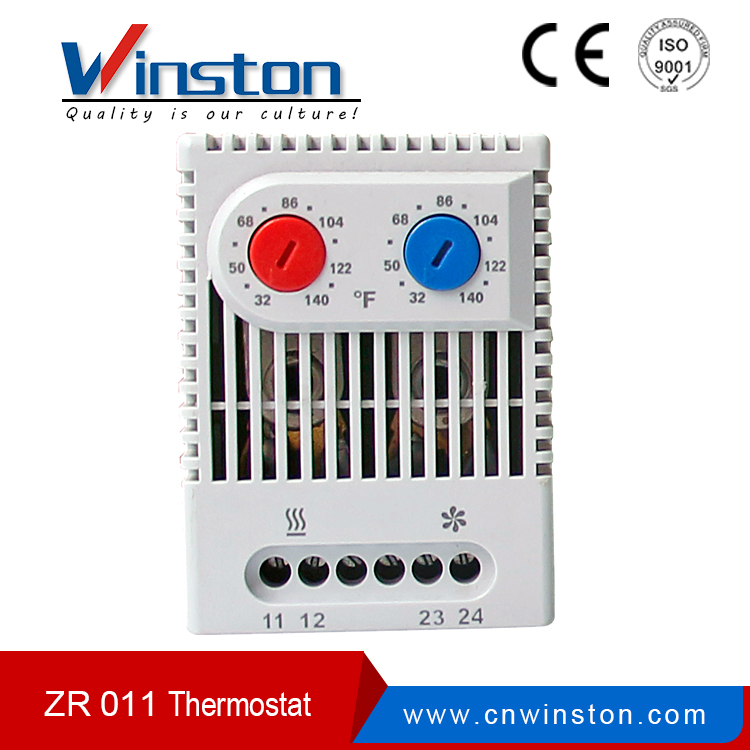

Color coded temperature dials
DIN rail mountable
The ZR 011 houses two separate thermostats, allowing the independent control of heating and
cooling or other equipment.
Thermostat NC (normally closed):
Thermostat opens at temperature rise - for regulating heaters or for switching signal devices.
Comes with red temperature dial.
Thermostat NO (normally open):
Thermostat closes at temperature rise - for regulating filter fans and heat exchangers or for
switching signal devices. Comes with blue temperature dial.
Technical data
| Model | ZR 011 Thermostat |
| Switching difference | 12.6 °F ± 7 °F tolerance (7 K ± 4 K) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. switching capacity | NC: 10 A resistive / 2 A inductive at AC 250 V |
| NO: 5 A resistive / 2 A inductive @ AC 250 V | |
| 15 A resistive / 2 A inductive @ AC 120 V | |
| DC 30 W | |
| Max. inrush current | AC 16 A for 10 sec. |
| Connection | 4-pole terminal, clamping torque 0.5 Nm max.: |
| solid wire - AWG 14 max. (2.5 mm²) | |
| stranded wire (w/ wire end ferrule) - AWG 16 max. (1.5 mm²) | |
| Housing | plastic, UL 94V-0, light grey |

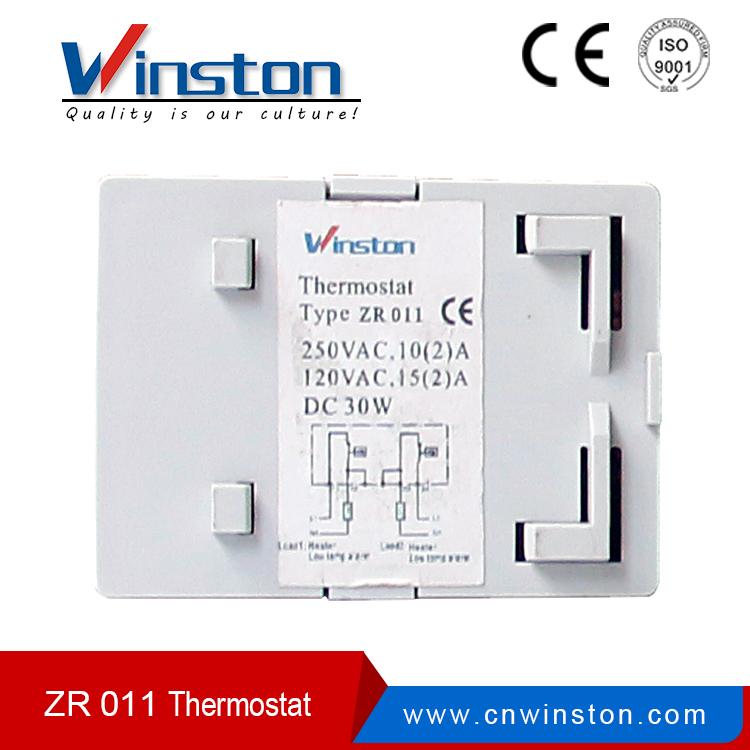

| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Mounting position | vertical |
| Operating / Storage temperature | -49 to +176 °F (-45 to +80 °C) |
| Dimensions | 2.6 x 2.0 x 1.8” (67 x 50 x 46 mm) |
| Weight | approx. 3.2 oz. (90 g) |
| Protection type | IP20 |
| Approvals | UL File No. E164102, CSA, VDE |
| Part No. | Setting Range | Setting Range | ||
| 01172.0-00 | NC - open on rise | 0 to +60 °C | NO - close on rise | 0 to +60 °C |
| 01172.0-01 | NC - open on rise | +32 to +140 °F | NO - close on rise | +32 to +140 °F |
| 01175.0-00 | NC - open on rise | -10 to +50 °C | NO - close on rise | +20 to +80 °C |
| 01175.0-01 | NC - open on rise | 14 to +122 °F | NO - close on rise | +68 to +176 °F |
| 01176.0-00 | NO - close on rise | 0 to +60 °C | NO - close on rise | 0 to +60 °C |
| 01176.0-01 | NO - close on rise | +32 to +140 °F | NO - close on rise | +32 to +140 °F |
