KTS 011
Winston
Features
Compact design
Wide adjustment range
Color coded temperature dials
DIN rail mountable

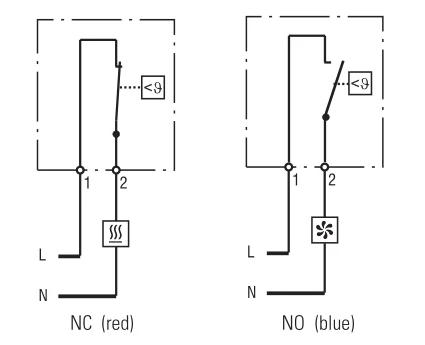

Thermostat NC (normally closed)

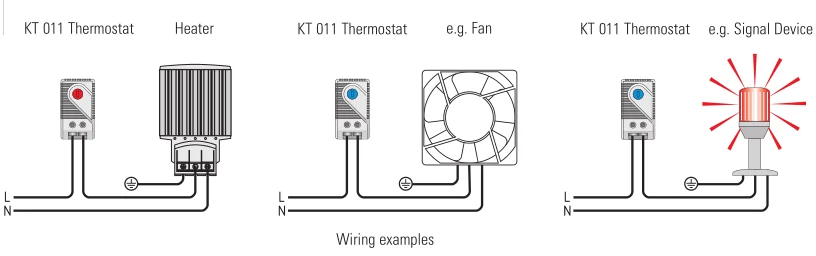

Thermostat opens on temperature rise - for regulating heaters or for switching signal devices.
Comes with red temperature dial.
Thermostat NO (normally open)
Thermostat closes on temperature rise - for regulating filter fans and heat exchangers or for
switching signal devices. Comes with blue temperature dial.
Technical data
| Model | KTS 011 Thermostat |
| Switching difference | 12.6 °F ± 7 °F tolerance (7 K ± 4 K) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. switching capacity | 15 A resistive / 2 A inductive @ AC 120 V |
| 10 A resistive / 2 A inductive @ AC 250 V | |
| DC 30 W | |
| Max. inrush current | AC 16 A for 10 sec. |
| Connection | 2-pole terminal, clamping torque 0.5 Nm max.: |
| solid wire - AWG 14 max. (2.5 mm²) | |
| stranded wire (with wire end ferrule) - AWG 16 (1.5 mm²) | |
| Housing | plastic, UL 94V-0, light grey |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| (or for Exhaust Filter EF 118 Series) | |
| Mounting position | vertical |
| Operating / Storage temperature | -49 to +176 °F (-45 to +80 °C) |

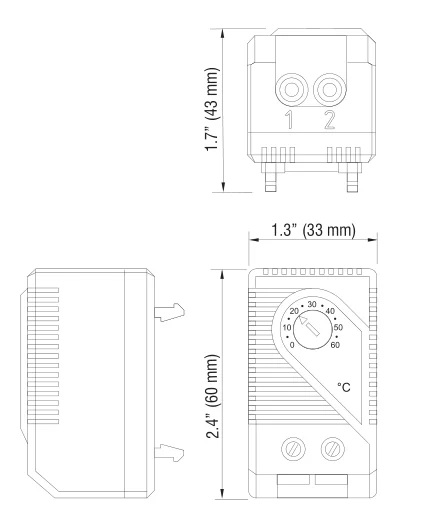

| Dimensions | 2.4 x 1.3 x 1.7” (60 x 33 x 43 mm) |
| Weight | approx. 1.4 oz. (40 g) |
| Protection type | IP20 |
| Setting range | Part No.(NC) | Part No. (NO) |
| +32 to +140 °F | 01140.9-00 | 01141.9-00 |
| 0 to +60 °C 0 | 1146.9-00 | 01147.9-00 |
| -10 to +50 °C | 01142.0-00 | N/A |
| +10 to +70 °C | N/A | 01149.9-00 |
| -15 to +45 °C | 01157.0-00 | 01156.0-00 |
| +20 to +80 °C | 01159.0-00 | 01158.0-00 |
