7T.81-230
Winston

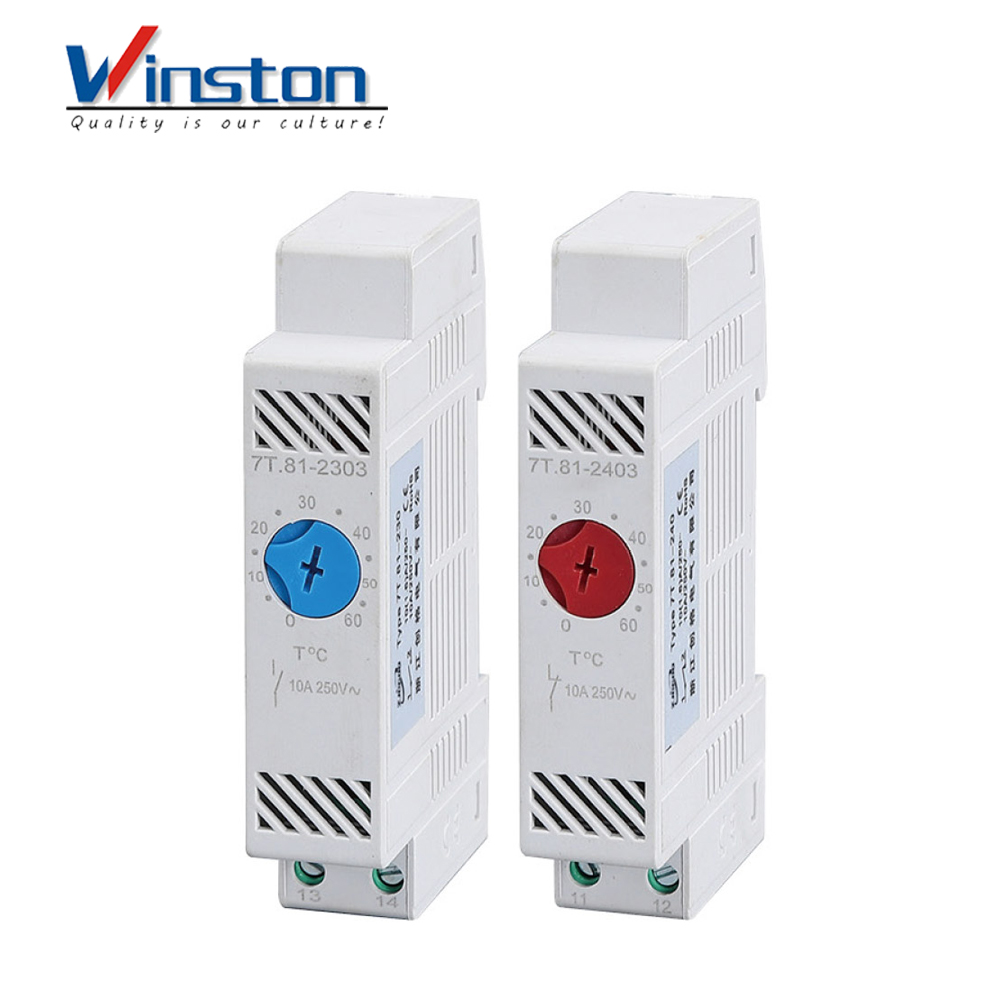

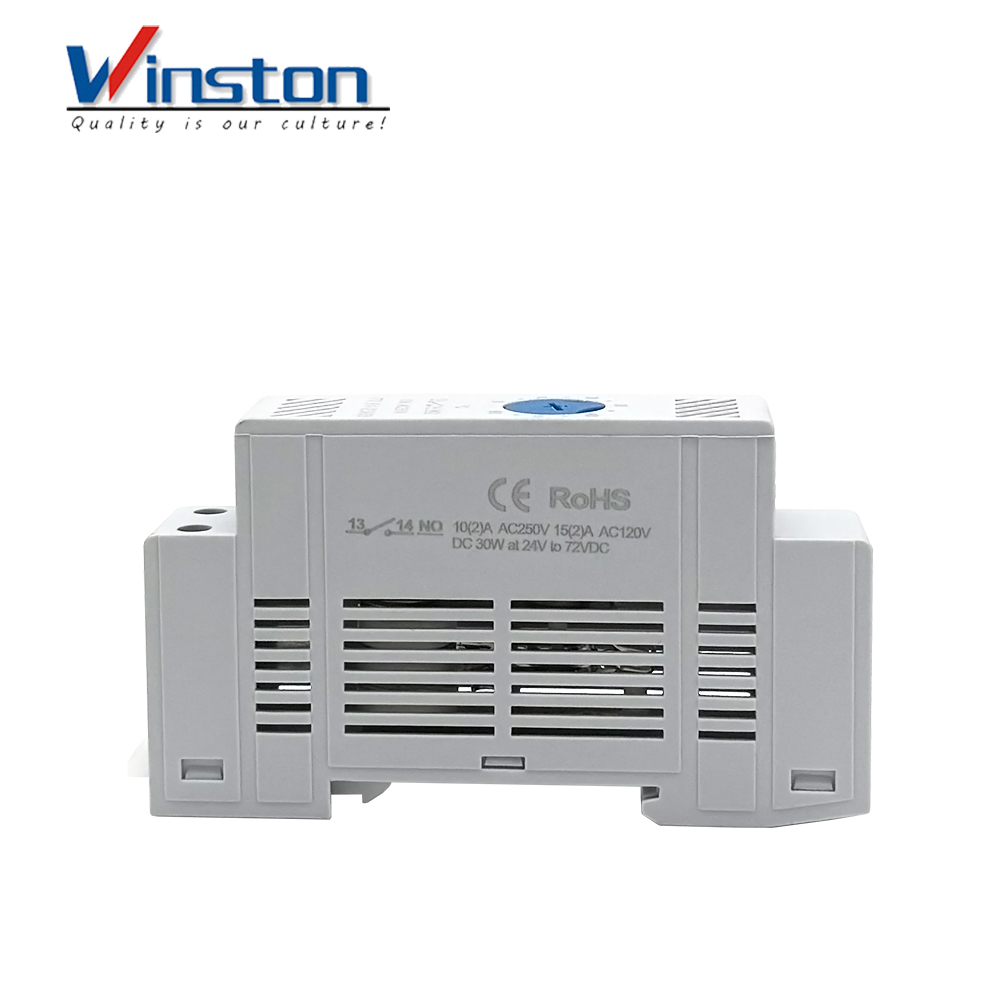

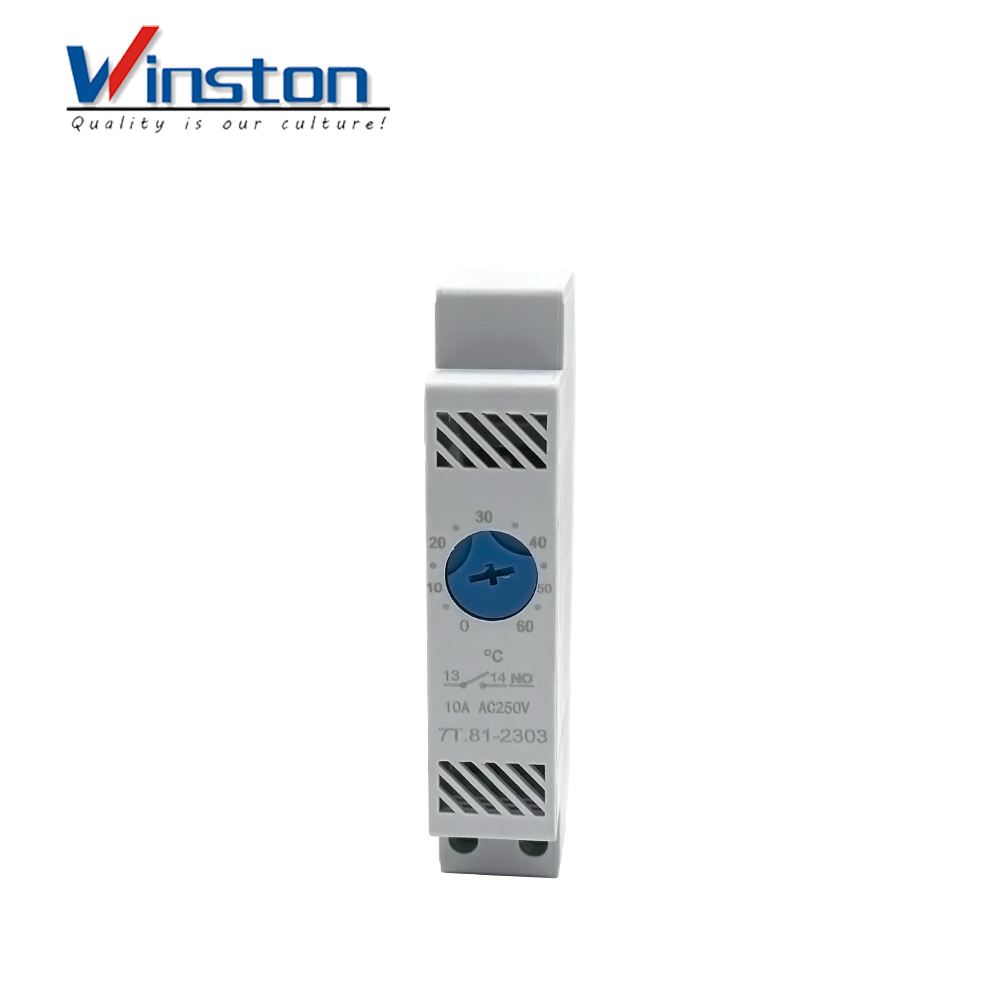

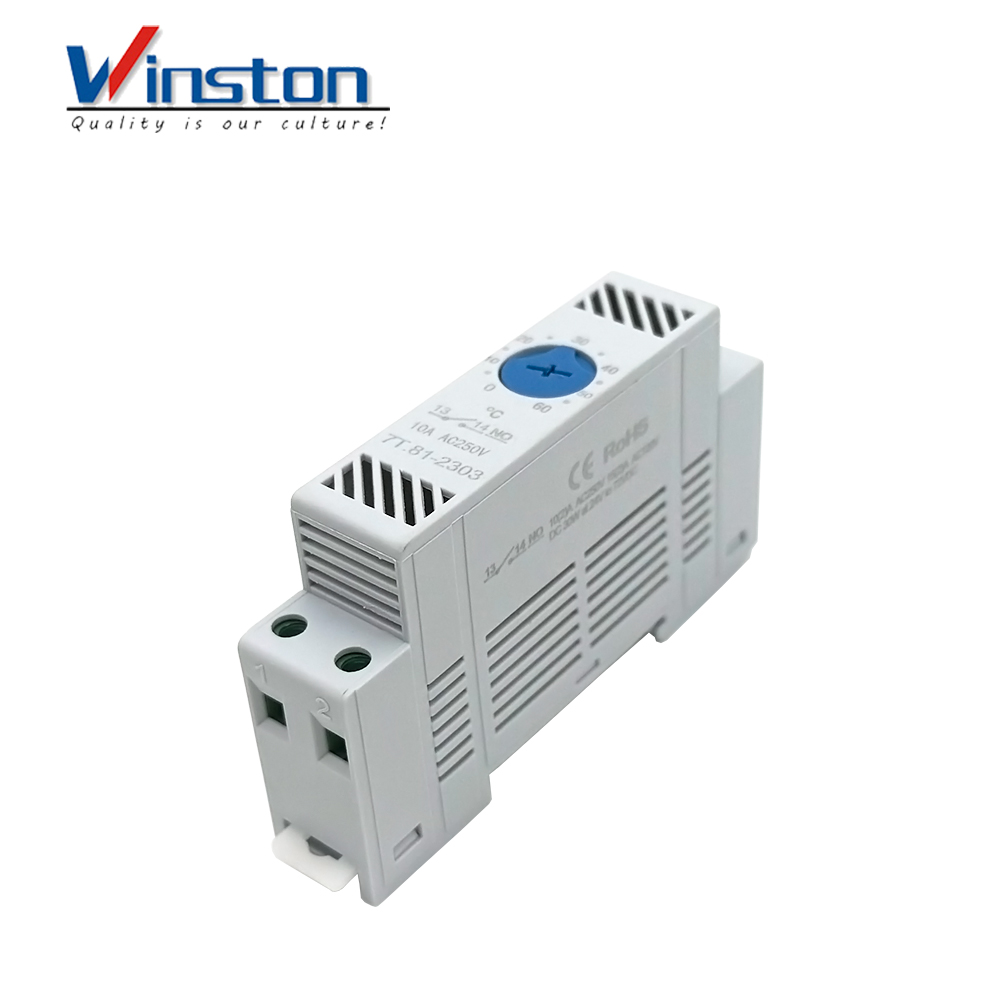

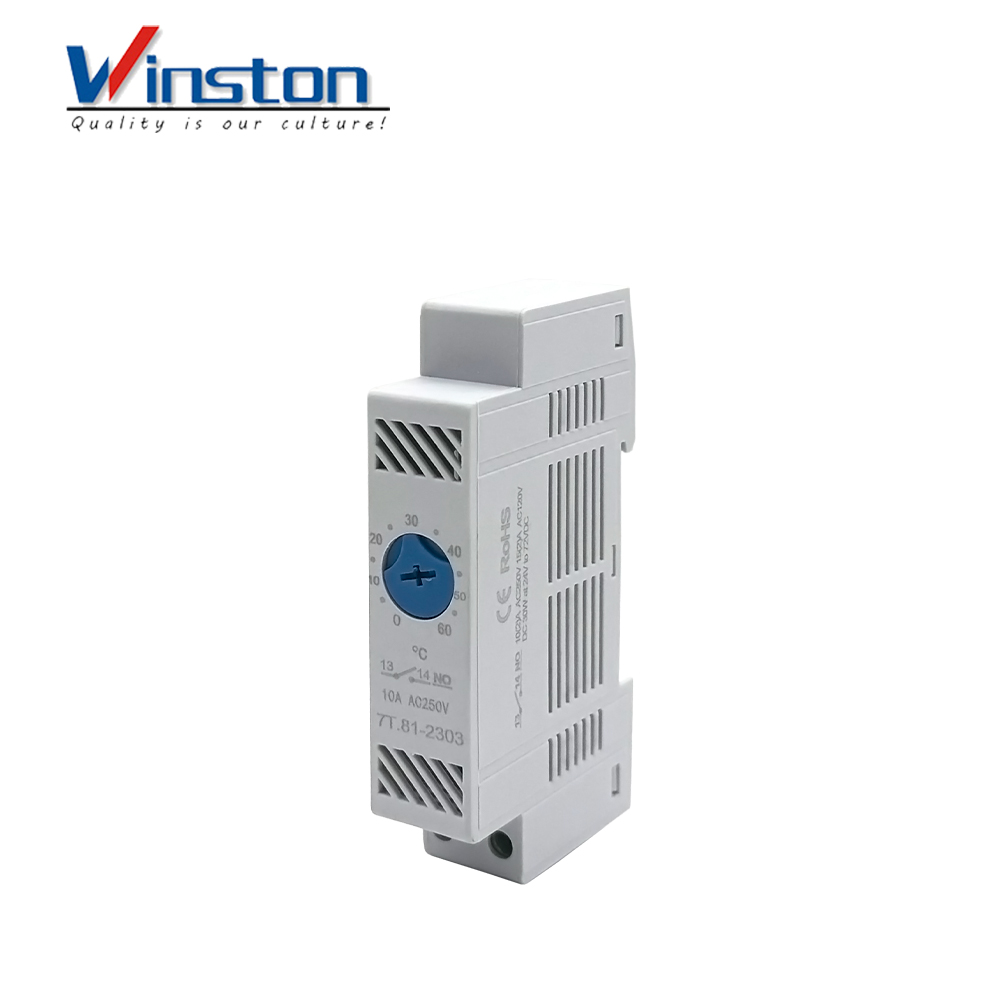

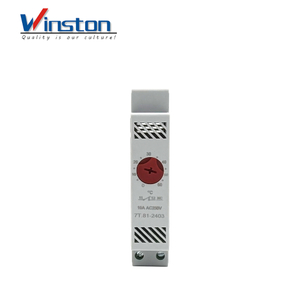

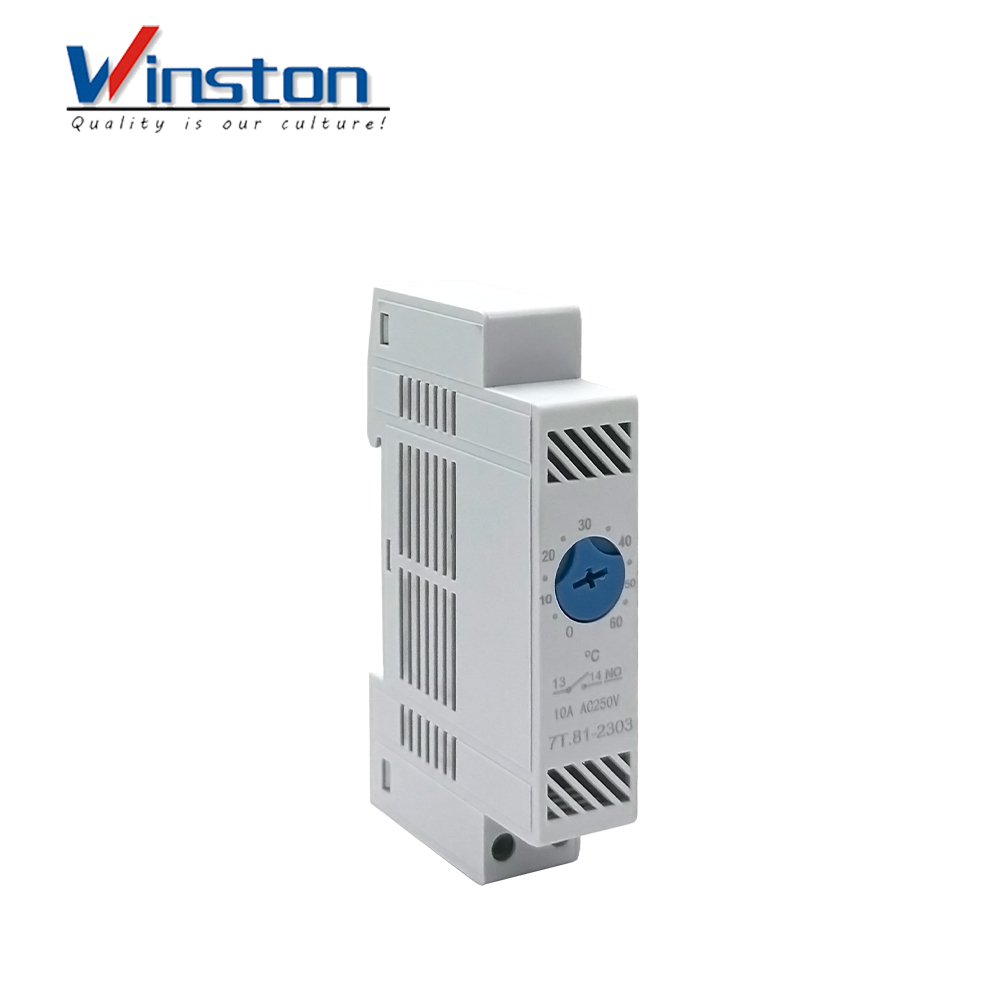

The 7T.81 industrial temperature controller is mainly designed to regulate the internal temperature of thecabinet, allowing the environment inside the cabinet to fluctuate within a comfortable range, ensuring the normaloperation of equipment components, and avoiding damage caused by equipment overheating. Effectively saveenergy and extend equipment life. The flat design effectively saves space, and the wide temperature design canmeet the needs of various industrial equipment cabinets.
7T.81-240: Thermostat (normally closed NC) is used to regulate the heater or heating device, avoiding continuousoperation, saving electricity, and extending the lifespan of the heater (automatically turning off the heater orheating device when the temperature is above the set value).
7T.81-230: Thermostat (normally closed NO) is used to regulate the heater or heating device, avoidingcontinuous operation, saving electricity, and extending the lifespan of the heater (automatically turning off theheater or heating device when the temperature is above the set value).
The 7T.81 industrial temperature controller is mainly designed to regulate the internal temperature of thecabinet, allowing the environment inside the cabinet to fluctuate within a comfortable range, ensuring the normaloperation of equipment components, and avoiding damage caused by equipment overheating. Effectively saveenergy and extend equipment life. The flat design effectively saves space, and the wide temperature design canmeet the needs of various industrial equipment cabinets.
7T.81-240: Thermostat (normally closed NC) is used to regulate the heater or heating device, avoiding continuousoperation, saving electricity, and extending the lifespan of the heater (automatically turning off the heater orheating device when the temperature is above the set value).
7T.81-230: Thermostat (normally closed NO) is used to regulate the heater or heating device, avoidingcontinuous operation, saving electricity, and extending the lifespan of the heater (automatically turning off theheater or heating device when the temperature is above the set value).
Function | Parameter |
Load capacity | 250VAC 10(2)A;120V AC 15(2)AC; DC(30/110/220)V;(1/0.3/0.15)A |
Working/Storage Temperature | (-45...+80)'C ,without condensation orfreezing |
Operating humidity range | 90% r.F/RH,no condensation, no icing |
Overall dimensions | See product dimension diagram |
Switching temperature difference K | 7K(±4K) |
Shell material | Flame retardant and high-temperature resistant engineeringplastic, light gray |
Installation method | Standard DIN 35mm rail mounting |
Shell protection level | IP20 |
weight | About 40 grams |
service life | Greater than 100000 times |
Function | Parameter |
Load capacity | 250VAC 10(2)A;120V AC 15(2)AC; DC(30/110/220)V;(1/0.3/0.15)A |
Working/Storage Temperature | (-45...+80)'C ,without condensation orfreezing |
Operating humidity range | 90% r.F/RH,no condensation, no icing |
Overall dimensions | See product dimension diagram |
Switching temperature difference K | 7K(±4K) |
Shell material | Flame retardant and high-temperature resistant engineeringplastic, light gray |
Installation method | Standard DIN 35mm rail mounting |
Shell protection level | IP20 |
weight | About 40 grams |
service life | Greater than 100000 times |
