Small Compact Thermostat TRTO-011

Quantity:



Inquire Add to Basket

Model:
TRTO-011
Standard:
CE
Trademark:
Winston/OEM
Origin:
Made in China
Packing:
Export standard carton box
Unit:
PCS
Min order:
1
TransTime:
3-7days
Transportation:
1
Payment:
T/T

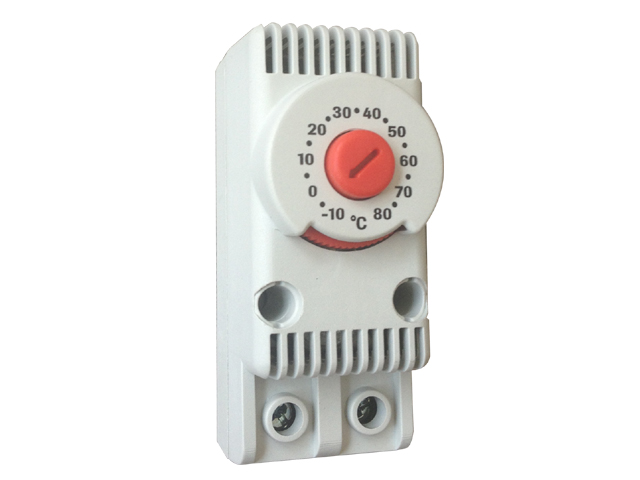

Small Compact Thermostat TRTO-011

Large setting range
Small size
Simple to mount
High switching performance

TRTO 011: Thermostat (normally closed);contact breaker for regulating heaters. The contact opens when temperature is rising.

Technical Data

Switch temperature difference	7K (±4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	> 100,000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W at 24VDC to 72VDC
Max. inrush current	AC 16A for 10 sec.
Connection¹	2-pole terminal, clamping torque 0.5Nm max.:
	rigid wire 2.5mm²,
	stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN 60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating/Storage humidity	max. 95% RH (non-condensing)
Protection type	IP20

¹ When connecting with wires, wire end ferrules must be used.

Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.

Setting range	Art. No. Contact breaker (NC)	Art. No. Contact maker (NO)	Approvals
0 to +60°C	01140.0-00	01141.0-00
-10 to +50°C	01142.0-00	01143.0-00
+20 to +80°C	01159.0-00	01158.0-00
+32 to +140°F	01140.9-00	01141.9-00
+14 to +122°F	01142.9-00	01143.9-00
0 to +60°C	01146.9-00	01147.9-00
