FZK 011
Winston
Features
Wide adjustment range
High switching capacity
SPDT (change-over) contact
Very low hysteresis option
DIN rail mountable

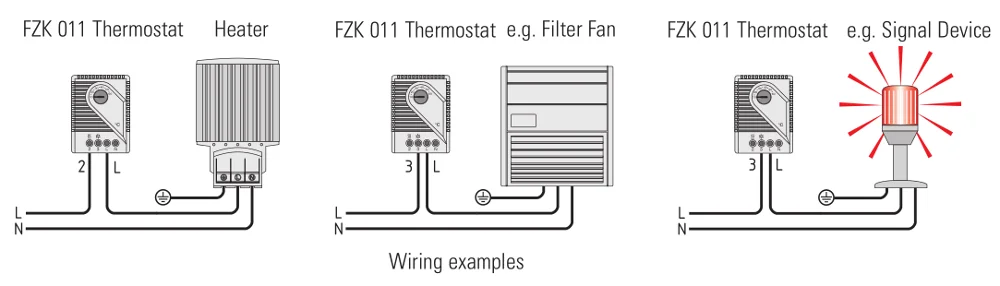

The FZK 011 mechanical thermostat is used for controlling heating and cooling equipment, fil-
ter fans or signal devices where a higher degree of sensing accuracy is required. An integrated
resistor (RF) can be connected to improve the switch temperature difference (see Option note).
The thermostat registers the surrounding air and can switch both inductive and resistive loads
via snap-action contact.
Technical data
| Model | FZK 011 |
| Switching difference | approx. 9 °F (5 K), tolerance -5.4/+3.6 °F (-3/+2 K) |
| Option note: | connecting terminal “N” (RF heating resistor) enables thermal |
| feedback, reducing the hysteresis - amount is subject to | |
| surrounding conditions TBD for each individual application | |
| Sensor element | thermostatic bimetal |
| Contact type | SPDT / change-over contact |
| Service life | > 100,000 cycles |
| Max. switching capacity, NC | 10 A resistive / 4 A inductive @ AC 120 V |
| 10 A resistive / 4 A inductive @ AC 250 V | |
| DC 30 W | |
| Max. switching capacity, NO | 5 A resistive / 2 A inductive @ AC 120 V |
| 5 A resistive / 2 A inductive @ AC 250 V | |
| DC 30 W | |
| Connection | 4-pole terminal, clamping torque 0.5 Nm max.: |
| solid wire - AWG 14 max. (2.5 mm2) | |
| stranded wire (w/ wire end ferrule) - AWG 16 max. (1.5 mm2) | |
| Housing | plastic, UL 94V-0, light grey |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Mounting position | vertical |
| Operating / storage temperature | -49 to +149 °F (-45 to +65 °C) |

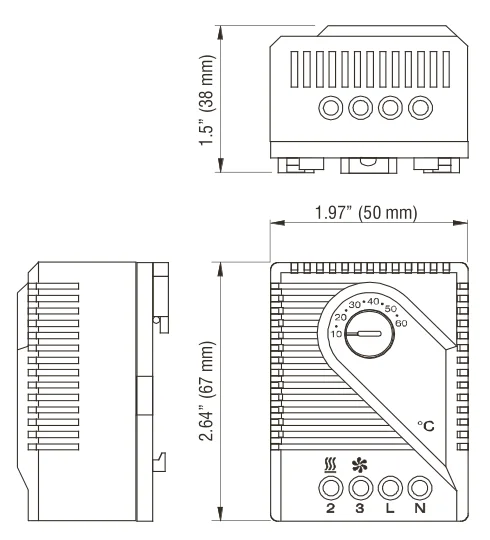

| Dimensions | 2.64 x 1.97 x 1.5” (67 x 50 x 38 mm) |
| Weight | approx. 3.5 oz. (100g) |
| Protection type | IP20 |
| Part No. | Operating voltage | Setting range |
| 01170.0-00 | AC 230 V | 5 to 60 °C |
| 01170.0-01 | AC 230 V | 40 to 140 °F |
| 01170.9-00 | AC 120 V | 40 to 140 °F |
| 01170.9-01 | AC 120 V | 5 to 60 °C |
