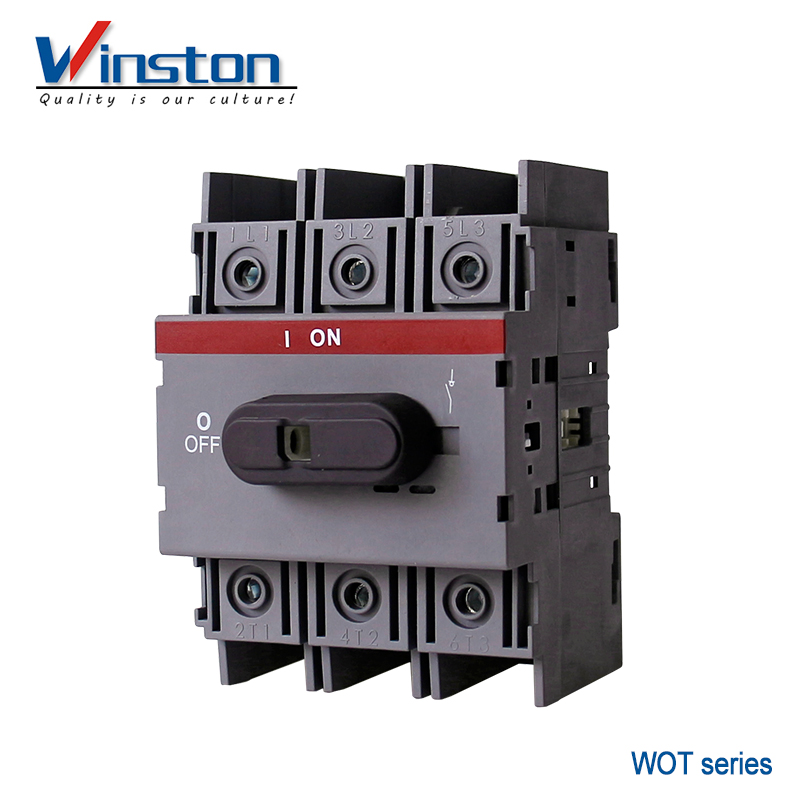

WOT series
Winston
* Load isolating switches are widely applied to distribution system and automation system in building, power, petrochemical and other industries.
* The acceleration mechanism with instantaneous release of spring storage achieves fast connection or separation, which has nothing to do with the speed of operation handle, and greatly improves the ability of extinguishing arc.
* The shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonization resistance and impact resistance.
* The parallel double breakpoint contact has self cleaning effect.
* All contact materials are copper plated silver alloy with two separate contact surfaces.
* The distance is large.
* In the "O" position, you can use three locks to lock the handle at the same time, and reliably avoid misoperation.
* The switch is beautiful, novel and concise, with small volume and complete function.
* Load isolating switches are widely applied to distribution system and automation system in building, power, petrochemical and other industries.
* The acceleration mechanism with instantaneous release of spring storage achieves fast connection or separation, which has nothing to do with the speed of operation handle, and greatly improves the ability of extinguishing arc.
* The shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonization resistance and impact resistance.
* The parallel double breakpoint contact has self cleaning effect.
* All contact materials are copper plated silver alloy with two separate contact surfaces.
* The distance is large.
* In the "O" position, you can use three locks to lock the handle at the same time, and reliably avoid misoperation.
* The switch is beautiful, novel and concise, with small volume and complete function.
Model | WOT40F | WOT63F | WOT80F | WOT100F | WOT125F | ||
Rated insulation voltage and raged operational voltage AC20/DC20 Dielectric strength Rated impulse withstand voltage | Pollution degree 3 50Hz 1min. | V KV KV | 750 6 8 | 750 6 8 | 750 6 8 | 750 6 8 | 750 6 8 |
Rated thermal current and rated operational current AC20/DC20 ...with minimum conductor cross section | Ambient 40°C Ambient 40°C Ambient 60°C Cu | A A A mm² | 40 40 32 10 | 63 63 50 16 | 80 80 63 25 | 115 115 80 35 | 125 125 100 50 |
Rated operational current, AC-21A | up to 415V 440...690V | A A | 40 40 | 63 63 | 80 80 | 100 100 | 125 125 |
Rated operational current, AC-22A | up to 415V 440...690V | A A | 40 40 | 63 63 | 80 80 | 100 100 | 125 125 |
Rated operational current, AC-23A | up to 415V 440V 500V 690V | A A A A | 23 23 23 12 | 63 63 45 20 | 75 65 58 20 | 80 65 60 40 | 90 78 70 50 |
Rated operational current/ poles in series, DC-21A | 24...48V 110V 220V 440V 500V 750V | A A A A A A | 32/1 32/2 32/3 16/4 16/4 32/8 | 63/1 63/2 63/4 16/4 16/4 | 80/1 80/2 80/4 16/4 16/4 | 100/1 100/2 100/4 | 125/1 125/2 125/4 |
Rated operational current/ poles in series, DC-22A | 24...48V 110V 220V 440V 750V | A A A A A | 32/1 32/2 32/4 10/4 25/8 | 63/1 63/2 45/4 10/4 | 80/1 80/2 45/4 10/4 | 100/1 100/2 63/4 | 125/1 125/2 80/4 |
Rated operational current/ poles in series, DC-23A | 24...48V 110V 220V 440V 750V | A A A A A | 32/1 32/2 32/4 10/4 16/8 | 63/1 63/2 45/4 10/4 | 80/1 80/2 45/4 10/4 | 100/1 100/2 63/4 | 125/1 125/2 63/4 |
Rated operational power, AC-23A (These values are given for guidance and may vary acc. to the motor manufacturer) | 220...240V 400...415V 440...500V 690V | KW KW KW KW | 5.5 11 11 11 | 11 22 22 15 | 22 37 37 18.5 | 22 37 37 37 | 22 45 45 45 |
Rated breaking capacity, AC-23A | up to 415V 440V 500V 690V | A A A A | 184 184 184 96 | 360 360 360 160 | 640 448 464 160 | 640 520 480 320 | 720 624 560 400 |
Rated breaking capacity/ poles in series, DC-23A | 24-48V 110V 220V | A A A | 128/1 128/2 128/4 | 180/1 180/2 180/4 | 252/1 252/2 180/4 | 400/1 400/2 252/4 | 500/1 500/2 252/4 |
440V 750V | A A | 40/4 64/8 | 40/4 | 40/4 | |||
Rated conditional short-circuit current Ip (R.M.S) and corresponding max.allowed cut-off current îc. The cut-off current îc refers to values listed by fuse manufacturers (single phase test acc.to IEC60269) | 50KA ≤415V | KA A | 16.5 125/125 | 16.5 125/125 | |||
100KA ≤500V | KA A | ||||||
10KA ≤690V
| KA A | 8.2 125/100 | 8.2 125/100 | ||||
50KA ≤690V
| KA A | 10 63/63 | 10 63/63 | ||||
Rated short-time withstand current | 690V,0.25s 690V, 1s | KA KA | 2.5 | 2.5 | |||
Rated short circuit making capacity | 690V/500V | KA | 3.6 | 3.6 | |||
Rated capacitor power (the capacitor ratings are limited by the fuse link.) | 400-415V | kVAr | 40 | 50 | |||
Power loss/pole | At rated operational current | W | 4.0 | 6.3 | |||
Mechanical endurance | Oper | 20000 | 20000 | ||||
Weight without accessories | kg kg | 0.36 0.50
| 0.36 0.50 | ||||
Cable size
| Cu-wire size suitable for terminal clamps | mm² AWG | 10-70 8-00
| 10-70 8-00 | |||
Terminal tightening torque Operating torque | Counter torque required 3-pole switch-disconnector | Nm Nm | 6 2 | 6 2 |
