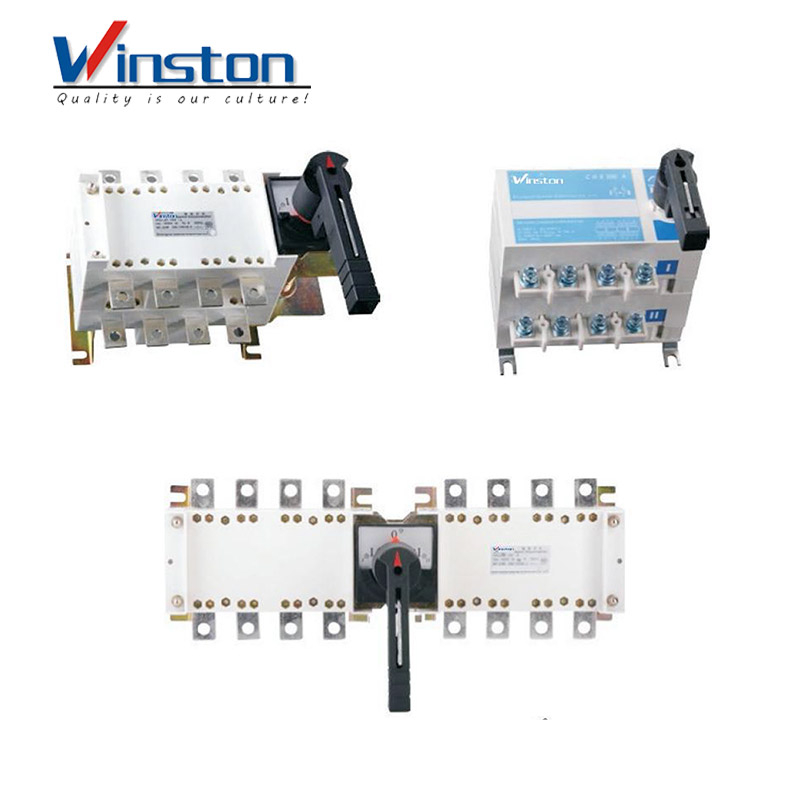

HGLZ-63A-3150A.The load isotaiom switch is suitable for the changeover of two sets of low voltage electric circuit or the changeover of 2 sets of load devices or safety isolation.

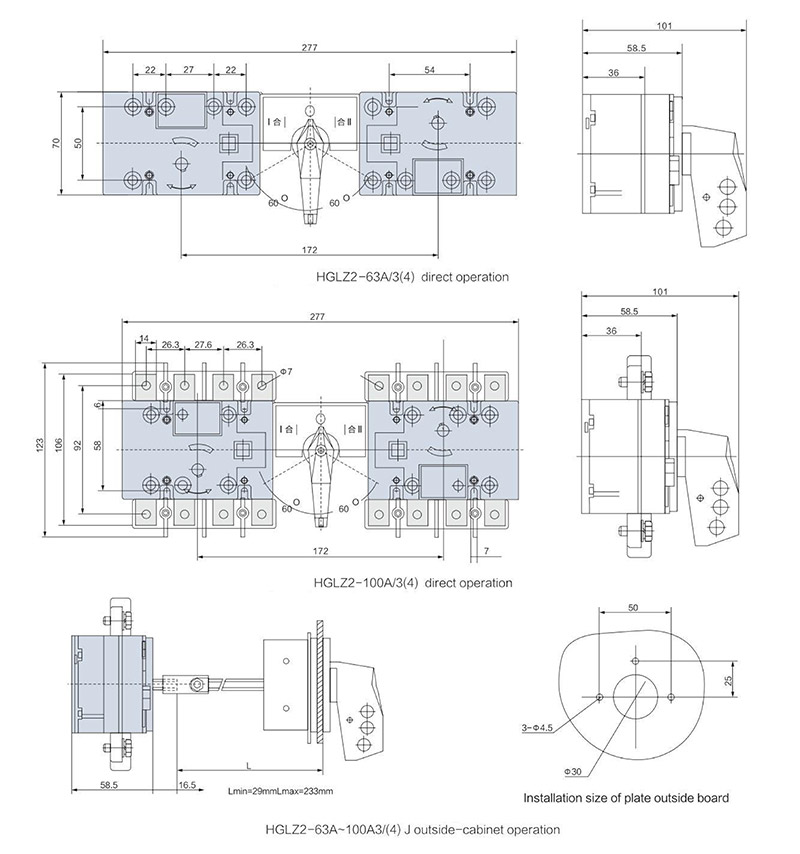

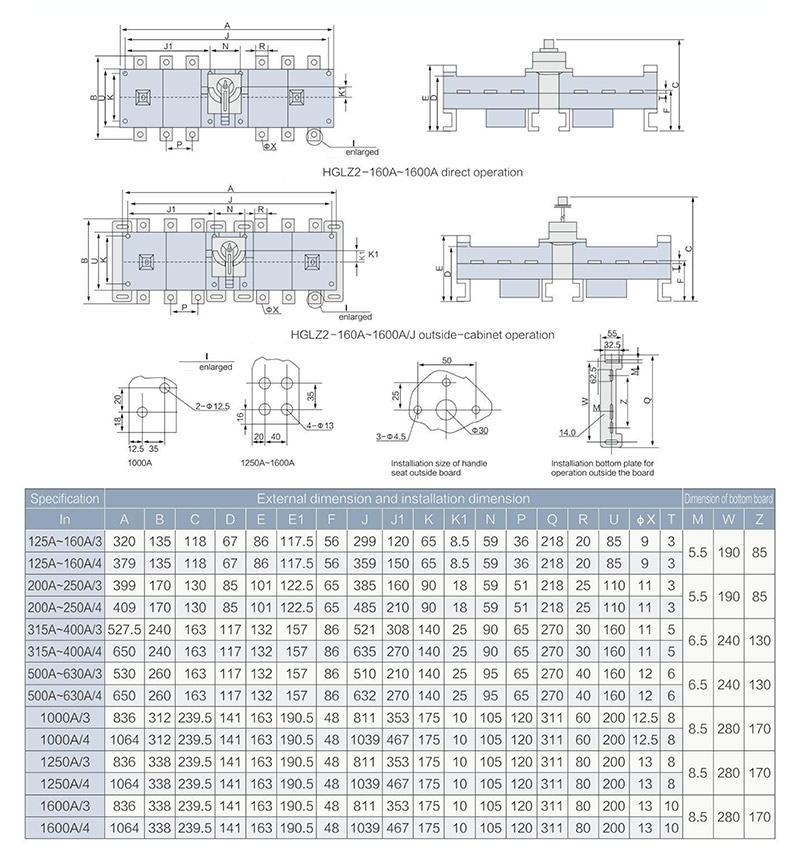

Mode of operation:Direct operation: handle is installed on the switch.Operation outside the board: handle is installed outside thedoor of power distributing board.
Products with observation windows can be proveided according to the demand to observe directiy the on and off state of contact.
Possesses three poles, and four poles (3 poles+on and off neutral pole).

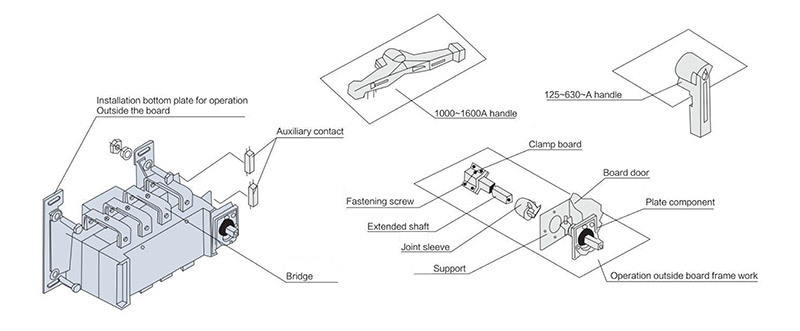

Extended shaft is used for the operation outside the board
Two sets of auxiliary contacts can be assembled according to demand.
Mechanical performance and electrical performance corre-spond to the mechanical property of HGLZ-63A-3150A.
A bridge can provided to connect the inlet or outle terminal of the switch.
The electric cable insulating cover can be assembled.
Note:The bidge connection is chosen,an explanation is needed to indicate the inlet or outlet is connected with it.
