HR17 32A - 630A Fuse Type Isolation Switch

Share to:

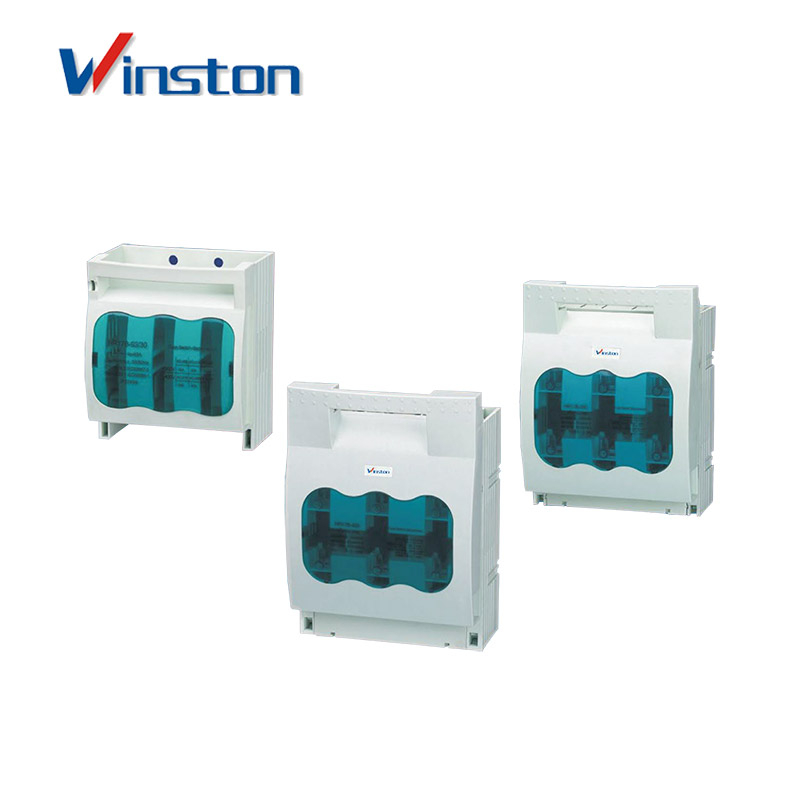

HR17 32A - 630A Fuse Type Isolation Switch

Availability:

Quantity:



Inquire Add to Basket

Model:
HR17
Brand:
Winston

Product Description

Products Description

HR17 series fuse type isolating switch,rated insulating voltage AC800V,rated operaing voltage 690V.400V,rated frequency 50Hz,the rated current 160A-630A mainly used as power switch,isolating switch and emergency switch with function of protection in the circuit with high short circuit current and motor circuit,this swictch is not used to operate the single motor.

When isolator with isolation knife replace fuse,this switch does not have the electric circuit to overload with short-circults the protection function,only satisfies the rating which this switch stipulated to put through with the minute breaks the ability,makes the line to isolate uses.

This product is in coformlty with standard GB14048.3-2002,IEC60949-3(1999).

Model Explanation

Features

The srture is there pole insulating,the enclousure is made of high strength fire-resistance materials with high insulating
protection. The handleon the base is safe for use and convenient for operating. The transparent panel can be used examine the working condition,the cover is easy totake off and the fuse is

The switch with advance designed contact system,wheb the switch break loaded,current will move to arcing corner,the arcing chamber canassure the reliable making and breaking and protective the contact without ablation,the bthe switch

The type of installation is fixed and hanging types,when install as hanging type,power installed to inlet terminal thrugh the button of switch,When installed as fixed type,the inlet and outlet terminal can be connected with bus bar,and also can be

Parts of the switch adopt the plug type and convenient for maintain and repair,when a frame type or mccb installed,When

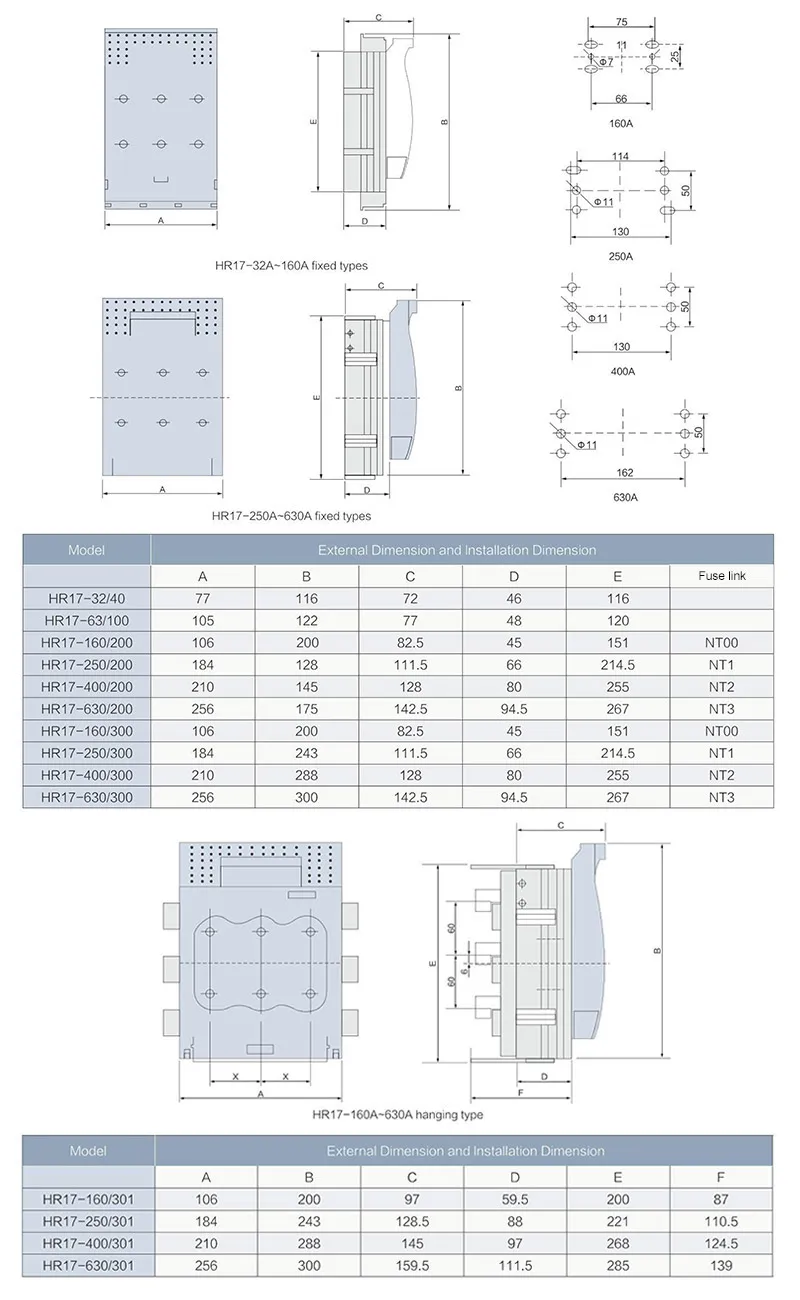

Technical parameter

Rated impulse withstand voltage	AC 800V
Rated operating current	AC 400V AC 690V
Rated heating current	160A, 250A, 400A, 630A
Rated operating current	400V	160A, 250A, 400A, 630A	690V	100A,200A, 315A, 425A
Kind of usege	400V	AC-20B,AC-21B,AC-22B,AC-23B	690V	AC-20B,AC-21B,AC-22B
Fuse link installed	The fuse is conformity with GB13539.1,relation of switch and fusing unit(see table2)
Withstanding voltage	Interphase 12KV,break of each phase 15KV
Rated limiting short current	When the switch installed with standard fuse,the rated withstanding short makingcapacith is 50КA under the condition of AC690V,COS 0.2.
Operating performance	Number of operating and testing circuit of operating performance see table3 and 4.

Rated Current(A)	Number of operatin			Operating Number per hour
	Without loaded	With oladed	Total
160,250	1400	200	1600	120
400,630	800	200	1000	60

Rated voltage(V)	Rated Working current(A)	Application Category	Making			Breaking
			I/Ie	U/Ue	COSO	I/Ie	U/Ue	COSO
400	Whole amount	AC-21B	1	1	0.95	1	1	0.95
		AC-22B			0.8			0.8
		AC-23B			0.65			0.65
690	Whole amount	AC-21B	1	1	0.95	1	1	0.95
		AC-22B			0.8			0.8
