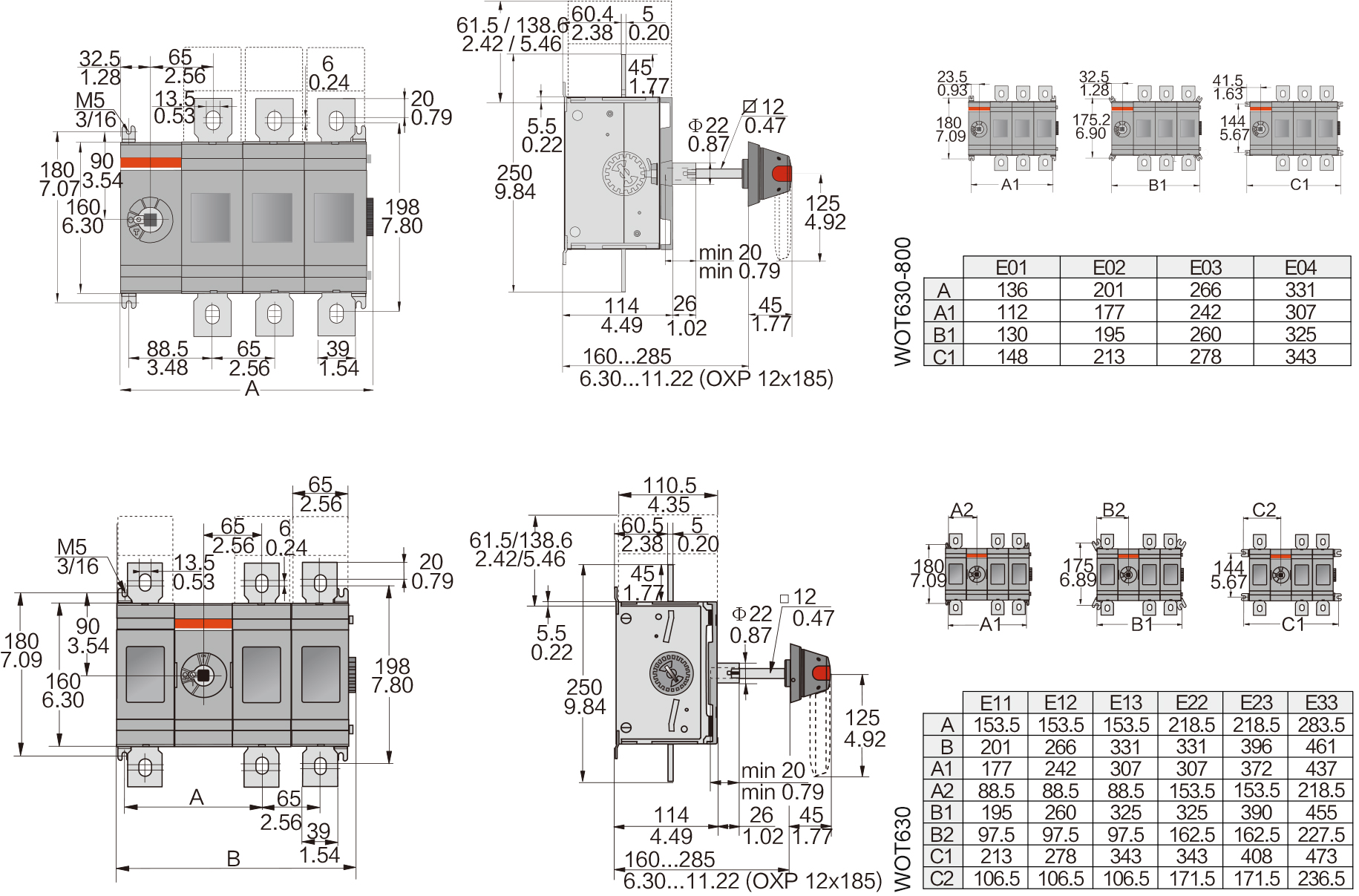

WOT series
Winston
| Model | WOT630F | WOT800F | ||
Rated insulation voltage and raged operational voltage AC20/DC20. Dielectric strength. Rated impulse withstand voltage. | Pollution degree 3 50Hz 1min. | V KV KV | 1000 10 12 | 1000 10 12 |
Rated thermal current and rated operational current AC20/DC20 ...with minimum conductor cross section | Free air. Closed environmen. Cu.
| A A mm² | 630 630 2*185 | 800 800 2*240 |
| Rated operational current, AC-21A | ≤500V 690V 1000V | A A A | 630 630 630 | 800 800 800 |
| Rated operational current, AC-22A | ≤500V 690V 1000V | A A A | 630 630 630 | 800 800 800 |
| Rated operational current, AC-23A | ≤500V 690V 1000V | A A A | 630 630 400 | 800 800 400 |
Rated operational current/ poles in series, DC-21A...23A | 24...110V 220V 440V 660V | A A A A
| 630/1 630/1 630/2 630/4 | 800/1 800/1 800/2 650/4 |
Rated operational current/ poles in series, DC-21B |
800V 1000V | A A
| 600/5 600/6 | 600/5 600/6 |
Rated operational power, AC-23A |
230V 400V 415V 500V 690V | KW KW KW KW KW | 200 355 355 400 630 | 250 450 450 560 800 |
| Rated breaking capacity, AC-23A | ≤500V 690V | A A | 5040 5040 | 6400 6400 |
Rated conditional short-circuit current Ip (R.M.S) and corresponding max.allowed cut-off current îc. The cut-off current îc refers to values listed by fuse manufacturers (single phase test acc.to IEC60269) | 100KA, 500V gG/aM | KA A | 90 800/1000 | 90 800/1000 |
80KA, 690V gG/aM | KA A | 83.5 800/1000 | 83.5 800/1000 | |
| Rated short-time withstand current(R.M.S)lcw | ≤1000V, 0.15s ≤1000V, 0.25s ≤1000V, 1s | KA KA KA | 38 36 20 | 38 36 20 |
| Rated short circuit making capacity | ≤1000V | KA | 80 | 80 |
Rated capacitor power (the capacitor ratings are limited by the fuse link.) | 415V 500V 690V | kVAr kVAr kVAr | 250 300 450 | 310 375 550 |
| Power loss/pole | At rated operational current | W | 25 | 40 |
| Mechanical endurance | Oper | 10000 | 10000 | |
| Weight without accessories | 3P switch | kg | 5.2 | 5.2 |
Terminal screw specifications Terminal tightening torque Operating torque | Metric thread (diameter*length). Locking torque requirements. 3-pole isolation switch. | mm Nm Nm | M12/40 50-75 27 | M12/40 50-75 27 |
