A8-9
Winston
Products Description
1. Thermal resistance or thermocouple input and measuring range both can be set freely.

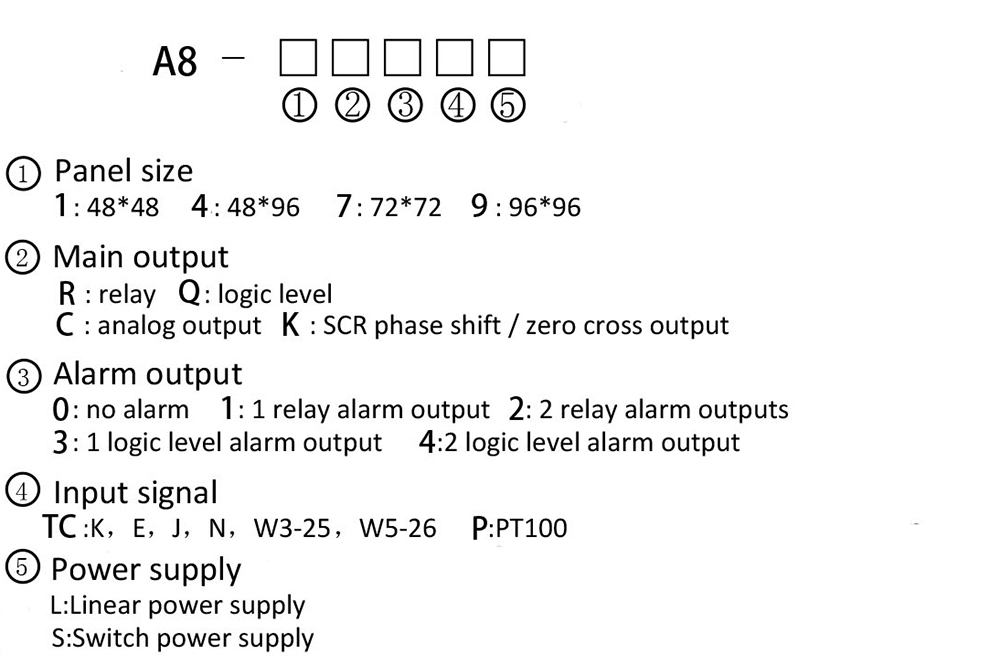

Model Explanation
Specifications
| Rated voltage | 180V-240V AC , 50HZ |
| Power comsumption | ≤5VA |
| Working environment | Ambient temperature: 0℃~50℃ Relative humidity: 35%~85% (no condensation) |
| Storage temperature | -25℃-65℃ (Avoid ice or dew) |
| Resolution | 1℃, 0.1℃ (adjustable) |
| Wiring method | Terminals |
| Accuracy | ±0.5%FS |
| Memory protection | Non-volatile memory |
| Installation environment | Installation type II, pollution grade 2 (IEC61010-1) |
| Relay output | Relay contacts AC220V/DC30V, 3A |
| Logic level output | ON:DC12V; OFF: below DC0.5V: Max current: 30mA, Load resistance≥1K. |

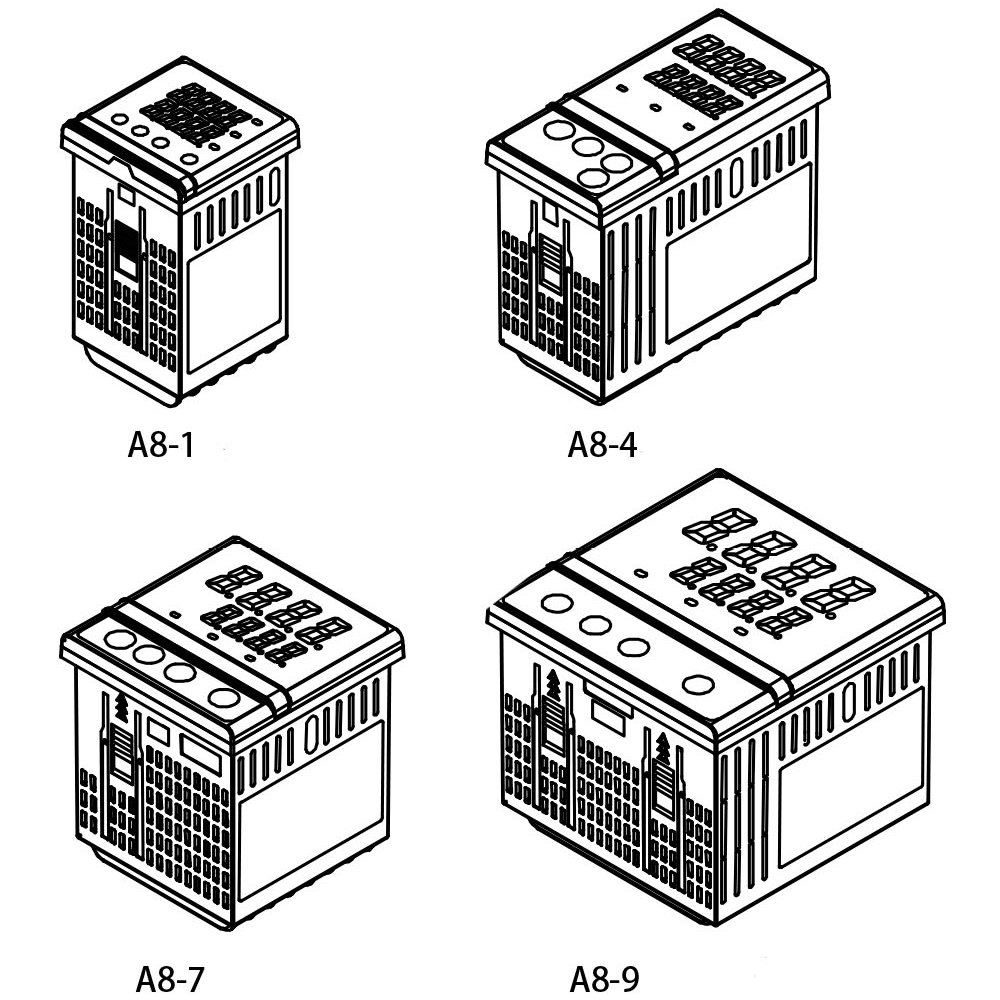

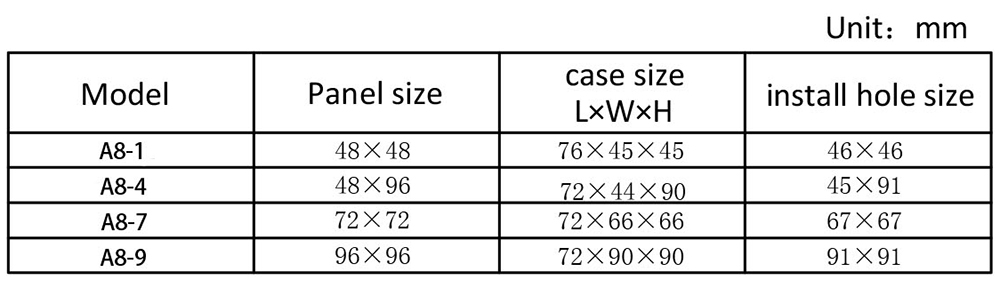

Dimension

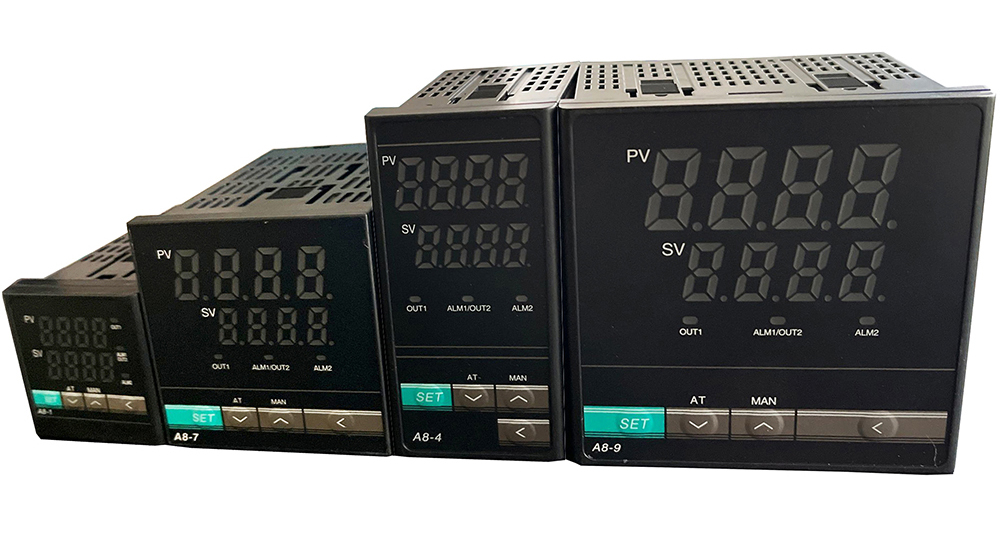

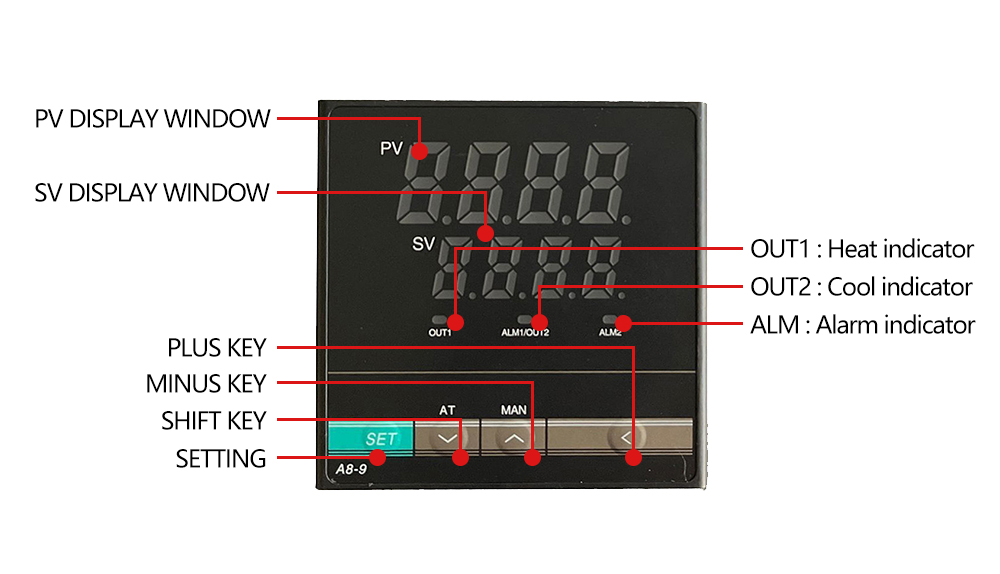

Control panel

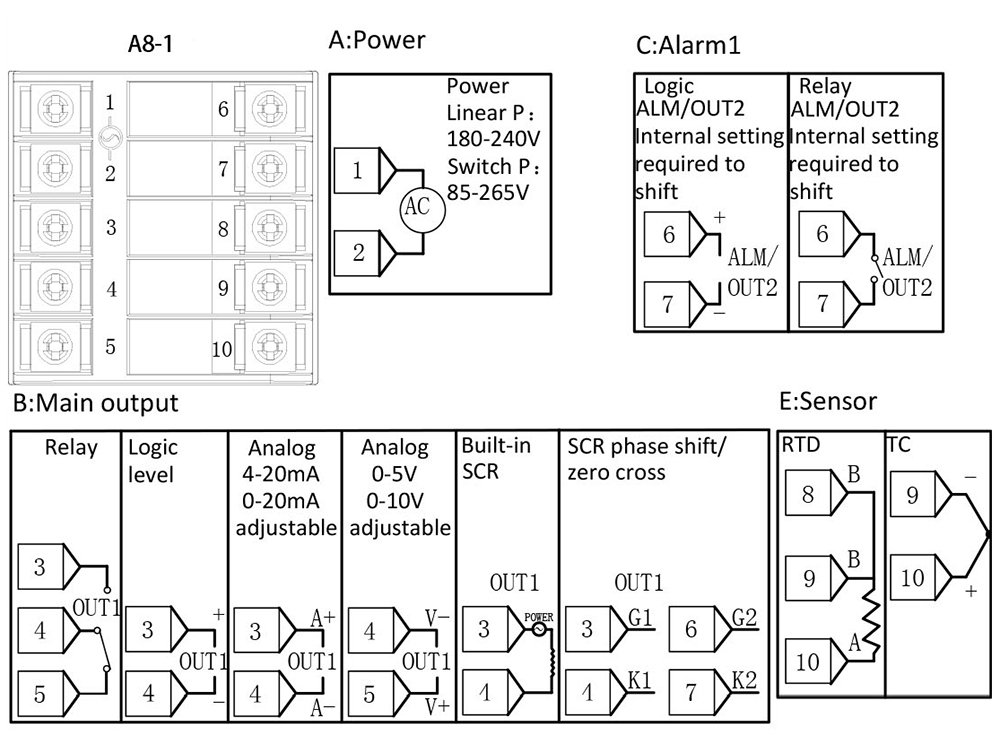

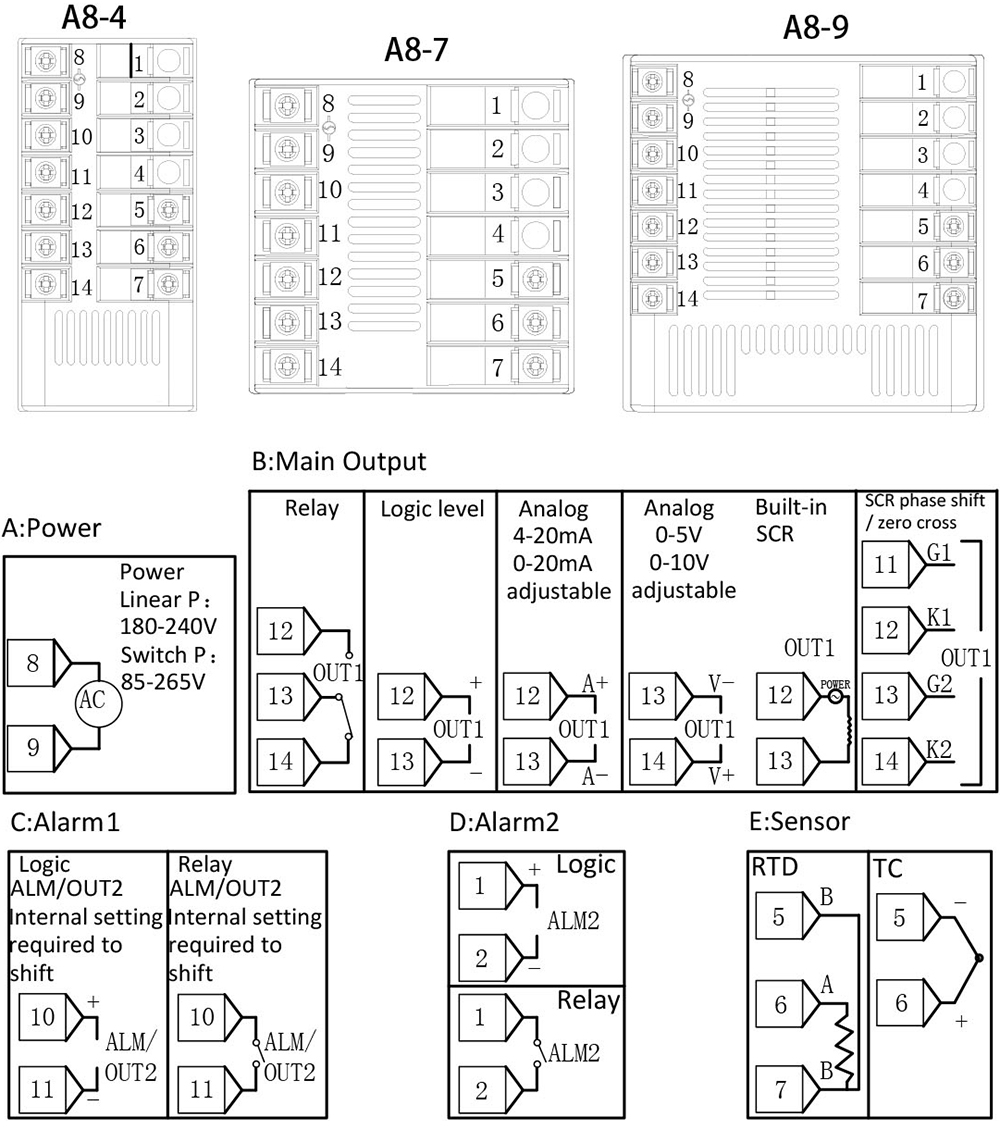

Wiring diagram
Packaging & Shipping
Products Description
1. Thermal resistance or thermocouple input and measuring range both can be set freely.
Model Explanation
Specifications
| Rated voltage | 180V-240V AC , 50HZ |
| Power comsumption | ≤5VA |
| Working environment | Ambient temperature: 0℃~50℃ Relative humidity: 35%~85% (no condensation) |
| Storage temperature | -25℃-65℃ (Avoid ice or dew) |
| Resolution | 1℃, 0.1℃ (adjustable) |
| Wiring method | Terminals |
| Accuracy | ±0.5%FS |
| Memory protection | Non-volatile memory |
| Installation environment | Installation type II, pollution grade 2 (IEC61010-1) |
| Relay output | Relay contacts AC220V/DC30V, 3A |
| Logic level output | ON:DC12V; OFF: below DC0.5V: Max current: 30mA, Load resistance≥1K. |
Dimension
Control panel
Wiring diagram
Packaging & Shipping
