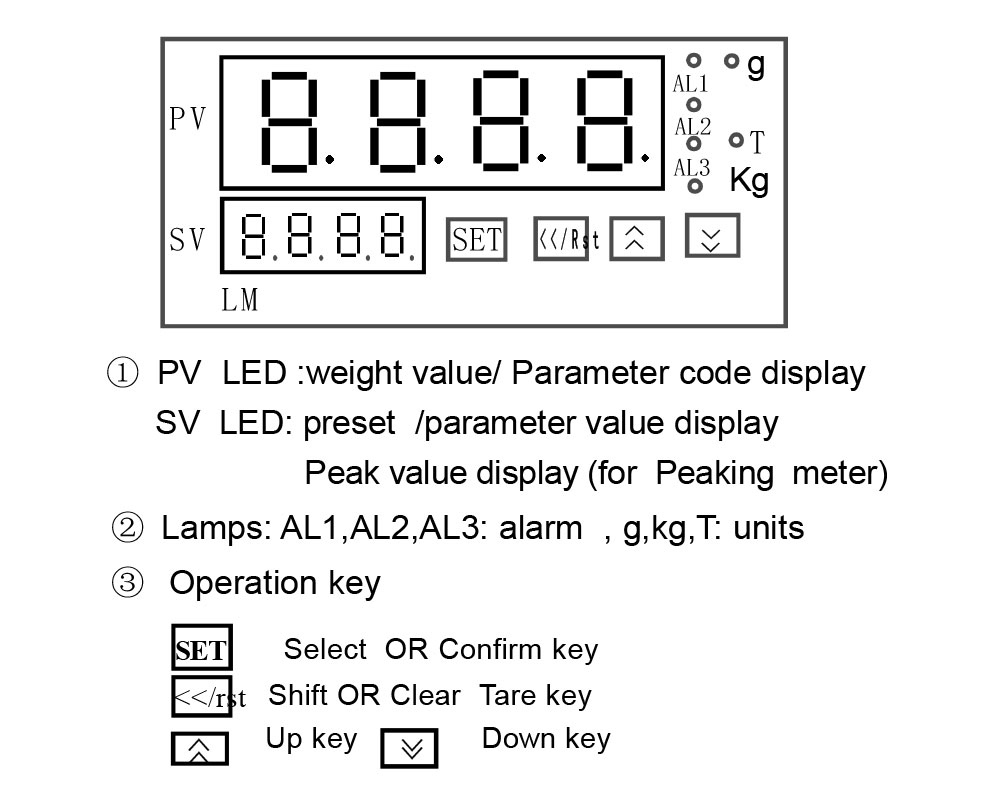

◼ Work with loadcell /other sensors,the instrument has function of clearing zero & PV modification, and various control modessuch as Pause.Stop,Slow/Fast motion.etc..Rapid response,high precision,steady performance and easy to operate.Except for weight control,auto accumat/mean for up/down batch control can be applied in the industries of land weight/cement/food pakage/ chemical ingredients.

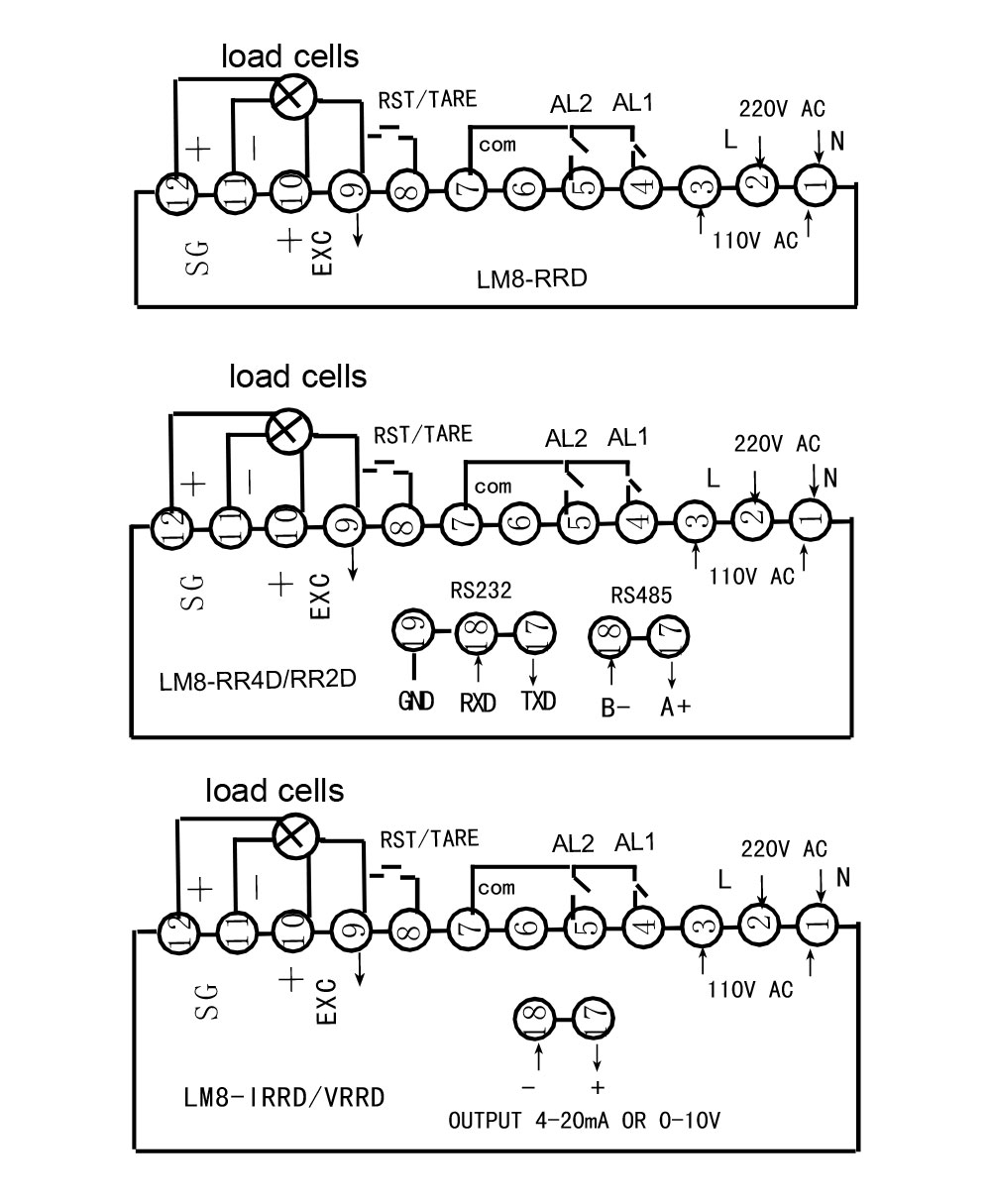

◼ Input:1-4 loadcells. Aux.power: DC 5V/80mA
◼Analog output:0-10V/4-20mA,etc.,output range adjustable by software.
◼ Communication:standard RS232/RS485 interface,MODBUS RTU protocol,realizeremote control by direct connection with PC/PLC/other equipment.
