FH Series Intelligent Digital Display Counter meter Length Counter

Share to:

FH Series Intelligent Digital Display Counter meter Length Counter

Widely used in Machinery/Electronic/Food/Package industry for counting,length,batch counting. Receive signals from various switches/encoder for height.position.angle.etc measurement. Countl no. /length value presetable. When for batch counting,Accumulate counte value/current batch count value & batch no. will displays at the same time. Several outputs settable.

Availability:

Quantity:



Inquire Add to Basket

Model:
FH Series Counter meter
Brand:
Winston

Features

◼ Widely used in Machinery/Electronic/Food/Package industry for counting,length,batch counting. Receive signals from various switches/encoder for height.position.angle.etc measurement. Countl no. /length value presetable. When for batch counting,Accumulate counte value/current batch count value & batch no. will displays at the same time. Several outputs settable.

◼ Accuracy:0.01%, dual line 4/6/8 digit display. Resolution 0.0001. Photo isolation for input & output,Strong interference

◼ Input: 4 modes (add counting, substract counting, add & substract counting, phase difference input for various waveform pulse/raster/proximity switch/ photoelectrical switch/contact switch/encoder(PNP/NPN) ,etc.)

◼ Output: 8 modes. Up to 3 alarm outputs with various control modes for selection

◼ Communication:standard RS232/RS485 interface,MODBUS RTU protocol, realize remote control by direct connection with PC/PLC/other equipment.

Application

1 Can be used as counter / lenght, counting meter / yard /angle / position, total count or batch count or current count

2 input: contact / proximity photoelectric switches / encoder, sine wave / Square wave / triangle wave etc voltage pulses

3 display : 4 / 6 / 8 digital LED duble row , range 0.0001-99999999

4 Multi-preset output: Relay \ SSR\Buzz\4-20mA output etc.

5 power-down data saving for at least 10 years (EEPROM). .

6 communication interface: RS485 RS232 LAN RJ45(MODBUS-RTU) .

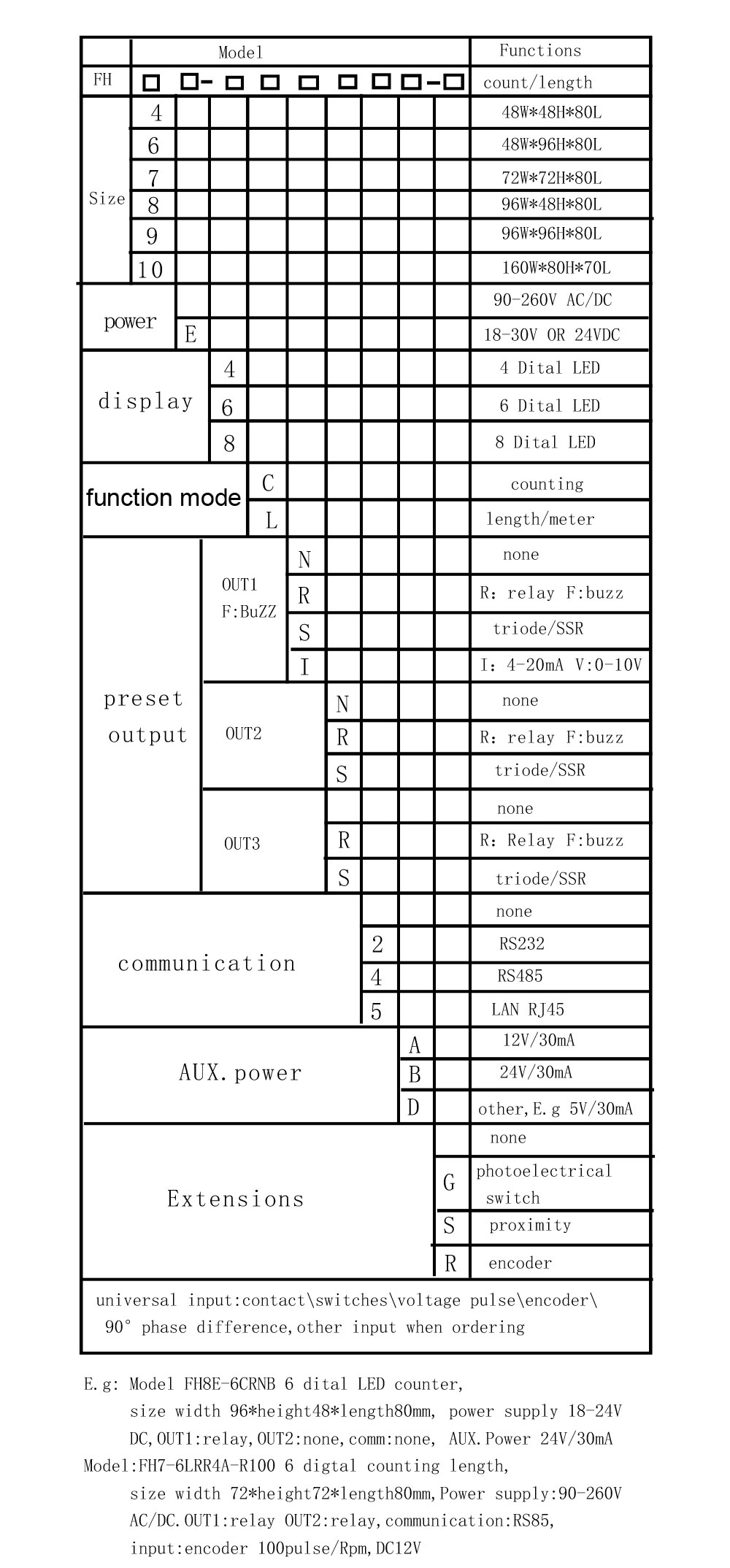

Model Explanation

FH型号

TA Series Intelligent Digital Display Pid Temperature Controller

LH Series Digital Display Economic Weight Controller Weight indicator

LM Series Digital Display Cell Indicator Weight Meter Weighing Controller

Winston wholesale A8-9 digital pid temperature controllers with timer

Winston A8 series Intelligent digital display temperature controller

Power	90-260V AC 50/60Hz or 18-30V AC/DC， cmsp ≤5VA
input	sine, square, triangle wave pulse etc.5V ≤ H ≤ 30V，0 ≤ L ≤ 2V，up edge trogger Input impedance ≥ 20K Ω
speed	switch/pulse ≤5000CPS，encoder ≤2000CPS
range	4 digit 0-9999 6 digit 0-999999 8 digit 0-99999999
output	Relay: normal open 250VAC 3A / 30VDC 3A resistive load SSR: DC 12V / 24V 30mA,Triode: 60V / 30mA
AUX.Power	DC 24V or /12V Max 40mA
comm	RS232、RS485 RJ45，MODBUS RTU protocol
Enviroment	temperature: 0-50℃ humidity: 30-85%RH
Weight	< 350g

Power	90-260V AC 50/60Hz or 18-30V AC/DC， cmsp ≤5VA
input	sine, square, triangle wave pulse etc.5V ≤ H ≤ 30V，0 ≤ L ≤ 2V，up edge trogger Input impedance ≥ 20K Ω
speed	switch/pulse ≤5000CPS，encoder ≤2000CPS
range	4 digit 0-9999 6 digit 0-999999 8 digit 0-99999999
output	Relay: normal open 250VAC 3A / 30VDC 3A resistive load SSR: DC 12V / 24V 30mA,Triode: 60V / 30mA
AUX.Power	DC 24V or /12V Max 40mA
comm	RS232、RS485 RJ45，MODBUS RTU protocol
Enviroment	temperature: 0-50℃ humidity: 30-85%RH
Weight	< 350g
