RC 016
Winston
1. Temperature limiting
2. Wide voltage range
3. Dynamic heating up

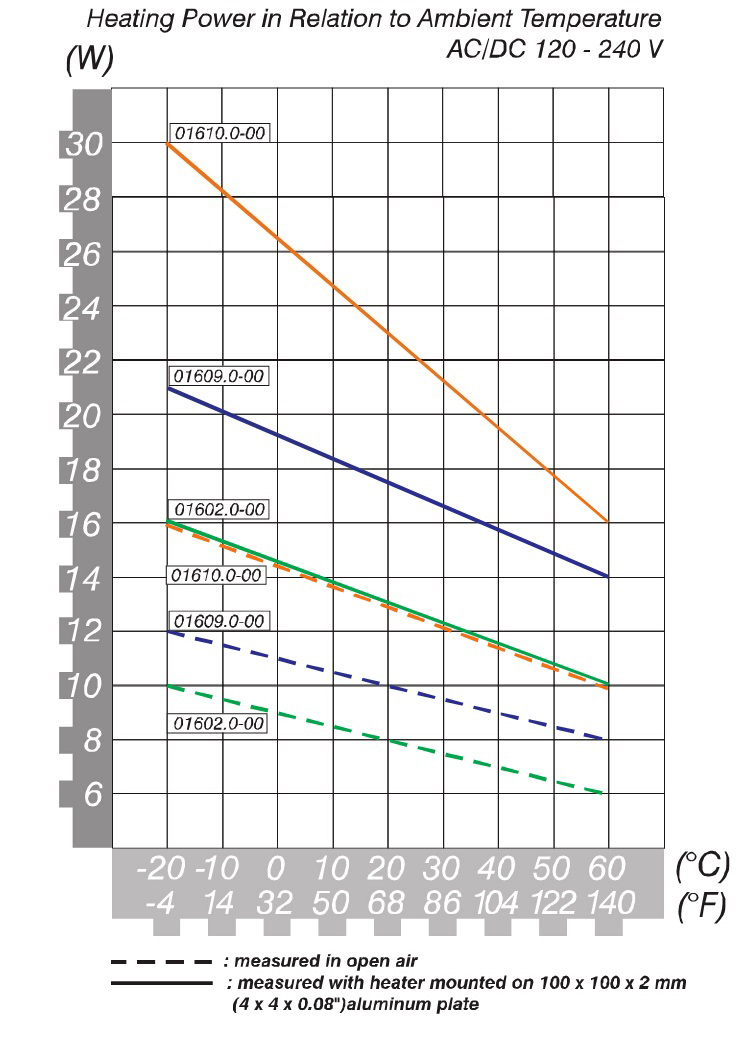

4. Heating power adjusts to ambient temperature
5. Energy saving
6. Compact size
The RC 016 small heaters are designed to prevent condensation and to ensure a minimun operating
temperature in small enclosures .

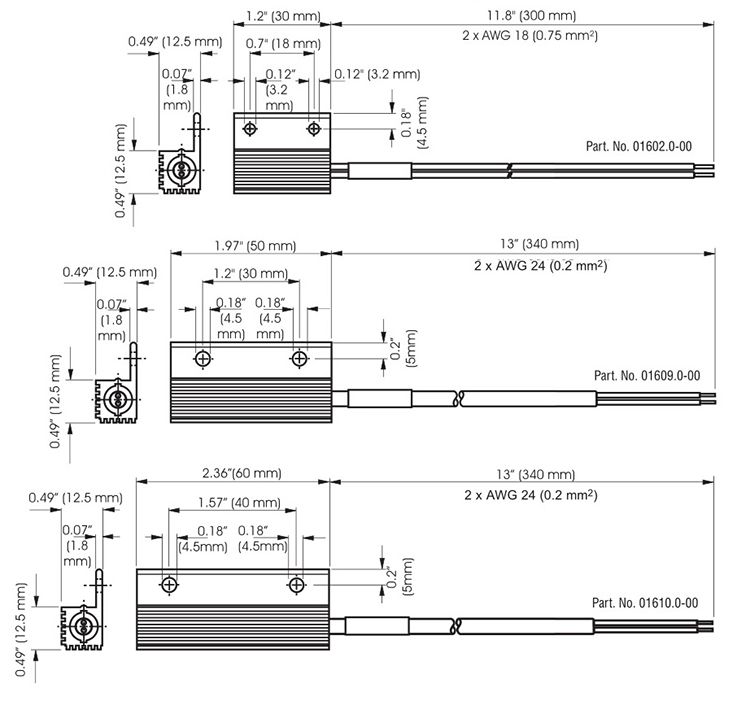

| Part No. | Heating caoacity 1) | Operating voltage2) | Max.current (inrush) | Surface temperature (approx.)1) | Weight(approx.) |
| 01602.0-00 | 8W | AC/DC 120-240V | 2.0A | 302℉ (150℃) | 0.7 oz. (20g) |
| 01602.0-03 | 8W | AC/DC 12-30V | 3.7A | 273℉ (134℃) | 0.7 oz. (20g) |
| 01609.0-00 | 10W | AC/DC 120-240V | 2.5A | 311℉ (155℃) | 1.0 oz. (28g) |
| 01609.0-01 | 10W | AC/DC 12-30V | 5.7A | 270℉ (132℃) | 1.0 oz. (28g) |
| 01610.0-00 | 13W | AC/DC 120-240V | 3.0A | 338℉ (170℃) | 1.2 oz. (34g) |
| 01610.0-01 | 13W | AC/DC 12-30V | 10.0A | 298℉ (148℃) | 1.2 oz. (34g) |
| 1) at 68℉ (20℃) ambient temperature. | |||||
| 2) operating with voltages below AC/DC 140V reduces heating performance by approx. 10%(min.110V, max 265V). | |||||
