HGK 047
Winston
1. Dynamic heating up
2. Energy saving
3. Wide voltage range
4. Temperature limiting
5. Clip fixing
6. Heating power adjusts to ambient temperature
7. Compact size
8. DIN rail mountable
The HGK 047 heaters are usd in enclosures to maintain operating designed to prevent condensation and to ensure a minimun operating
temperature in small enclosures .

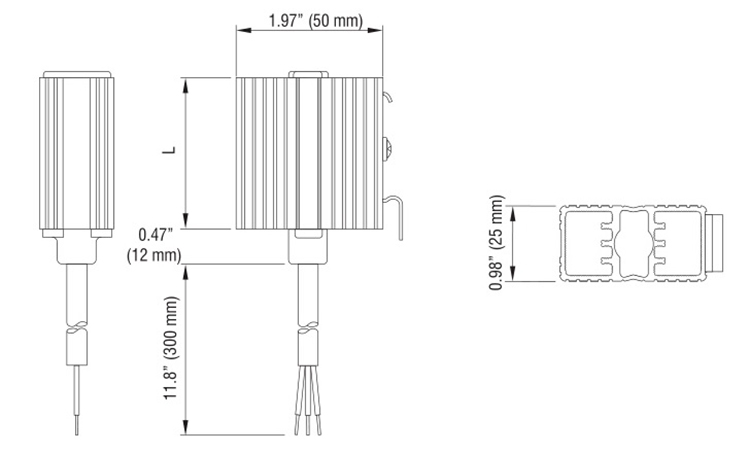

| Part No. | Heating caoacity 1) | Operating voltage 2) | Max.current (inrush) | Length(L) | Weight(approx.) |
| 04700.0-00 | 10W | AC/DC 140-240V | 1.0A | 2.05'' (52mm) | 3.0 oz. (85g) |
| 04701.0-00 | 20W | AC/DC 140-240V | 2.5A | 2.36'' (60mm) | 3.6 oz. (100g) |
| 04702.0-00 | 30W | AC/DC 140-240V | 3.0A | 2.76'' (70mm) | 4.0 oz. (110g) |
| 04700.9-00 | 10W | AC/DC 110-120V | 1.0A | 2.05'' (52mm) | 3.0 oz. (85g) |
| 04701.9-00 | 20W | AC/DC 110-120V | 1.5A | 2.76'' (70mm) | 4.0 oz. (110g) |
| 04702.9-00 | 30W | AC/DC 110-120V | 1.5A | 3.94'' (100mm) | 5.2 oz. (150g) |
| 1) at 68℉ (20℃) ambient temperature. | |||||
| 2) operating with voltages below AC/DC 140V reduces heating performance by approx. 10%(min.110V, max 265V). | |||||
