CR027
Winston
475W 550W Semiconductor PTC Industrial Electric Fan Heater (CR 027 / CR027)
Product Description
Interior air temperature in enclosures with electric/electronic components. The integrated thermostat is used to set the desired temperature.
| Heating element | PTC resistor - temperature limiting |
| Temperature safety cut-out | to protect against overheating in case of fan failure, |
| Axial fan, ball bearing | airflow see table |
| service life | 50,000h at 25°C (77°F) |
| Connection | 2-pole clamp 2.5mm², clamping torque 0.8Nm max |
| Casing | plastic according to UL94 V-0, light grey |
| Optical indicator | thermostat control lamp |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) - other fitting positions possible |
| Dimensions | 100 x 128 x 165mm |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Approvals | CE |
| Art. No. | Operating voltage | Heating capacity | Heating capacity | Inrush | Pre-fuseT | Airflow, | Setting range | Weight |
| (50Hz) | (60Hz) | currentmax | (time-delay) | freeflow | thermostat | (approx.) | ||
| 02700.0-00 | 220-240VAC, | 475W | 550W | 11A | 6.3A | 35m³/h | 0to+60°C | 0.9kg |
| 50/60Hz | ||||||||
| 02701.0-00 | 220-240VAC, | 550W | 650W | 13A | 8A | 45mm³/h | 0to+60°C | 1.1kg |
| 50/60Hz | ||||||||
| 02700.9-00 | 100-120VAC, | 400W | 550W | 14A | 8A | 35m³/h | +32to+140°F | 0.9kg |
| 50/60Hz | ||||||||
| 02701.9-00 | 100-120VAC, 50/60Hz | 510W | 650W | 15A | 8A | 45mm³/h | +32to+140°F | 1.1kg |
| at 20°C (68°F) ambient temperature | ||||||||

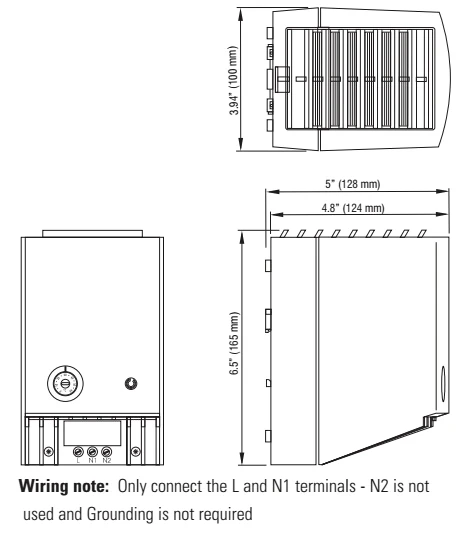

Dimension
