CSF 060
Winston
Features
Low surface temperature
Compact size
Wide voltage range
Double insulated protection
DIN rail mountable
The CS 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes nat-
ural convection which results in a circulating current of warm air. The surface temperatures on
the accessible side surfaces of the housing are minimized as a result of the heater design. The
CS 060 is also available in a version with a plug-in thermostat requiring no additional wiring
(CSF 060).
Technical data
| Model | CSF 060 PTC Heater |
| Operating voltage* | AC/DC 120-240 V (min. 110 V, max. 265 V) |
| Heating capacity | see table |
| Heating element | PTC resistor - temperature limiting |
| Surface temperature | < 176 °F (80 °C), except upper protective grill |
| Connection | 4-pole terminal AWG 14 max (2.5 mm²), torque 0.8 Nm max. |
| Housing | plastic, UL 94V-0, black |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Mounting position | vertical |
| Operating / Storage temperature | -40 to +158 °F (-40 to +70 °C) / -49 to +158 °F (-45 to +70 °C) |
| Protection class | II (double insulated) |
| Protection type | IP20 |
| Approvals | VDE |
*Operating with voltages below AC/DC 140 V reduces heating performance by approx. 10%.
| Part No. | Heating capacity1) | Max. curr- ent(inrush) | Air outlet temperature2) | Switch-off temperature3) | Switch-on temperature3) | Dimensions | Weight (approx.) |
| 06001.0-00 | 50 W | 2.5 A | 187 °F (86 °C) | 59 °F (15 °C) | 41 °F (5 °C) | 5.24 x 2.36 x 3.54” (133 x 60 x 90 mm) | 10.8 oz. (305 g) |
| 06002.0-00 | 50 W | 2.5 A | 187 °F (86 °C) | 77 °F (25 °C) | 59 °F (15 °C) | 5.24 x 2.36 x 3.54” (133 x 60 x 90 mm) | 10.8 oz. (305 g) |
| 06011.0-00 | 100 W | 4.5 A | 248 °F (120 °C) | 59 °F (15 °C) | 41 °F (5 °C) | 5.24 x 2.36 x 3.54” (133 x 60 x 90 mm) | 11.2 oz. (320 g) |
| 06012.0-00 | 100 W | 4.5 A | 248 °F (120 °C) | 77 °F (25 °C) | 59 °F (15 °C) | 5.24 x 2.36 x 3.54” (133 x 60 x 90 mm) | 11.2 oz. (320 g) |
| 06021.0-00 | 150 W | 8.0 A | 293 °F (145 °C) | 59 °F (15 °C) | 41 °F (5 °C) | 6.8 x 2.36 x 3.54” (173 x 60 x 90 mm) | 15.9 oz. (450 g) |
| 06022.0-00 | 150 W | 8.0 A | 293 °F (145 °C) | 77 °F (25 °C) | 59 °F (15 °C) | 6.8 x 2.36 x 3.54” (173 x 60 x 90 mm) | 15.9 oz. (450 g) |

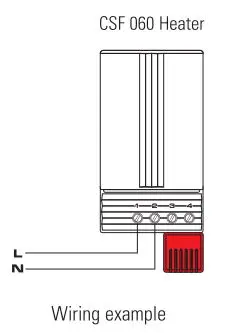

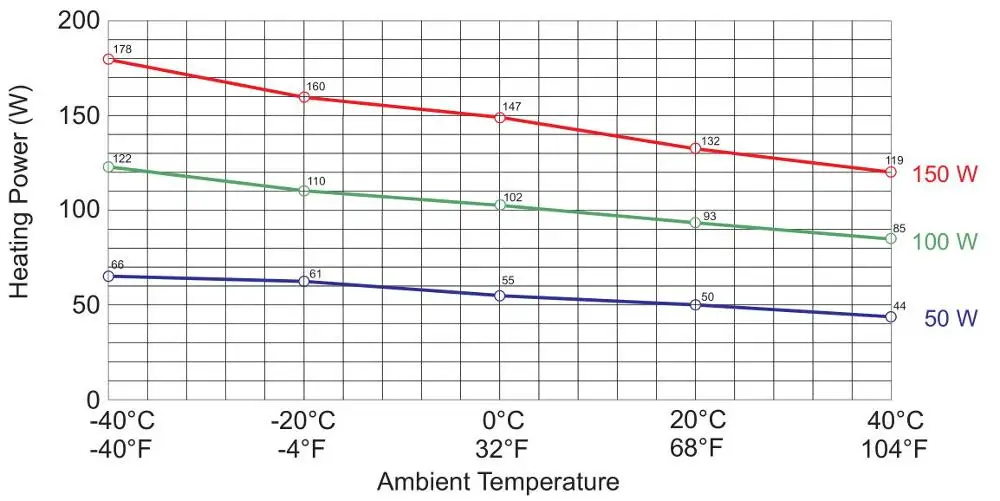

1) see Heating capacity / Ambient temperature diagram
2) measured 2” (50 mm) above protective grill
3) tolerance of ± 5K
