Winston LRS- 200W 200w single output switch model power supply

Availability:
Quantity:
  • LRS-200W

  • Winston






MODEL LRS-200-5 LRS-200-12 LRS-200-15 LRS-200-24 LRS-200-36 LRS-200-48
DC Output Voltage 5V 12V 15V 24V 36V 48V
Rated Current 40A 17A 14A 8.8A 5.9A 4.4A
Current Range 0~40A 0~17A 0~14A 0~8.8A 0~5.9A 0~4.4A
Rated Power 200W 204W 210W 211.2W 212.4W 211.2W
Ripple &Noise 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p
Voltange ADJ. Range 4.5~5.5V 10.2~13.8V 13.5~18V 21.6~28.8V 32.4~39.6V 43.2~52.8V
Voltage Tolerance  ±3.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation  ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±2.0% ±1% ±0.5% ±0.5% ±0.5% ±0.5%
Setup, Rise Time 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load
Hold Up Time 16ms/230VAC 12ms/115VAC at full load
Voltage Range 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
Frequency Range Input 47 ~ 63Hz
Efficiency 87% 87.5% 88% 89.5% 89.5% 90%
AC Current 4A/115VAC 2.2A/230VAC
Inrush Current CCOLD START 60A/115VAC  60A/230VAC
Input Leakage Current <2mA/ 240VAC
Over Load 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75~6.75V 13.8~16.2V 18~21V 28.8~33.6V 41.4~48.6V 55.2~64.8V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Working Temp. -20 ~ +70ºC (Refer to "Derating Curve")
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp.,Humidity 40 ~ +85 , 10 ~ 95% RH
Temp.Coefficien ±0.03%/ºC (0~50ºC)
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety Standards EN60950-1, EN60335-1, EN61558-1 2 16 approved
Withstand voltage I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/70% RH
MTBF 347.5K hrs min. MIL-HDBK-217F (25ºC)
Dimension 215*115*30mm (L*W*H)
Packing 0.66kg

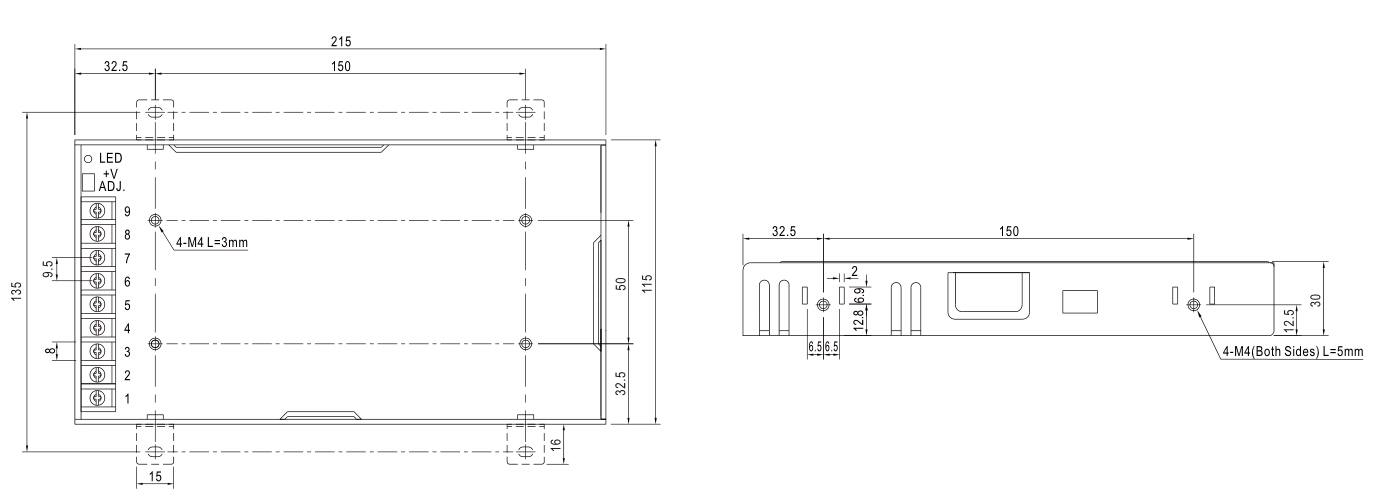

Dimension:


Product Description

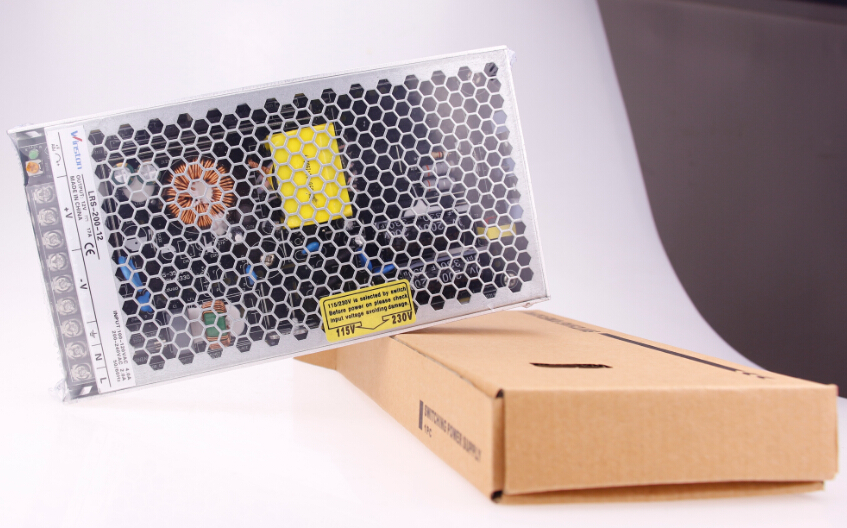

LRS-200 p.jpg
