Winston LRS- 150W 150w 5v to 48v dc light weight smps

Availability:
Quantity:
  • LRS-150W

  • Winston






MODEL LRS-150-5 LRS-150-12 LRS-150-15 LRS-150-24 LRS-150-36 LRS-150-48
OUTPUT DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 22A 12.5A 10A 6.5A 4.3A 3.3A
Current Range 0~22A 0~12.5A 0~10A 0~6.5A 0~4.3A 0~3.3A
Rated Power 110W 150W 150W 156W 154.8W 158.4W
Ripple &Noise 100mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p
Voltange ADJ. Range 4.5~5.5V 10.2~13.8V 13.5~18V 21.6~28.8V 32.4~39.6V 43.2~52.8V
Voltage Tolerance ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Setup, Rise Time 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
Hold Up Time 16ms/230VAC 12ms/115VAC at full load
INPUT Voltage Range 85 ~ 264VAC 120 ~ 373VDC
Frequency Range 47 ~ 63Hz
Efficiency 85% 87.5% 89% 89% 89% 90%
AC Current 2.8A/115VAC 1.6A/230VAC
Inrush Current CCOLD START 60A/230VAC
Leakage Current <0.75mA/ 240VAC
Protection Over Load 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 5.75~6.75V 13.8~16.2V 18.75~21.75V 28.8~33.6V 41.4~48.6V 55.2~64.8V
Protection type : Shut down o/p voltage, re-power on to recover
Environment Working Temp. -20 ~ +70ºC (Refer to "Derating Curve")
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp.,Humidity 40 ~ +85 , 10 ~ 95% RH
Temp.Coefficien ±0.03%/ºC (0~50ºC)
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety&EMC Safety Standards EN60950-1, EN60335-1, EN61558-1 2 16 approved
Withstand voltage I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/70% RH
Others MTBF 648.6K hrs min. MIL-HDBK-217F (25ºC)
Dimension 159*97*30mm (L*W*H)
Packing 0.48kg

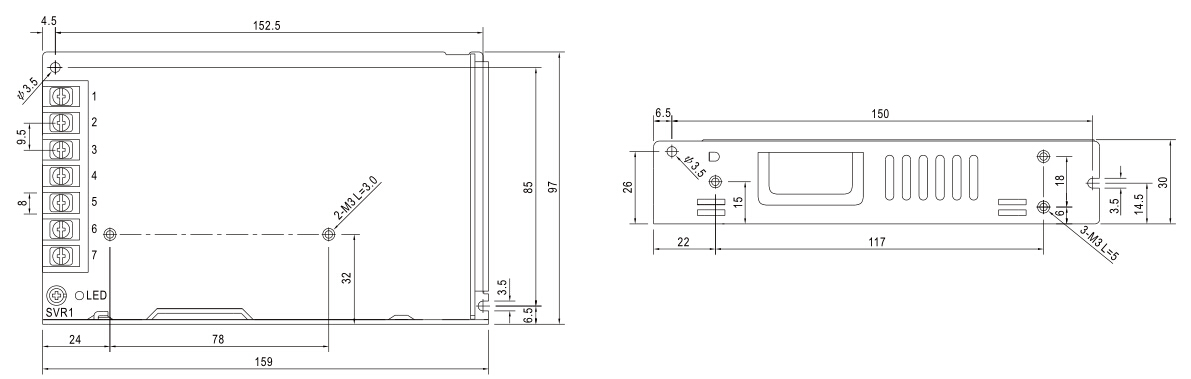

Dimension:
