LRS-500
Winston
• Single output: power 500W
• Input voltage: 95~132VAC/180~264VAC by switch
• Single output: power 500W
• Input voltage: 95~132VAC/180~264VAC by switch
Model | LRS-500-12 | LRS-500-24 | LRS-500-36 | LRS-500-48 |
DC output voltage, current | 12V 0~40A | 24V 0~20A | 36V 0~14A | 48V 0~10A |
Wave and noise | 150mVp-p | 180mVp-p | 240mVp-p | 240mVp-p |
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efliciency | 82% | 85% | 86% | 87% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
Input voltage range | 95~132VAC/180~264VACby switch 254~370VDC 47~63Hz | |||
Impact current | Cold start current 35A/115VAC 65A/230VAC | |||
Overload protection | 105%~ 150% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed | |||
Over voltage protection | 115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
Over temperature protection | Turn off the output and restore normal output after the temperature returns to normal | |||
Setup, rise, hold up time | 1500ms, 30ms/230VAC 2000ms, 50ms/115VAC at full load | |||
Withstand vollage | I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH | |||
Working temperature | -10℃~+50 ℃ | |||

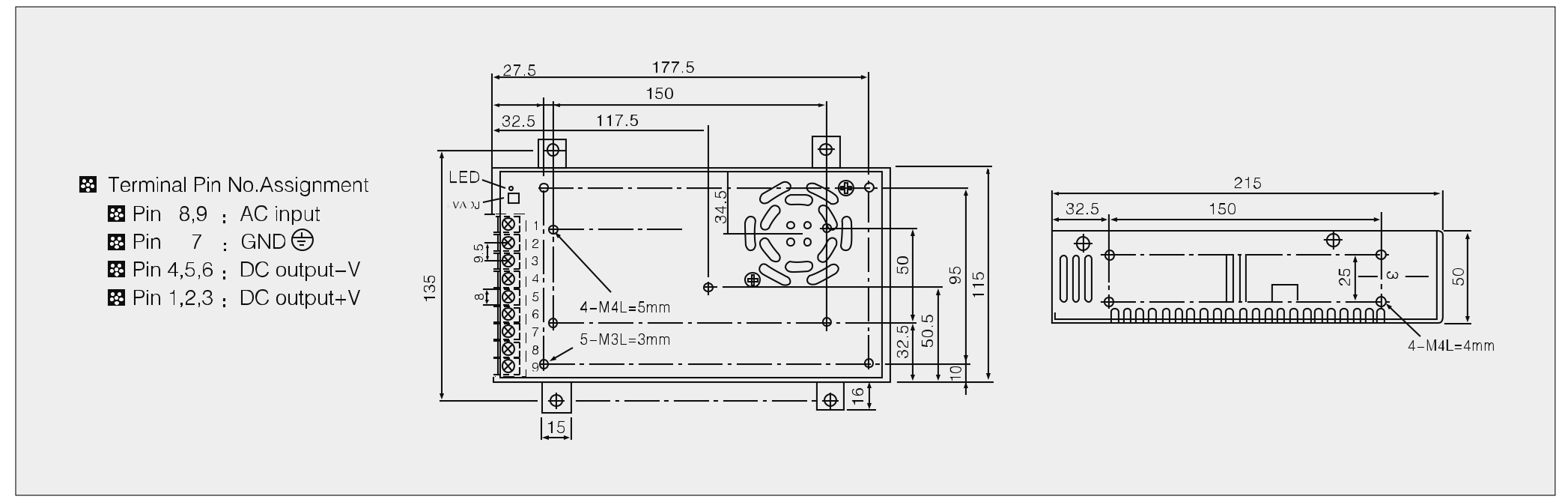

Dimension | 215×115×50mm | |||
Weight | 1kg | |||
Packing | 45.5×31.5×26CM/20PCS/20kg | |||
Model | LRS-500-12 | LRS-500-24 | LRS-500-36 | LRS-500-48 |
DC output voltage, current | 12V 0~40A | 24V 0~20A | 36V 0~14A | 48V 0~10A |
Wave and noise | 150mVp-p | 180mVp-p | 240mVp-p | 240mVp-p |
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
Efliciency | 82% | 85% | 86% | 87% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
Input voltage range | 95~132VAC/180~264VACby switch 254~370VDC 47~63Hz | |||
Impact current | Cold start current 35A/115VAC 65A/230VAC | |||
Overload protection | 105%~ 150% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed | |||
Over voltage protection | 115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
Over temperature protection | Turn off the output and restore normal output after the temperature returns to normal | |||
Setup, rise, hold up time | 1500ms, 30ms/230VAC 2000ms, 50ms/115VAC at full load | |||
Withstand vollage | I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH | |||
Working temperature | -10℃~+50 ℃ | |||
Dimension | 215×115×50mm | |||
Weight | 1kg | |||
Packing | 45.5×31.5×26CM/20PCS/20kg | |||
